TP-Link Tapo C520WS User Manual

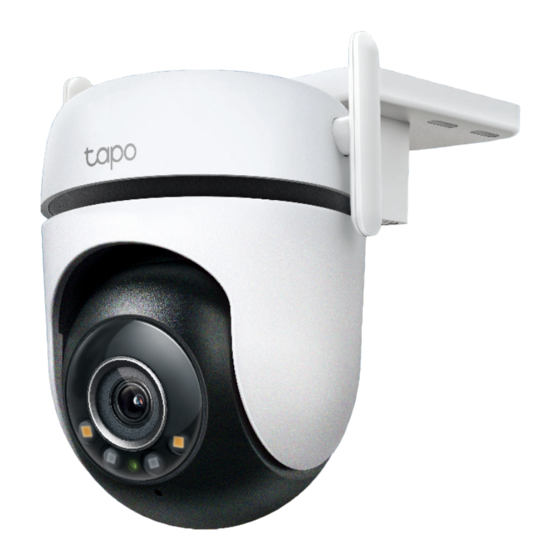

Outdoor pan/tilt security wi-fi camera
Hide thumbs Also See for Tapo C520WS:

Advertisement

Table of Contents

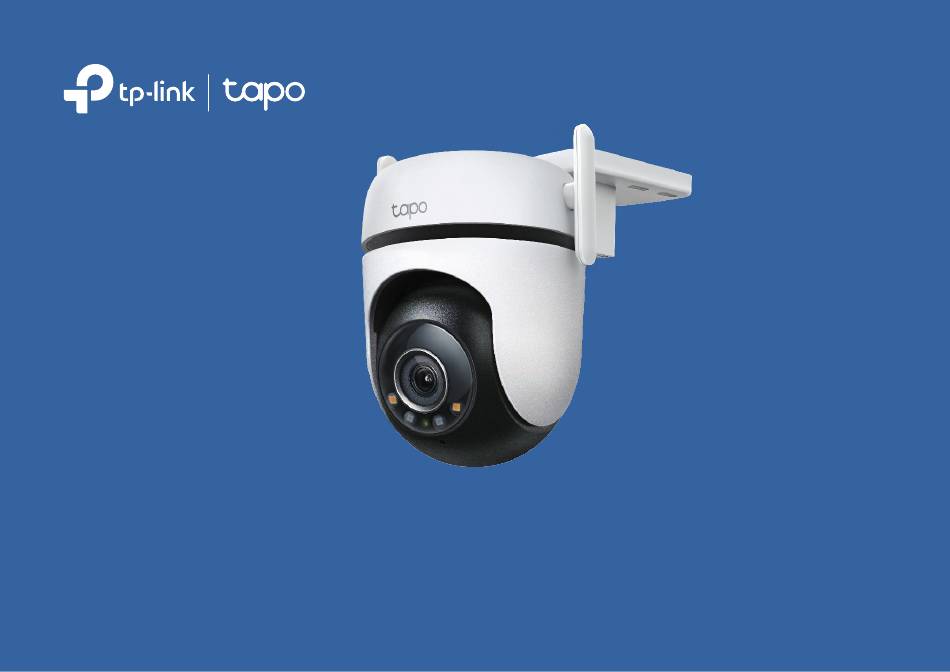

User Guide
Outdoor Pan/Tilt Security Wi-Fi Camera
©2023 TP-Link 1910013392 REV1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tapo C520WS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TP-Link Tapo C520WS

Summary of Contents for TP-Link Tapo C520WS

  • Page 1 User Guide Outdoor Pan/Tilt Security Wi-Fi Camera ©2023 TP-Link 1910013392 REV1.0.0...

  • Page 2: Table Of Contents

    Contents About This Guide ··········································································· 1 Introduction ······················································································ 2 Appearance ······················································································ 3 Set Up Your Camera ····································································· 5 Set Up Using Amazon Frustration-Free Setup ·············· 7 Install a microSD Card ······························································ 11 Mount Your Camera··································································· 12 Install Waterproof Items ·························································· 15 How to Reset Your Camera ···················································...

  • Page 3: About This Guide

    About This Guide This guide provides a brief introduction to the Outdoor Pan/Tilt Security Wi-Fi Camera and the Tapo app, as well as regulatory information. Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo Camera experience.

  • Page 4: Introduction

    Day or night, rain or shine, the Tapo camera protects what you love most. • 2K QHD, Starlight Color Night Vision – Equipped with an F1.6 large-aperture lens and starlight sensor, Tapo C520WS enhances your security byrevealing highly-detailed and bright-color images even under low-light conditions.

  • Page 5: Appearance

    Appearance microSD Lens Reset Speaker Loosen the screws. While the camera is powered on, use a pin to press and hold the White Light LEDs Reset button for at least 5 seconds until the Ethernet Port System LED blinks red. The camera will Used to connect to a network device reset and reboot.
  • Page 6 System LED Indication Solid red Starting up Blinking red and green Ready for setup (for Wi-Fi setup) Blinking red slowly Connecting to Wi-Fi (for Wi-Fi setup) Connected to Wi-Fi Solid amber or wired network Solid green Connected to the cloud Blinking red quickly Camera resetting Blinking green quickly...

  • Page 7: Set Up Your Camera

    Step 3. Add Your Camera Get the Tapo app from the App Store or Open the app, and log in with your TP-Link ID. Tap the button in the app and select your Google Play, or by scanning the QR code If you don't have an account, create one first.
  • Page 8 Step 4. Configure Camera Follow app instructions to set up your camera via wired or wireless connection (for setup only), and add it to your home network. After setup, you can use your camera via wired connection or wirelessly. Note: For Wireless setup, if your camera is connected to your router via an Ethernet cable, please unplug the cable first.

  • Page 9: Set Up Using Amazon Frustration-Free Setup

    Set Up Using Amazon Frustration-Free Setup What is Amazon Frustration-Free Setup? Amazon Frustration-Free Setup can help connect and set up Tapo smart devices in fewer steps, without having to remember and re-enter your Wi-Fi password on each device. To use this feature, confirm the following: ●...
  • Page 10 How to use Amazon Frustration-Free Setup with Tapo devices 1. Open the Amazon Alexa app. Then tap More and select Skills & 2. Enter Tapo in the search bar and choose Tapo. Games.
  • Page 11 3. Tap the ENABLE TO USE button. 4. Log in with your TP-Link ID that has bound to your Tapo device, and tap Authorize. After authorized successfully, the message Tapo has been successfully linked will come up.
  • Page 12 5. Plug in your Tapo device and the setup will complete automatically in two minutes. For setting up more Tapo devices, just plug in and enjoy! Done! If this device displays on the Home page in the Tapo app, it indicates this device has been successfully associated with your Amazon account and joined your Wi-Fi network automatically.

  • Page 13: Install A Microsd Card

    Install a microSD Card Follow the steps below to install the microSD card for local recording. You can go to Camera Settings > microSD Card in the Tapo app to check the card status or format your card. Manually rotate the camera downwards. Loosen the screws on the Identify the direction of the microSD card and carefully insert the card panel and remove the cover.

  • Page 14: Mount Your Camera

    Mount Your Camera When you finish adding your camera in the Tapo app, you can mount it on a wall or ceiling with the provided mounting template and screws. You can also mount it on the pole with mounting loops. Follow the steps below to mount your new camera. Note: The camera is not waterproof when set on a table or shelf.
  • Page 15 Option 2: Overhang Mount 3. Mount the Camera 1. Affix the Camera and Bracket Insert four mounting anchors into Route the camera power cord and the holes, then use the mounting Ethernet cable through the screws to affix the camera and opening of the bracket.
  • Page 16 Option 3: Pole Mount 1. Affix the Camera and Bracket 3. Power Up the Camera Route the camera power cord and Connect the camera to a power Ethernet cable through the outlet using the provided power opening of the bracket. Use two adapter.

  • Page 17: Install Waterproof Items

    Install Waterproof Items When the camera is installed outdoors, please install waterproof items to waterproof your camera. Make sure each part is securely attached and the water-proofing rings are flush to keep out water. Follow the steps below to install waterproof items. Install Waterproof Seal for Power Connectors Connect the camera to a power outlet using the provided power adapter.
  • Page 18 When the Ethernet port connects to a network device: Fix Nut Waterproof O-ring Waterproof Network Ring Jacket Interface 1. Route the network cable through the following components in order: fix nut, waterproof ring, and then the waterproof jacket. 2. Insert the waterproof ring into the waterproof jacket. 3.

  • Page 19: How To Reset Your Camera

    How to Reset Your Camera Follow the steps below to reset your camera via the Reset button. You can also go to Camera Settings in the Tapo app and tap Remove Device at the bottom to factory reset your camera. Manually rotate the camera downwards.

  • Page 20: Authentication

    Authentication FCC compliance information statement Product Name: Outdoor Pan/Tilt Security Wi-Fi Camera Model Number: Tapo C520WS Component Name Model I. T .E. Power Supply T090085-2B1 Responsible Party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com...
  • Page 21 We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
  • Page 22 We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
  • Page 23 UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tapo.com/support/ukca/.
  • Page 24 Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
  • Page 25 安全諮詢及注意事項 • 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 • 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 • 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 • 電源供應器应使用在环境温度低於或等於40℃的室內。 限用物質含有情況標示聲明書 設備名稱：Outdoor Pan/Tilt Security Wi-Fi Camera 型號（型式）：Tapo C520WS Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 多溴二苯醚 鉛 汞 鎘...
  • Page 26 外殼 ○ ○ ○ ○ ○ ○ 電源供應器 − ○ ○ ○ ○ ○ 其他及其 − ○ ○ ○ ○ ○ 配件 備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值 Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.
  • Page 27 Safety Information • Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use damaged charger or USB cable to charge the device. •...
  • Page 28 Explanation of the symbols on the product label Symbol Explanation Alternating current DC voltage Caution Operator’s manual Class II equipment Polarity of output terminals Energy efficiency Marking Indoor use only RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
