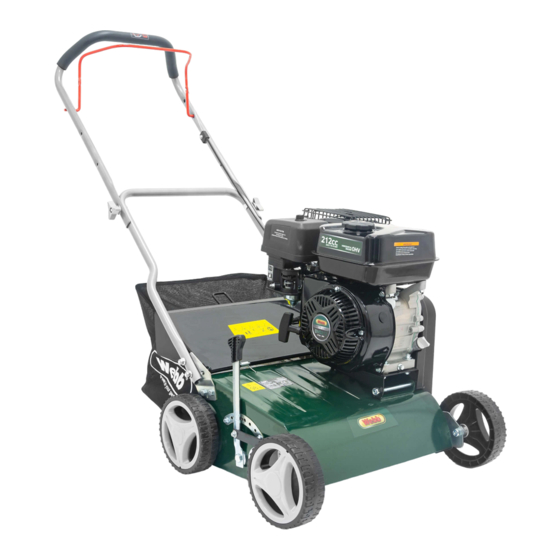

40cm Petrol Scarifier & Aerator

WEPS400

1938317002

www.webbgardenpower.co.uk

en - Original Instructions

ASSEMBLY REQUIRED

Minimum Two Persons

Save these instructions

Sales & Support: 01793 333212

Before use please read & understand this manual; paying particular attention to the safety instructions before use.

Incorrect use of the product could put the operator or machine in danger.

Whilst every eﬀ ort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvement

determines the right to make modiﬁ cations without prior warning.

Images are used for illustration purposes only.

Need help?

Do you have a question about the WEPS400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Webb WEPS400

Page 1 40cm Petrol Scarifier & Aerator WEPS400 1938317002 www.webbgardenpower.co.uk en - Original Instructions ASSEMBLY REQUIRED Minimum Two Persons Save these instructions Sales & Support: 01793 333212 Before use please read & understand this manual; paying particular attention to the safety instructions before use.
Page 2 INSTRUCTION MANUAL 28 July 22 Copyright Notice Copyright © Handy Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy.
Page 3 CONTENTS INTENDED USE SAFETY INSTRUCTIONS SPECIFICATIONS KNOW YOUR MACHINE ASSEMBLY PRE-OPERATION OPERATION MAINTENANCE, CLEANING & STORAGE TROUBLE SHOOTING PARTS DIAGRAM & LIST DECLARATION OF CONFORMITY WARRANTY INTENDED USE The basic version of the equipment is a walk behind petrol scarifier/aerator intended for private use, i.e. for use in home and gardening environments.
Page 4 INSTRUCTION MANUAL SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. Read &...
Page 5 GENERAL SAFETY RULES WARNING Before you put the machine into operation, you must read this instruction manual. When using this machine, observe the following safety instructions to exclude the risk of personal injury or material damage. Please also observe the special safety instructions in the respective chapters. Where applicable, follow the legal directives or regulations for the prevention of accidents in relation to the use of this machine.
Page 6 INSTRUCTION MANUAL 16. Do not operate the scarifier/aerator while under the influence of alcohol or drugs. 17. The OPC/Brake lever is a safety device. Never attempt to bypass its operation. Doing so makes the safety device inoperative and may result in injury through contact with the rotating tines. The control lever must operate easily in both directions and automatically return to the disengaged position when released.
Page 7 SERVICE Safe Handling of Petrol: 1. To avoid personal injury or property damage use extreme care in handling petrol. Petrol is extremely flammable, and the vapors are explosive. Serious personal injury can occur when petrol is spilled on yourself or your clothes, which can ignite. Wash your skin and change clothes immediately. 2.
Page 8 INSTRUCTION MANUAL PERSONAL SAFETY 1. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. 2.
Page 9 SPECIFICATIONS Model No. WEPS400 Product No. 1938317002 Working Width 400 mm Working Depth 8 settings (5 to -15 mm) Collector Capacity 45 Litre Scarifier Blades (Total) 18 pcs Scarifier Blade Diameter 166 mm Aerator Tines (Total) 28 pcs Aerator Tines Diameter...
Page 10 INSTRUCTION MANUAL KNOW YOUR MACHINE 1. OPC/Brake Lever 2. Upper Handle 3. Lower Handle 4. Height Adjuster 5. Rear Flap 6. 45L Collector * Image may vary from actual machine The lawn scarifier/aerator is pushed by hand over the area of grass to be cut. The cutters are driven by a petrol engine.
Page 11 ASSEMBLY Remove the machine and contents from the carton. Be sure the carton is empty before discarding. If you require assistance with regards to the contents or operation of the machine, please contact us: Tel: 01793 333212 Email: customerservice@webbgardenpower.co.uk Opening hours weekdays: February to October 8:00am - 5:00pm November to January 8:30am - 5:00pm (Closed Bank Holidays)
Page 12 INSTRUCTION MANUAL LOWER HANDLE 1. Attach the lower handle to the handle brackets affixed to the deck of the scarifier/aerator. 2. The lower handle sits on the outside of the handle brackets. Line up the fixing holes of the lower handle with those on the handle brackets.
Page 13 CABLE CLIP 1. Secure the operating cable of the machine to the handle assembly, by placing the cable into the cable clip and then place the cable clip onto the handle assembly COLLECTOR Important: Before you attach the collector, please ensure that the engine is switched off and the blade/tines are not rotating.
Page 14 INSTRUCTION MANUAL PRE-OPERATION FUEL & OIL WARNING YOUR MACHINE IS SUPPLIED WITHOUT ENGINE OIL OR UNLEADED PETROL Operating the engine with insufficient oil can have catastrophic consequences. Any failure caused by insufficient oil, will not be covered by the manufacturer’s warranty. Read instructions carefully.
Page 15 FUELING THE MACHINE Place the machine onto a solid flat surface, ensuring the engine is not running. Let the engine rest for a minimum of two minutes. Fill the fuel tank outdoors or in well-ventilated areas. Unscrew the fuel cap slowly and fill the fuel tank with clean, less than 30 days old unleaded petrol with an Octane rating of 87 (91 RON) or higher.
Page 16 INSTRUCTION MANUAL OPERATION IMPORTANT: The engine does not come with oil in it. Therefore, be sure to add oil before starting the engine. The oil level in the engine must be checked each time before operating. IMPORTANT: When the engine OPC/brake lever is released, it must return to its initial position and the engine must stop. If this does not happen, do not use the equipment again.
Page 17 STARTING THE ENGINE - WARM Place height adjuster into its highest position. Move the fuel tap to the open position (B). Move the Choke lever to the OPEN position. Pull the OPC/brake lever towards the top handle. Grab the recoil starter handle and pull lightly until resistance is felt, then pull rapidly. The blades/tines are now rotating.
Page 18 The equipment can be assembled with the Dethatching (blades) or Scarifying (Spring Tines) cylinders. Only replace the cylinder with an original Webb product, to ensure top performance & safety. To change the cylinder, proceed as follows. We recommend this is undertaken by a minimum of two adults and that suitable hard‐wearing gloves are worn at all times.
Page 19 with the mounting covers on the inside of the deck and bearing cover & mounting block on the outside. Ensure the fixing holes of the mounting cover and bearing cover on the right side of the machine are aligned with the fixing holes of the deck. Assemble with the three fixing screws (Fig. 7) 10.
Page 20 INSTRUCTION MANUAL Fig. 7 Fig. 8 Fig. 9 Fig. 10...
Page 21 MAINTENANCE, CLEANING & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. Turn off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated.
Page 22 INSTRUCTION MANUAL Changing the oil 1. Change the engine oil every year before the start of the season when the engine is warm. 2. Use only recommended engine oil. 3. Place a suitable oil drip tray beneath the oil drain screw. 4.
Page 23 CLEANING Engine Care Clean the engine regularly with a cloth or brush. Keep the top of the engine clean to permit proper air circulation. Remove all grass, dirt and debris from the exhaust (muffler) area. CAUTION Do not use a water hose or pressure washer to clean the engine. Water can damage the engine or contaminate the fuel system.
Page 24 INSTRUCTION MANUAL NOTE: Storing or transporting with the spark plug down will result in hard starting and/or engine smoking. • Store in a dry, clean and frost-protected place, out of reach of unauthorised persons. • When removing unit from storage, only use fresh petrol. Perform operation checks (see maintenance schedule) before starting engine.
Page 25 TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES REMEDIAL ACTION Engine does not start Engine does not start Move throttle choke to correct position Fuel tank is empty. Fill tank with fuel: refer to ENGINE OWNERS MANUAL. Spark plug loose. Tighten spark plug. Spark plug wire loose or Install spark plug wire on spark disconnected from plug.
Page 26 INSTRUCTION MANUAL PARTS DIAGRAM - WEPS400 1938317002 - MACHINE PARTS LIST -...
Page 27 PARTS LIST - WEPS400 1938317002 - MACHINE ARTS LIST - WEPS400 1938317002 - MACHINE Item No. Webb Part No. Webb Description Item No. Webb Part No. Webb Description Item No. Webb Part No. Webb Description Item No. Webb Part No.
Page 28 INSTRUCTION MANUAL PARTS DIAGRAM – DH/DVO212 ENGINE 1938298001 PARTS LIST – D...
Page 29 Item No Webb Part No. Webb Description WE200-242003 Camshaft Assembly WE156-240905 Dowel Pin PARTS LIST – DH/DVO212 ENGINE 1938298001 TS LIST – DH/DVO212 ENGINE 1938298001 M-M8x30MM M8x30 Bolt Item No Webb Part No. Webb Description Item No Webb Part No.
Page 30 INSTRUCTION MANUAL EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Petrol Scarifier/Aerator Model(s): WEPS400 Product No.: 1938317002 Type/Serial No. As per rating label on machine Engine Displacement: 212 cm Engine Power: 4.3 kW...
Page 31 NOTES...
Page 32 INSTRUCTION MANUAL NOTES...
Page 33 NOTES...
Page 34 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the conditional manufacturer domestic warranty*. Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
Page 35 Period of Warranty Webb (excludes Dynamic, Heritage, Legacy), a) 2 years from the original date of sale to the ﬁ rst domestic user. b) 90 days from the original date of sale to the professional/commercial user.
Page 36 It is the owner’s responsibility to ensure that their Webb machine is maintained at speciﬁ c intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
Page 37 Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
Page 38 Service Record INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date...
Page 39 Email From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, oﬀ ers or just opinions, which may be used for marketing, research or analysis purposes.
Page 40 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
