Dorel Home Products MAINSTAYS 4088039WE Manual

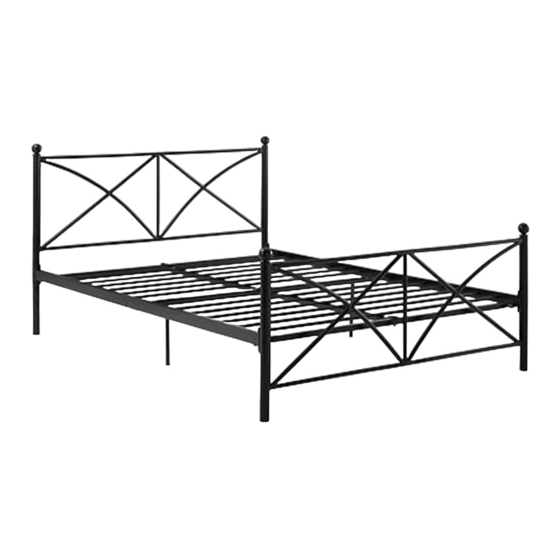

Mainstays monaco metal bed queen black
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Weight Limit: 500 Lb / 227 Kg
K.W. - 2016/4/26
2014 Dorel Home Products All Rights Reserved
Mainstays Monaco Metal Bed
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4088039WE
Queen
Lot Number
B344088039WE00 - 241637-C
Black
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAINSTAYS 4088039WE and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Home Products MAINSTAYS 4088039WE

Summary of Contents for Dorel Home Products MAINSTAYS 4088039WE

  • Page 1 Visit www.dhpfurniture.com/eng/support-home or call Toll-Free 1-800-267-1739 Date of Purchase Lot Number THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B344088039WE00 - 241637-C K.W. - 2016/4/26 2014 Dorel Home Products All Rights Reserved...
  • Page 2 Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
  • Page 3 B344088039WE00...
  • Page 4 Parts Replacement Parts, Visit www.dhpfurniture.com/eng/support-home All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Headboard Post 01 Post 02 Post 04 Ball Post 03 Check Box to identify the parts and ensure that T937960 T937840...

  • Page 5: Hardware Pack

    Hardware Pack Hardware Pack #: T4088029WE-00 1/4" 1/4" x 11/16" 5/16" X 3/4" X 12 1/4" X 7/8" X 16 X 12 1/4" X 1 9/16" Hardware Note: Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Step 1 Attach (A1) to (A) & (B) with BOLTS 4; Attach (A1) to (C) & (D) with BOLTS 4. The orientation of part (A1) needs to be assembled as illustrated. The orientation of part (A1) needs to be assembled as illustrated. B344088039WE00...
  • Page 7 Step 2 Insert (F) X 2 into (E) X 2 with BOLTS 4. B344088039WE00...
  • Page 8 Step 3 3.1 Attach (H) X 2 to sub-assembly (E & F) x 2 from STEP 2 with BOLTS 2. 3.2 Attach (G) to (E) X 2 with BOLTS 2. B344088039WE00...
  • Page 9 Step 4 This bed offers you 2 options for the height of the bed foundation. From STEP 4 to STEP 9 will show you how to assemble the bed foundation in the higher position. If you intend to assemble the bed foundation in the lower position, please start from Step 10.
  • Page 10 Step 5 Attach (E) & (F) to (A), (B) , (C) & D) with Wide side of the slot should BOLTS 3. be facing up ! X 16 B344088039WE00...
  • Page 11 Step 6 6.1 Insert one end of both (I) into the slot on (G) as illustrated. 6.2 Attach the other end of both (I) to (H) with BOLTS 1 and NUTS 5. B344088039WE00...
  • Page 12 Step 7 Attach (M) & (K) to (G) with BOLTS 1 and NUTS 5. B344088039WE00...
  • Page 13 Step 8 8.1 Insert (O1) into (E & F) as illustrated; 8.2 Lock (O1) into place with (Y). B344088039WE00...
  • Page 14 Step 9 Attach (S) x 4 to (A), (B), (C) & (D). B344088039WE00...
  • Page 15 Step 10 From Step 10 to Step 15 will show you how to assemble the bed foundation in the lower position. Attach (L) X 2 to (G) with BOLTS 2. B344088039WE00...
  • Page 16 Step 11 Wide side of the slot should be facing up ! Attach (E) & (F) to (A), (B), (C) & (D) with BOLTS 3. X 16 B344088039WE00...
  • Page 17 Step 12 12.1 Insert one end of both (I) into the slot on (G) as illustrated. 12.2 Attach the other end of both (I) to (H) with BOLTS 1 and NUTS 5. 12.1 12.2 B344088039WE00...
  • Page 18 Step 13 Attach (L) & (K) to (G) with BOLTS 1 and NUTS 5. B344088039WE00...
  • Page 19 Step 14 14.1 Insert (O1) into (E & F) as illustrated; 14.2 Lock (O1) into place with (Y). 14.1 14.2 B344088039WE00...
  • Page 20 Step 15 Attach (S) X 4 to (A) & (B) & (C) & (D). B344088039WE00...

  • Page 21: Helpful Hints

    Helpful Hints Helpful Hints Weight Limit: 500 Lb / 227 Kg Move your new furniture carefully, with two people lifting and carrying the unit to its new location. Your DHP furniture can be disassembled and reassembled to move. Some parts have been pre-assembled for this item.
  • Page 22 4088039WE NO LO REGRESE A LA TIENDA ! Si le faltan piezas o las que se incluyen est n da adas, con Mainstays Monaco Metal Bed mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra. Queen Visite www.dhpfurniture.com/spa/support-home Negro o llame gratis al 1-800-267-1739 Fecha de compra...
  • Page 23 Lea antes de comenzar a ensamblar Partes Llame a nuestro n mero gratuito si necesita asistencia. Piezas de reemplazo, visite www.dhpfurniture.com/spa/support-home Trabaje en un rea espaciosa y cerca de donde su producto ser utilizado, preferiblemente sobre una alfombra o utilice el cart n del empaque para proteger su piso y su producto.
  • Page 24 Instrucciones L mites de peso: 500 Lb / 227 Kg Paso 1 Consejos tiles Una la parte (A1) con (A) & (B) con TORNILLOS 4. Una la parte (A1) con (C) & (D) con TORNILLOS 4. Mueva sus muebles nuevos con cuidado, con dos personas levantando y Paso 2 llevando el aparato a su nueva ubicaci n.
