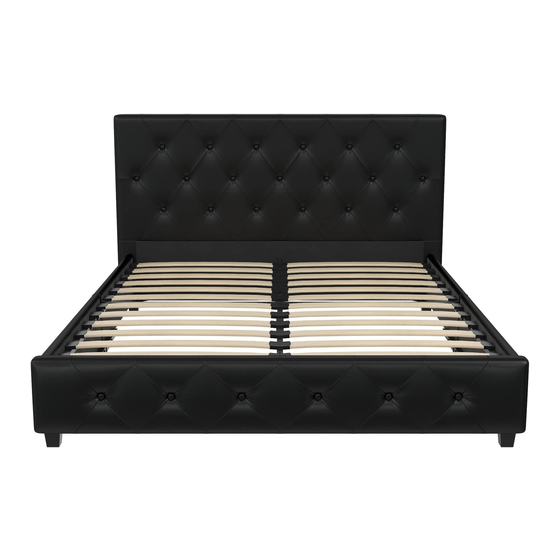

Full upholstered bed
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Weight Limit:400 Lb / 181 Kg
KT - 2021/6/12
2021 Dorel Home Products All Rights Reserved
4027239 (Brown Faux Leather) 4027139 (White Faux Leather)
4026009 (Black Faux Leather) 4582329 (Camel Faux Leather)
Thank you for purchasing from DHP!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4582429 (Gray Faux Leather)
Upholstered Bed
Lot Number
(TAKEN FROM CARTON)
B34402723900-KT
Full
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4026009 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel Home Products 4026009

Summary of Contents for Dorel Home Products 4026009

  • Page 1 4027239 (Brown Faux Leather) 4027139 (White Faux Leather) 4026009 (Black Faux Leather) 4582329 (Camel Faux Leather) 4582429 (Gray Faux Leather) Upholstered Bed Full Thank you for purchasing from DHP! Weight Limit:400 Lb / 181 Kg Questions, concerns, missing parts? CONTACT OUR CUSTOMER SERVICE DEPARTMENT BEFORE RETURNING PRODUCT TO THE RETAILER.

  • Page 2: Limited 1-Year Warranty

    Limited 1 year Warranty Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product.
  • Page 3 PARTS...

  • Page 4: Parts List

    Center Rail Center Rail 2 PCS 4 PCS 2 PCS 2 PCS 1 PC PART NUMBERS 4027239 4027139 4026009 4582329 4582429 PART Each part has a unique part number. (Brown Faux (White Faux (Black Faux (Camel Faux (Gray Faux Please reference the appropriate part...
  • Page 5 Double Slat Cap Bracket 2 PCS 24 PCS 12 PCS 4 PCS 2 PCS PART NUMBERS 4027239 4027139 4026009 4582329 4582429 PART Each part has a unique part number. (Brown Faux (White Faux (Black Faux (Camel Faux (Gray Faux Please reference the appropriate part...

  • Page 6: Hardware List

    4027239 (Brown Faux Leather) otherwise indicated in the step-by-step instructions. 4027139 (White Faux Leather) 4026009 (Black Faux Leather) HP#:T4107119-00 The screw(s), bolt(s) to be used at each step are 4582329 (Camel Faux Leather)
  • Page 7 Step 1 The slat holes on part F should be facing upward. Attach F and H to C and D with Repeat the same step for remaining parts C, D, F and H. X 16...
  • Page 8 Step 2 The slat holes on part G should be facing upward. Attach G x 2 to previous subassembly C and D with Repeat the same step for remaining parts G. X 12...
  • Page 9 Step 3 Attach S to D and T to C with . Repeat the same step for the other subassembly C and D. X 12...
  • Page 10 Step 4 Stick A1 to the back of A with Velcro as illustrated.
  • Page 11 Step 5 Do not completely tighten the BOLTS, leave half of the Screw into A and into B, leave half thread exposed. of the thread exposed.
  • Page 12 Step 6 Hang sub-assembly C and D on A and B as illustrated, don't completely tighten the bolts until STEP 10 is complete.
  • Page 13 Step 7 Attach N to Z with Repeat the same step for remaining parts N and Z.
  • Page 14 Step 8 8.1 Attach N x 4 to A, B, C and D with 8.2 Attach L x 2 to H x 2 with X 16...
  • Page 15 Step 9 Insert I x 2 and J into M x 2, then fix them with Slat holes on part I and J should be facing upward.
  • Page 16 Step 10 Attach subassembly from previous STEP to A and B with , then properly tighten all the bolts.
  • Page 17 Step 11 Attach K to F x 2 and J with...
  • Page 18 Step 12 12.1 12.1 Insert one side of both P into X as indicated 12.2 Press X into G / F on each side. 12.3 Insert the other free end of both slats P into Y where both P meet, then press Y into I / J.

  • Page 19: Helpful Hints

    CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
  • Page 20 Preguntas, inquietudes, partes que faltan? CONTACTE 4027139 (Imitaci n de cuero Blanco) NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE 4026009 (Imitaci n de cueron Negro) ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. 4582329 (Imitaci n de cuero Camel) Si le faltan piezas o las que se incluyen est n da adas, con mucho 4582429 (Imitaci n de cueron Gris) gusto le enviaremos sus piezas de reemplazo sin cargo extra.
  • Page 21 Tambi n confirme que ha recibido todos los componentes necesarios para el ensamblaje al compararlos con la tabla de piezas indicadas en la secci n en ingl s. PART NUMBERS 4027139 4027139 4026009 4582329 4582429 PART (Imitaci n de (Imitaci n de...
  • Page 22 Instrucciones Paso 1 Una la parte F y H con C y D con los . Repita el paso para las otras partes C, D, F Limites de peso - Cama : 400 Lb / 181 Kg y H. Paso 2 Consejos tiles Una la parte G x 2 con C y D con los .

  • Page 23: Informations Sur La Garantie

    Des questions, des pr occupations ou des pi ces 4027139 (Faux cuir Blanc) manquantes? CONTACTEZ NOTRE SERVICE LA CLIENT LE 4026009 (Faux cuir Noir) AVANT DE RETOURNER LE PRODUIT AU D TAILLANT. 4582329 (Faux cuir Camel) Si des pi ces sont manquantes ou endommag es, nous 4582429 (Faux cuir Gris) exp dierons volontiers vos pi ces de rechange gratuitement.
  • Page 24 (illustrations disponibles dans la section en anglais). LISTE DES PI CES 4027139 4027139 4026009 4582329 4582429 TIQUETTE DESCRIPTION (Faux cuir Brun) (Faux cuir Blanc)

  • Page 25: Conseils Utiles

    Instructions tape 1 Attacher F et H C et D avec . R p tez la m me tape pour les autres C, D, F et Limite de Poids - Lit : 400 Lb / 181 Kg tape 2 Conseils utiles Attacher G C et D avec .
