Specification; How To Connect - Radionode UA10 Quick Start Manual

1.Specification

Dimension H70 * W25 * D13 (mm)
Power 5V(USB Power), 50mW
Sample Interval 1 Second
USB Port USB 2.0 Type A Plug
Temp. Scale ℃ /℉
Operating Temp : -40~80°C
Range Humidity : 5~ 95%RH
2.Contents
Model
UA10-CHS UA10 Device (1EA)
UA11-CTS UA11 Device (1EA)

3.How to Connect

UA10 has Temp/RH sensor inside of the device.
User can connect it to PC via USB extension cable.
UA11 need to attach thermo couple sensor and
then user can connect them to PC directly. USB
extension cable is not included for UA11.
©2014 DEKIST Co., Ltd.

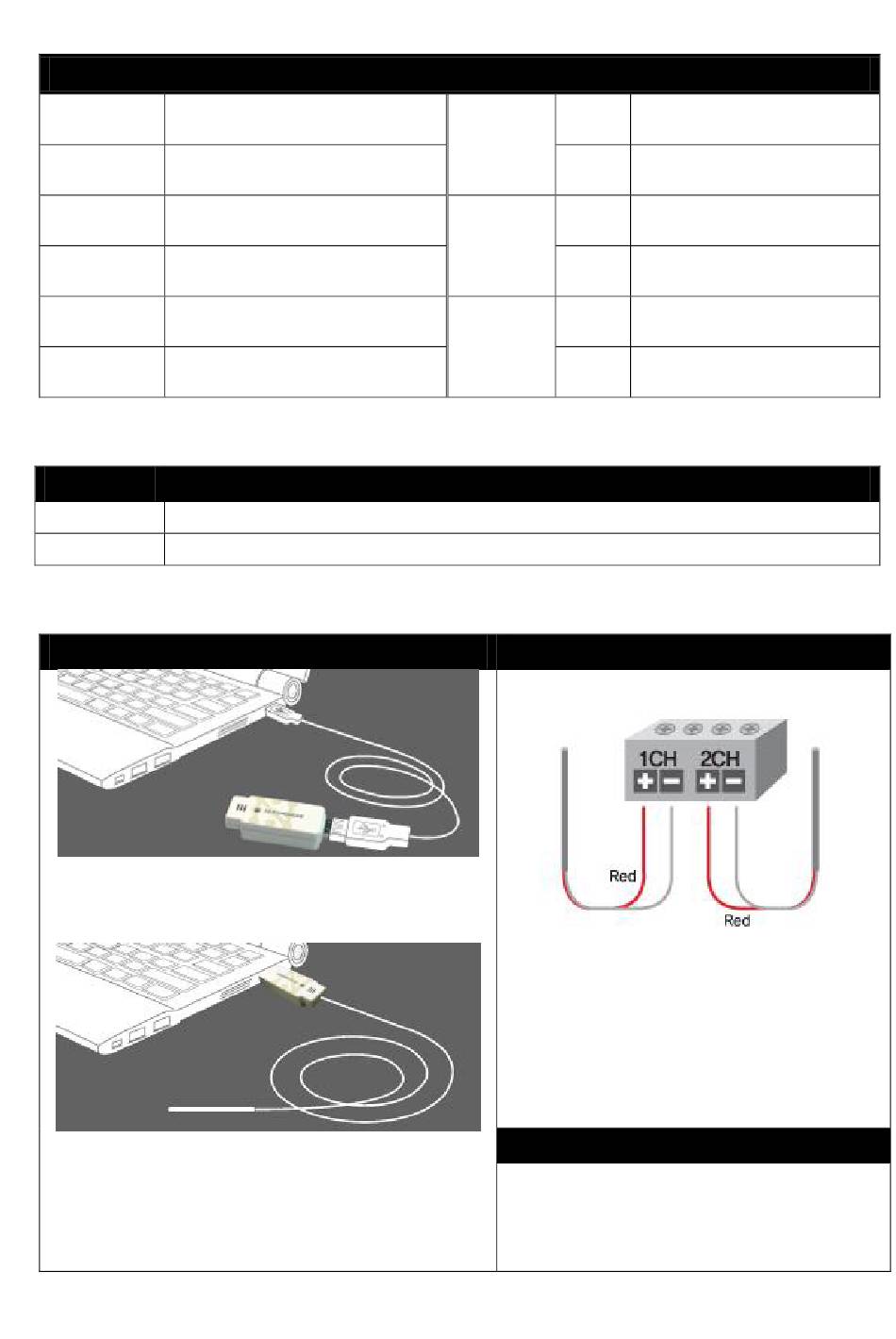

UA10 / UA11Specification
,
,
PC Connection
<UA10 PC Connection>
<UA11 PC Connection>
Measurement
Range
Accuracy
Resolution
Contents in a box
USB Extension Cable(1EA) ,
T Type Thermocouple Sensor(1EA)
There are two terminals in a thermo couple
sensor. Normally red line is PLUS [+].
Please be careful of direction.
★A channel that has no TC sensor will have
abnormal value close to room temperature.
User need to install the tapaculo lite software
in the given CD.USB driver is also in the CD.
Temp: -40℃ ~ 80℃
UA10
Humidity: 5% ~ 95%RH
K Type : 0℃ ~ 1000℃
UA11
T Type : -100℃ ~ 300℃
Temp: ±0.3℃
UA10
Humidity:±2.0%RH
K Type :±0.8℃
UA11
T Type : ±0.8℃
Temp: 0.01℃
UA10
Humidity: 0.04%RH
K Type : 0.05℃
UA11
T Type : 0.07℃
Software (1EA)
,Software CD(1EA)
Thermocouple Connection
Software Installation
Rev. 1.2
