- Page 1 PT100 Temp Sensor Transmitter UA13 User Manual 2021 | Rev. 1.03 Keep this document nearby so that it may be referred to when needed.
-
Page 2: Table Of Contents
About this Manual Intellectual Property Rights Notational Conventions Introduction Exteria Accessories Specifications Connecting External Sensor 3-wired PT100 Monitoring from your Computer Installing Software Connecting Sensor to Tapaculo Lite Starting Tapaculo Lite Monitoring from your Smartphone Installing Tapaculo Mobile Starting Tapaculo Mobile... -
Page 3: About This Manual
About This document contains instructions for usage and installation of the RADIONODE UA13. Product specifications and certain features ® this herein may be subject to change without prior notice. Figures used in this manual are for explanatory purposes only, and may differ Manual from your system depending on installation conditions. -
Page 4: Introduction

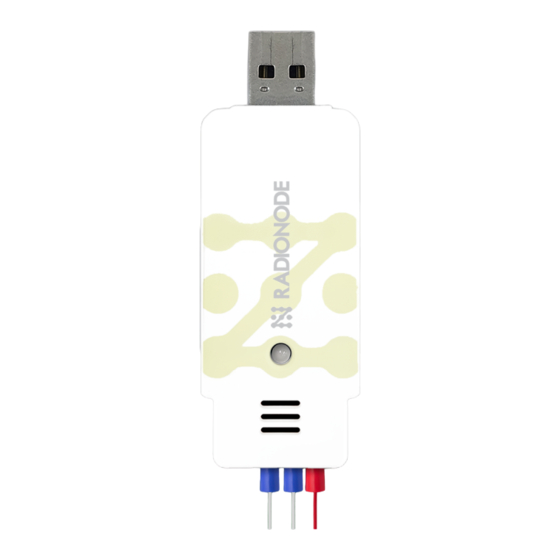

Introduction UA13 is a sensor that measures the temperature with a PT100. Measurements are made by one of two methods: Connect the UA13 sensor to your computer's USB port to use ● the Tapaculo Lite program. ® Connect the UA13 sensor to your smartphone via the USB ●... -
Page 5: Exteria
Exteria ❶ ❷ ❸ USB 2.0 Screw Hole ❹ ❺ Screw for terminal PT100 input terminal... -
Page 6: Accessories
Accessories The UA13 comes with the following accessories: USB Extension Cable PT100 (1EA) Specifications -200 ~ 300 °C (±0.625°C) PT100 m.range *Bundle Sensor m.range : -200 ~ 200°C USB Port USB 2.0 Type A Plug Power 5 V, max 50 mW... -
Page 7: Connecting External Sensor
Turn over UA13, connect external sensor cable from left to right Loose bolt on connector for connecting external sensor cable Red is +, White is - that connect as a picture The UA13 supports 2-wire PT100 temperature sensor. ● The UA13 can measure up to 1CH... -
Page 8: Monitoring From Your Computer
Installing To view sensor measurements on your computer, download and install the following software package from the RADIONODE website Software at www.radionode365.com www.radionode365.com . Tapaculo Lite program (Windows or Mac version) ● USB drivers for Windows for UA products ●... -
Page 9: Starting Tapaculo Lite
Starting A new project must be created first before combining Tapaculo Lite and the sensor. A project may include multiple sensors. Refer to the Tapaculo following procedure when using Tapaculo Lite: Lite A project is a file that stores and manages sensor data. Click Create Project and enter a file name. - Page 10 Click Time Interval and select the measurement interval. Click OK Create Project at the bottom of the menu. The Dashboard menu will open and display measurements of sensors registered in the project, and sensor indicators will blink. Click REC at the lower-left corner to start logging data. The REC button will change to STOP.
-
Page 11: Monitoring From Your Smartphone
Monitoring from your Smartphone This chapter outlines how to use Tapaculo Mobile. For more information on Tapaculo Mobile, see the information provided on the web page below: https://help.radionode365.com/article-categories/ https://help.radionode365.com/article-categories/ tpm-manual tpm-manual Installing Search for "Tapaculo" on Google Play, or click the link below to install Tapaculo Mobile app on your Android smartphone. - Page 12 Swipe right to change sensor settings. Swipe left to view the measurement chart. Tap STORAGE to share your measurement history with others. Measurement history is saved as a CSV file. Date measured/tVOC measurement/carbon dioxide equivalent (or absolute humidity) measurement...
-
Page 13: Customer Service Information
Customer Service Information Manufacturer DEKIST Co., Ltd. provides repair service and replacement parts for RADIONODE products. To request customer service, contact us via Contact one of the following methods. Information Tel: +(82) 1566-4359 ● Fax: (+82) 31-8039-4400 ● E-mail: master@dekist.com ●... -
Page 14: Certifications
Certifications This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection FCC Class A against harmful interference when the equipment is operated in a commercial environment. -
Page 15: Order List
Order List UA Sensor Type Order No. External Sensor Temperature, UA10 Humidity PR-K1-3, PR-K1- High Temperature UA11-K Normal Temperature UA11-T PR-T1-3, PR-T1-15 Cryogenic Temperature UA13 PR-P1-3, PR-P1-15 4-20mA Transmitter UA20-A 4-20mA Transmitter UA20-B 0-1V Transmitter UA20-C tVOC, CO2eq, UA50 Absolute Humidity Oxygen, UA52-O2-25 Atmospheric pressure,... -
