Crystal Vision REMIND User Manual

1u remote control panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
REMIND
1U remote control panel
Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
E-mail: sales@crystalvision.tv
Website: www.crystalvision.tv
Tel: +44(0) 1223 497049
Fax: +44(0) 1223 497059

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REMIND and is the answer not in the manual?

Questions and answers

Related Manuals for Crystal Vision REMIND

Summary of Contents for Crystal Vision REMIND

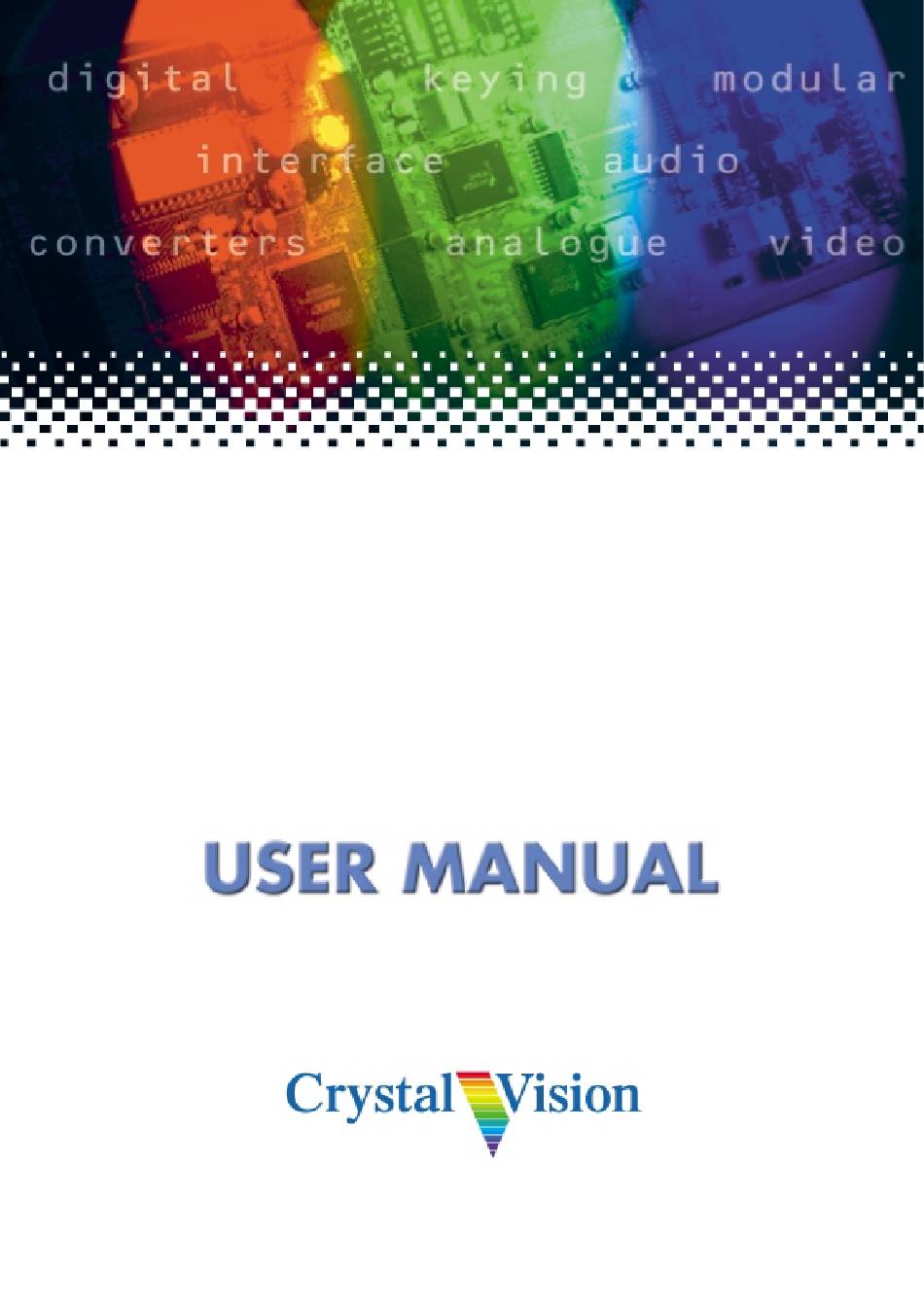

  • Page 1 REMIND 1U remote control panel Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England. E-mail: sales@crystalvision.tv Website: www.crystalvision.tv Tel: +44(0) 1223 497049 Fax: +44(0) 1223 497059...

  • Page 2: General Safety Summary

    To avoid injury or fire hazard do not operate this product in an explosive atmosphere. To avoid overheating provide proper ventilation. Only use this rack in conjunction with Crystal Vision modules designed for that purpose. Do not use the frame unless all the rear connector positions are filled, either with Crystal Vision Rear Modules, or with Crystal Vision blanking plates.

  • Page 3: Table Of Contents

    Front Panel Control Module on the Remind Panel. Using the Front Panel Controls Controlling Two Frames From One Panel Replacing a REM1U Maintenance Replacing the mains input fuses Page 3 of 9 Indigo Remind Remote Panel user manual issue 1.0.0...

  • Page 4: Introduction

    Introduction The Remind remote control panel allows the control of up to two Crystal Vision frames with a maximum of 24 cards fitted. A fused IEC mains input is provided for the power supply module. The universal input power supply used can accept voltages between 85 and 264V rms. The mains input must include a protective ground connection.

  • Page 5: Front Panel Indication

    Front Panel indication The Remind has two front panel indicators LED’s. The upper green LED will be illuminated indicating power is being supplied to the panel. The lower yellow indicator LED. labelled COMMS provides an indication of any external communication to the frame on either the Statesman RS422 port or the Ethernet port.
  • Page 6 The High-density D-type connectors on the rear of the frame contain various outputs associated with other generic frames. The outputs that may be off use to the Remind customer are listed below. Note +5.0 Vdc maximum 500mA total internally fused by...

  • Page 7: Slot Numbers

    The front panel on the Remind maintains a list of the boards available for control. Pressing the "DEVICE" button at any time will access this list. The display will give information about the number of cards available (which have the remote control facility), and about the type and position of the card currently selected.

  • Page 8: Using The Front Panel Controls

    Controlling two frames from a Remind remote panel. Using a Remind with existing cabling. Where a Remind is used in place of a REM1U an adapter cable will be required to convert the existing 15-way D-type connector to an 8-pin RJ45 type.

  • Page 9: Maintenance

    If a fuse blows repeatedly this indicates a fault either in the associated power supply module or elsewhere. Return the control panel to the manufacturer or dealer for repair. End of document. Page 9 of 9 Indigo Remind Remote Panel user manual issue 1.0.0...
