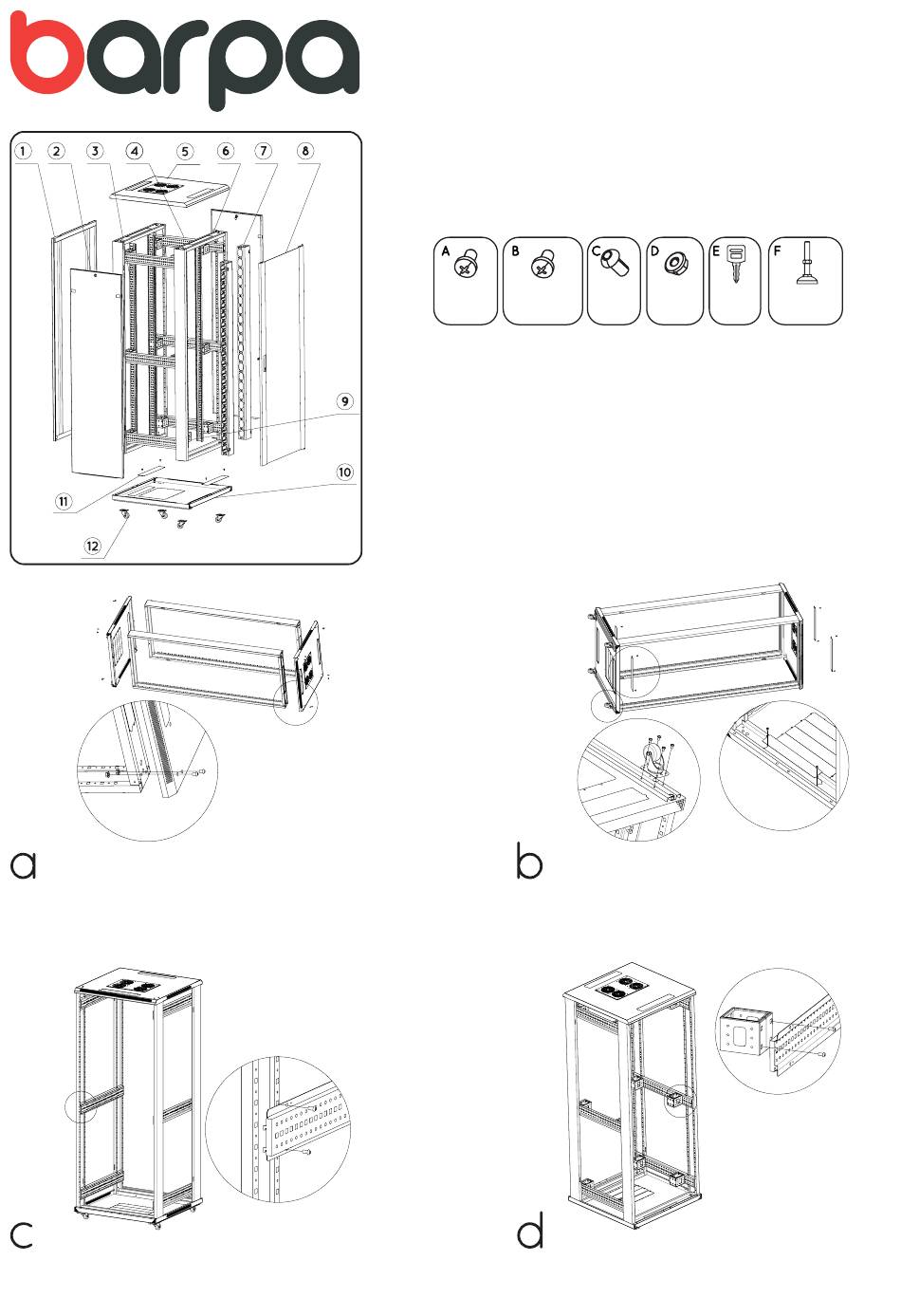

In this first step you will need the top cover (5), the
bottom plate (10) and 2 x frame (6). Put the two parts of
frame ready to assemble this part like picture with 16 x
bolt M8*12 (C) and 16 x flange nut M8 (D);
With the cabinet in the vertical, assemble the mounting
angle (4) with 24 x bolt M6*12 (B) in the horizontal sides
of the cabinet;
SERIES NORMA 800 - 38U UP TO 47U
40x
72x
M5x10bolt
M6x12bolt
M8x12 bolt
Safety warning – Do not climb on, rock,
shake your rack. Only someone with good
mechanical skill and who has experience
should install this rack. Never exceed the
maximum load capacity. If you didn't
understood
this
please contact us by info@barpa.eu
1
With the cable entry panel (11) and with the castors (12),
assemble in the bottom plate with 24 x bolt M5*10 (A);
This installation step is optional. With 24 x bolt M6*12 (B)
fix the mounting spacer to the mounting angle;
16x
16x
4x
M8 flange
key
M12 adjustable
nut
instructions
manual
2
1
2
This installation step is optional
4x
feet
IM_03
