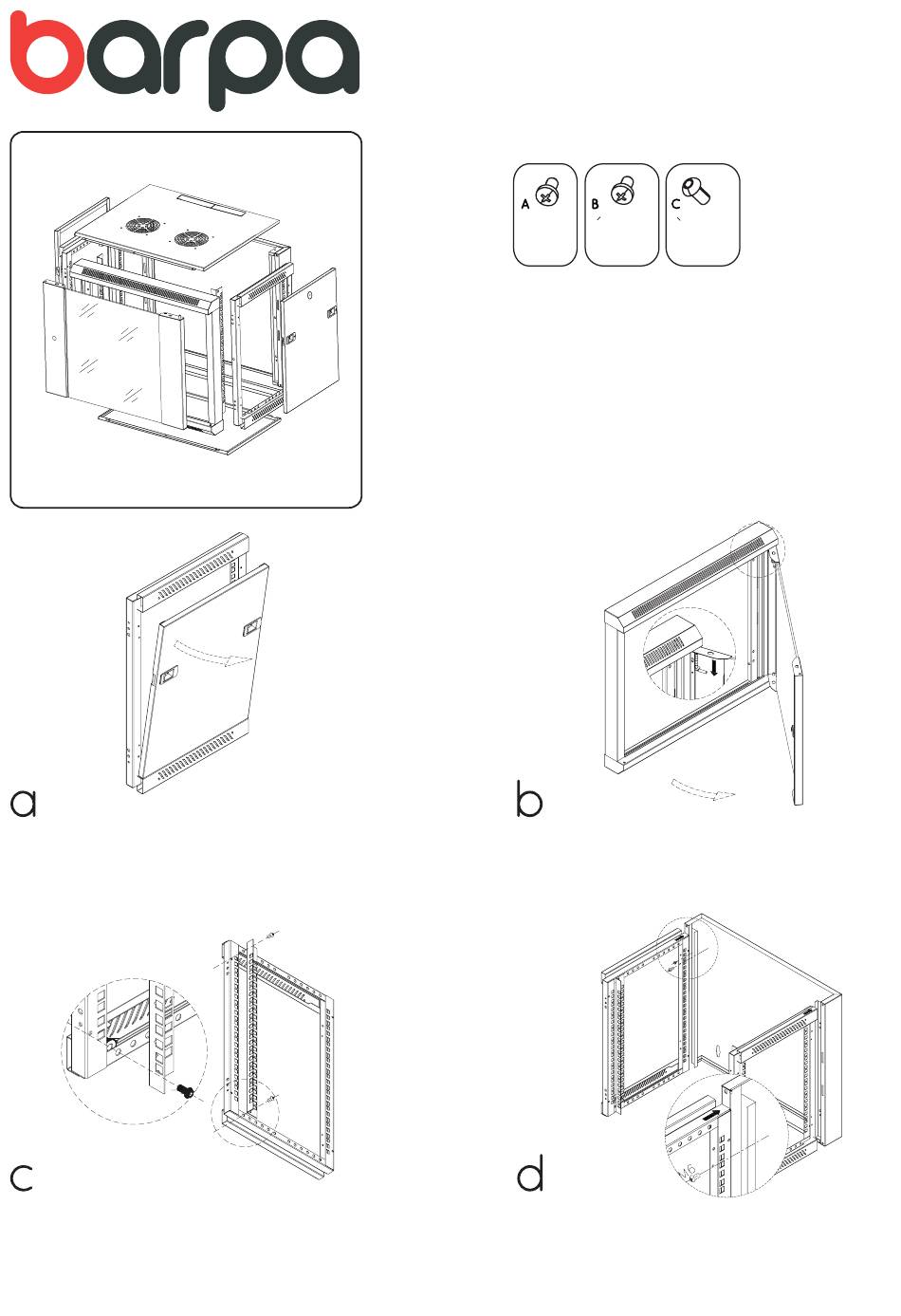

Barpa CRUX 1 Series Quick Start Manual

Remove side panel from frame, put them separate for
the preparation of the frame assembly;
Fix 19" mounting rails to the first holes of top & bottom
of side frames by 4sets of M5 screws;
SERIES CRUX 1
(>21U - 12pcs)x
M6x12bolt
8x
M5x10bolt
(<21U - 8pcs)x
M6x12bolt
Safety warning – Do not climb on, rock,
shake your rack. Only someone with good
mechanical skill and who has experience
should install this rack. Never exceed the
maximum load capacity. If you didn't
understood this
please contact us by info@barpa.eu
ATTENTION:
please remove front/back door and side
panel from the frame prior to unpacking.
Open the front door by key, pull the door latch downward,
refer to the picture, remove the front door from front
frame, put them separate for the preparation of the

frame assembly;

Install side frames to the grooves of back frame by 4pcs
of M6*12 screws (6pcs if more than 18U) as shown by the
arrow in the picture, note 19" mounting rails are in the
front side;
(<12U - 10pcs)
x
M6x12 bolt
(>12U - 20pcs)
x
M6x12 bolt
instructions manual
IM_04
