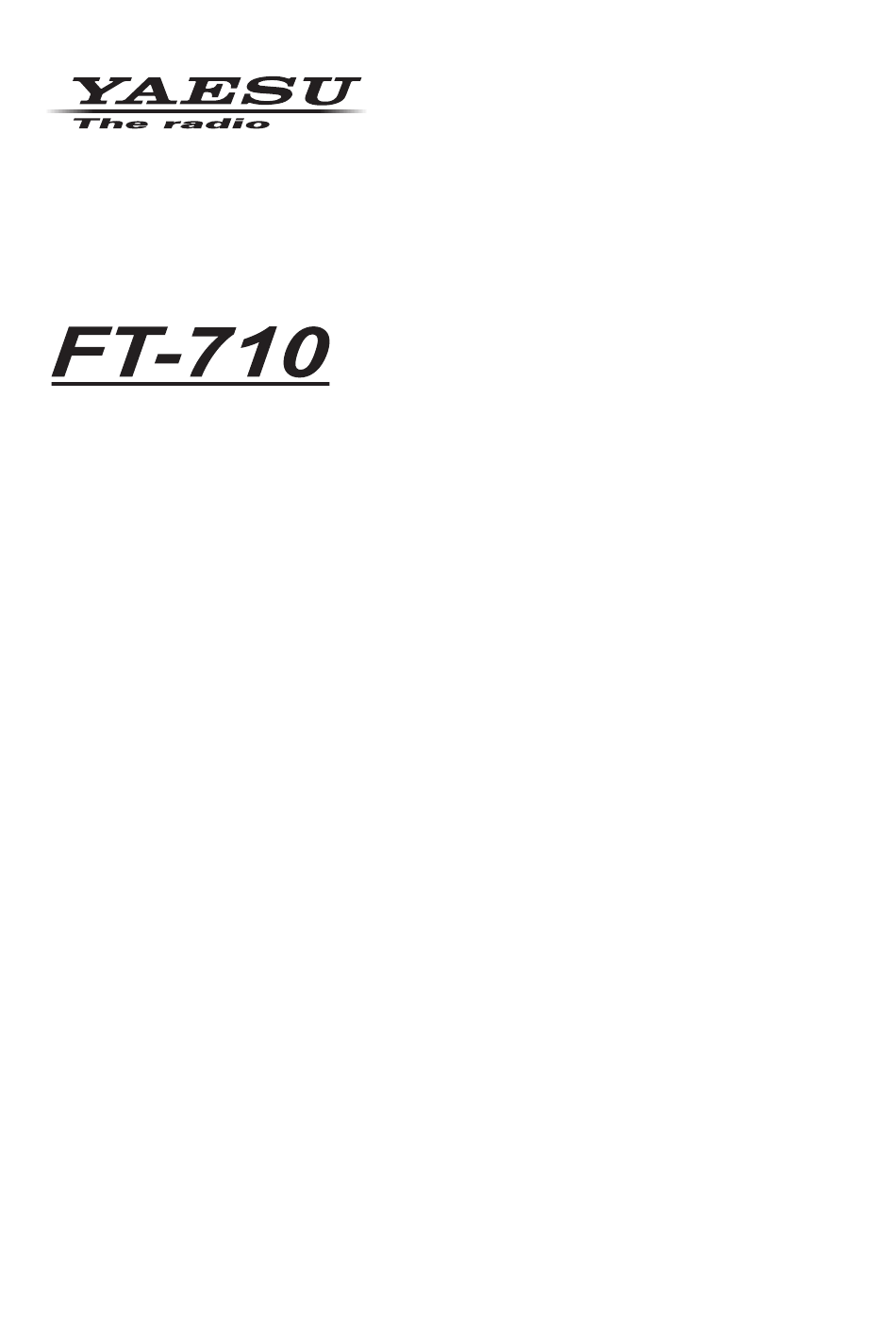

  • Page 1 CAT Operation Reference Manual YAESU MUSEN CO., LTD.
  • Page 2 Using the USB Cable (CAT-1 / CAT-2) The FT-710 transceiver has a built-in USB to Dual UART Bridge, allowing direct connection from the rear-panel USB jack to the USB jack of a computer without the need for an interface device, simply use a USB cable to connect to the USB jack on the computer.
  • Page 3 Operation ( Computer Aided Transceiver ) The FT-710 contains two virtual COM ports, an Enhanced COM Port and a Standard COM Port. These ports offer the following functions: • Enhanced COM Port (CAT-1): CAT Communications (Frequency and Communication Mode Settings) •...

  • Page 4: Operation Setting

    Operation ( Computer Aided Transceiver ) Using the RS-232C (CAT-3) The TUNER/LINEAR jack on the rear panel can be used for CAT communication (5V TTL level serial communication). Set to “CAT-3” in the setting menu [OPERATION SETTING] → [GENERAL] → [TUN/LIN PORT SELECT]. (Factory setting: EXT-TUNER) •...
  • Page 5 IS00+10000; Too many digits (Five frequency digits given) Note: If a particular parameter is not applicable to the FT-710, the parameter digits should be filled using any character except the ASCII control codes (00 to 1Fh) and the terminator (;).
  • Page 6 Operation ( Computer Aided Transceiver ) CAT Control Command List Command Function Set Read Ans. Command Function Set Read Ans. VFO-A TO VFO-B MIC GAIN ANTENNA TUNER MONITOR LEVEL CONTROL MEMORY READ AF GAIN METER SW AUTO INFORMATION MEMORY CHANNEL VFO-A TO MEMORY WRITE/TAG CHANNEL...
  • Page 7 Operation ( Computer Aided Transceiver ) VFO-A TO VFO-B Read Answer ANTENNA TUNER CONTROL P1 0: (Fixed) P2 0: Internal or External Antenna Tuner 1: - P1 P2 P3 2: ATAS P3 P2=0 (Antenna Tuner): 0: Tuner “OFF” (Tuning Stop) Read 1: Tuner “ON”...

  • Page 8: Band Select

    Operation ( Computer Aided Transceiver ) ANTI VOX LEVEL P1 001-100: ANTI VOX LEVEL P1 P1 P1 Read Answer P1 P1 P1 VFO-B TO VFO-A Read Answer AUTO NOTCH P1 0: (Fixed) P1 P2 P2 0: Auto Notch “OFF” 1: Auto Notch “ON” Read Answer P1 P2...

  • Page 9: Channel Up/Down

    Operation ( Computer Aided Transceiver ) BAND UP P1 0: MAIN BAND 1: SUB BAND Read Answer CLAR ON/OFF P1 0: MAIN BAND P3=1 (CLAR Frequency): 1: SUB BAND + / - P2 0: (Fixed) P5-P8 0000 - 9999 Hz P1 P2 P3 P4 P5 P6 P7 P8 P3 0: CLAR Setting 1: CLAR Frequency...

  • Page 10: Date And Time

    Operation ( Computer Aided Transceiver ) CTCSS P1 0: MAIN BAND P1 P2 1: SUB BAND P2 0: CTCSS “OFF” Read 1: CTCSS ENC “ON” / DEC “ON” 2: CTCSS ENC “ON” / DEC “OFF” Answer P1 P2 DIMMER P1 00: (Fixed) P1 P1 P2 P2 P3 P3 P4 P4 P2 00 - 20: TFT Display Contrast P3 00 - 20: TFT Display Brightness Level...
  • Page 11 Operation ( Computer Aided Transceiver ) Table 2 (MENU Chart) Function Digits AF TREBLE GAIN -20 - -00 (or +00) - +10 (P4 = -20 - -00 or +00 - +10) AF MIDDLE TONE GAIN -20 - -00 (or +00) - +10 (P4 = -20 - -00 or +00 - +10) AF BASS GAIN -20 - -00 (or +00) - +10 (P4 = -20 - -00 or +00 - +10) AGC FAST DELAY...
  • Page 12 Operation ( Computer Aided Transceiver ) Table 2 (MENU Chart) Function Digits AF TREBLE GAIN -20 - -00 (or +00) - +10 (P4 = -20 - -00 or +00 - +10) AF MIDDLE TONE GAIN -20 - -00 (or +00) - +10 (P4 = -20 - -00 or +00 - +10) AF BASS GAIN -20 - -00 (or +00) - +10 (P4 = -20 - -00 or +00 - +10) AGC FAST DELAY...
  • Page 13 Operation ( Computer Aided Transceiver ) Table 2 (MENU Chart) Function Digits IF NOTCH WIDTH 0: NARROW 1: WIDE NB REJECTION 0: LOW 1: MID 2: HIGH NB WIDTH 0: NARROW 1: MEDIUM 2: WIDE (RX-DSP) APF WIDTH 0: NARROW 1: MEDIUM 2: WIDE CONTOUR LEVEL...

  • Page 14: Agc Function

    Operation ( Computer Aided Transceiver ) FREQUENCY VFO-A P1 000030000 - 075000000 (Hz) P1 P1 P1 P1 P1 P1 P1 P1 P1 Read Answer P1 P1 P1 P1 P1 P1 P1 P1 P1 FREQUENCY VFO-B P1 000030000 - 075000000 (Hz) P1 P1 P1 P1 P1 P1 P1 P1 P1 Read Answer...
  • Page 15 Operation ( Computer Aided Transceiver ) INFORMATION VFO-A P1 000: VFO or MT or QMB (3 Bytes) 001 - 099: (Memory Channel) P1L - P9U: (PMS) 5xx: (5MHz BAND) EMG: (EMERGENCY CH) Read P2 VFO-A Frequency (Hz) (9 Bytes) P3 Clarifier Direction +: Plus Shift, -: Minus Shift (1 Bytes) Clarifier Offset: 0000 - 9990 (Hz) (4 Bytes) P4 0: RX CLAR “OFF”...

  • Page 16: Memory Channel

    Operation ( Computer Aided Transceiver ) LOCK P1 0: Lock “OFF” 1: Lock “ON” Read Answer LOAD MESSAGE P1 0: MESSAGE (DVS) 1: RECORD P2 P1=0 (MESSAGE) 0: Play Stop/ Recording Stop P1 P2 1: Select CH “1” 2: Select CH “2” 3: Select CH “3”...

  • Page 17: Monitor Level

    Operation ( Computer Aided Transceiver ) MONITOR LEVEL P1 0: MONI “ON/OFF” 1: MONI Level P1 P2 P2 P2 P2 P1=0 000: MONI “OFF” Read 001: MONI “ON” P1=1 Answer 000 - 100 P1 P2 P2 P2 MEMORY CHANNEL READ P0 001 - 099: (Memory Channel) P1L - P9U: (PMS) 5xx: (5MHz BAND)

  • Page 18: Noise Blanker Level

    Operation ( Computer Aided Transceiver ) NARROW P1 0: (Fixed) P1 P2 P2 0: OFF 1: ON Read Answer P1 P2 NOISE BLANKER STATUS P1 0: (Fixed) P1 P2 P2 0: Noise Blanker “OFF” 1: Noise Blanker “ON” Read Answer P1 P2 NOISE BLANKER LEVEL P1 0: (Fixed)
  • Page 19 Operation ( Computer Aided Transceiver ) PLAY BACK P1 0: (Fixed) P2 0: MESSAGE Playback / Recording Stop P1 P2 1: MESSAGE CH “1” Playback Start Read 2: MESSAGE CH “2” Playback Start 3: MESSAGE CH “3” Playback Start 4: MESSAGE CH “4” Playback Start Answer 5: MESSAGE CH “5”...

  • Page 20: Radio Information

    Operation ( Computer Aided Transceiver ) RF GAIN P1 0: (Fixed) P1 P2 P2 P2 P2 000 - 255 Read Answer P1 P2 P2 P2 RADIO INFORMATION P1 0: (Fixed) P2 0: Normal 1: Hi-SWR P3 0: Stop 1: Recording 2: Playing P4 0: RX 1: TX...

  • Page 21: Squelch Level

    Operation ( Computer Aided Transceiver ) WIDTH P1 0: (Fixed) P1 P2 P3 P3 P2 0: (Fixed) P3 00 - 23 (See Table 3) Read Answer P1 P2 P3 P3 Table 3 (Bandwidth Chart) Command Bandwidth CW / DATA-L / AM / FM-N / LSB / USB AM-N...

  • Page 22: Spectrum Scope

    Operation ( Computer Aided Transceiver ) SPECTRUM SCOPE P1 0: (Fixed) P1 P2 P3 P4 P5 P6 P7 P2 0: SPEED 1: PEAK 2: MARKER 3: COLOR 4: LEVEL 5: SPAN 6: MODE 7: AF-FFT/OSCILLOSCOPE Read P2=0 (SPEED): P1 P2 P3 0: SLOW1 1: SLOW2 2: FAST1...

  • Page 23: Firmware Version

    Operation ( Computer Aided Transceiver ) MIC UP Read Answer VOX DELAY TIME / DATA VOX DELAY TIME P1 00: 30 msec 01: 50 msec 02: 100 msec 03: 150 msec 04: 200 msec P1 P1 P1 P1 05: 250 msec 06: 300 msec - 33: 3000 msec (06 - 33: 10 msec multiples) NOTE: VD command sets individual parameter values with the setting values “MIC”...
  • Page 24 Operation ( Computer Aided Transceiver ) ZERO IN (CW AUTO ZERO IN Function) P1 0: Fixed Read Answer...
  • Page 25 Copyright 2022 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD. YAESU MUSEN CO., LTD. Tennozu Parkside Building 2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan YAESU USA 6125 Phyllis Drive, Cypress, CA 90630, U.S.A.
