Scinomix TS-1084 Quick Start Manual

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

TS-1084
Replacing the X-axis
Idler Pulley

Purpose

This document provides the steps required to replace the X-axis idler pulley of the Sci-Print
VX2/VXL or RETROS instruments.

Intended Use

When the X-axis idler pulley needs to be replaced.

Required Material and Equipment

4mm allen wrench
3mm allen wrench

Intended Audience

Superuser

Procedure

1. Power off the instrument.
2. Remove the hood of the unit, and set aside.

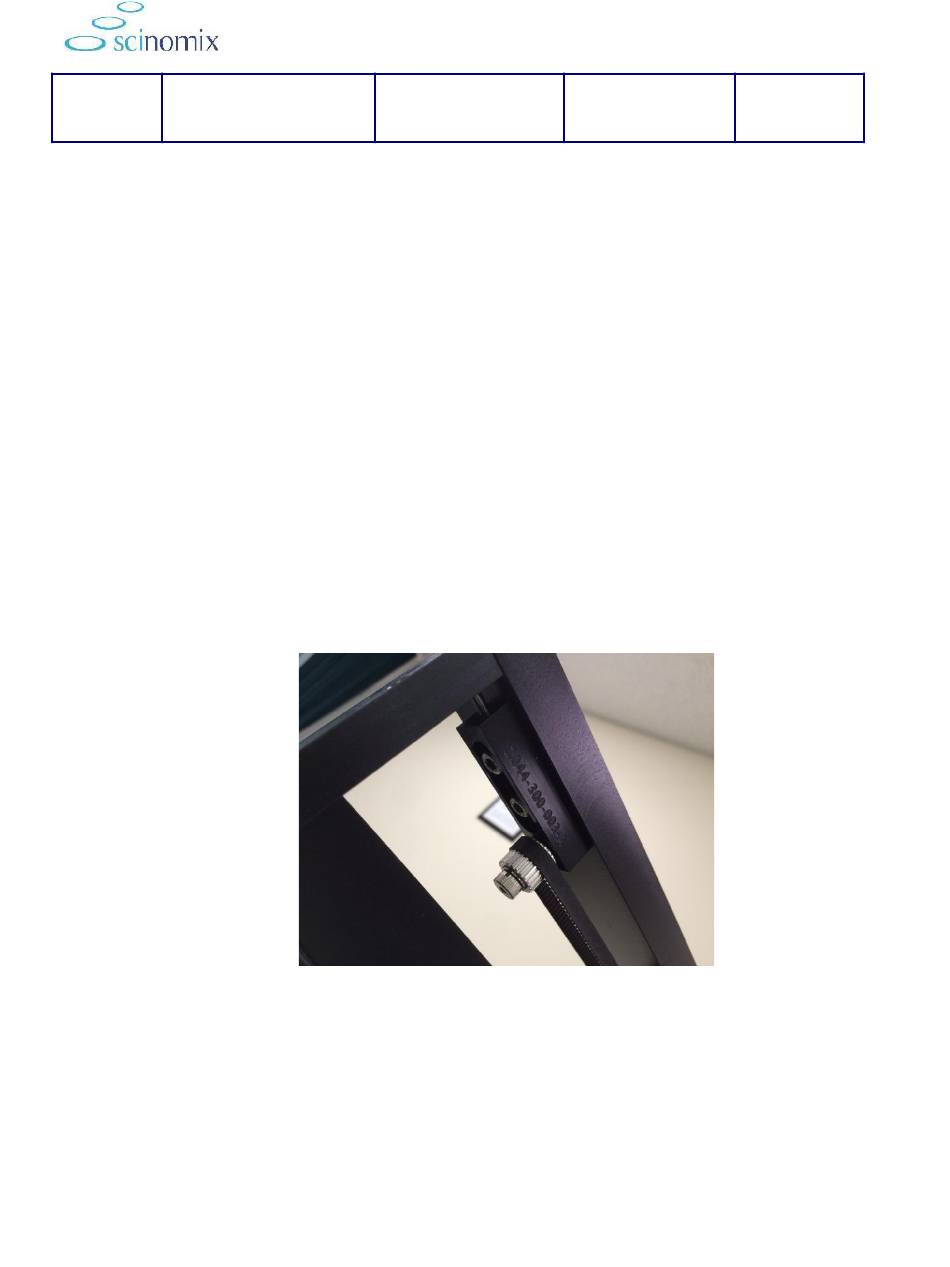

3. Locate the X-axis idler pulley, shown in Figure 1 below.
4. Use a finger to push against the belt, and take a mental note of the tension for later.
File Location: DMS
Document Owner:
Service Department
Revision A Approved Date: AUG-22-2023 Approved by: Service
Effective Date:
AUG-23-2022
Figure 1.
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-1084 and is the answer not in the manual?

Questions and answers

Related Manuals for Scinomix TS-1084

Summary of Contents for Scinomix TS-1084

  • Page 1 TS-1084 Replacing the X-axis Document Owner: Effective Date: Page 1 of 4 Idler Pulley Service Department AUG-23-2022 Purpose This document provides the steps required to replace the X-axis idler pulley of the Sci-Print VX2/VXL or RETROS instruments. Intended Use When the X-axis idler pulley needs to be replaced.
  • Page 2 TS-1084 Replacing the X-axis Document Owner: Effective Date: Page 2 of 4 Idler Pulley Service Department AUG-23-2022 5. Loosen the two bracket screws using a 4mm allen wrench to allow the tensioner to move, as shown in Figure 2 below.
  • Page 3 TS-1084 Replacing the X-axis Document Owner: Effective Date: Page 3 of 4 Idler Pulley Service Department AUG-23-2022 7. The belt should be loose enough to pull off the pulley and let it loosely hang as shown in Figure 4 below.
  • Page 4 15. Open the software, and HOME ALL. 16. Test operation as normal. Rack Positions need to be re-taught, because removing the belt changes positioning. If you need additional assistance, please call our service department at 314-298-9800 or email service@scinomix.com. Definitions Revision History Version:...
