Scinomix MP2 Troubleshooting Manual

Tamp head adjustment

TS-1038

8/8/19

Purpose

This guide is intended for an end user or technician to use when adjusting an MP2

Tamp Head. Please follow the instructions below to properly adjust the tamp head.

End users of the MP2.

Step 1 – Leveling the Base*

Before starting, ensure that the silver printer base is firmly settled to the black MP base.

Holes on the printer base align with silver dowels on the MP base. If correct, 2 setscrews will

touch the base. If incorrect, ensure the dowels and holes are aligned and press the printer

downwards. If still incorrect, use a screwdriver to adjust the setscrews to level the base.

*Error in this step compounds and makes it more difficult to adjust other settings, so

ensure this is correct and perform this first.

MP2 Tamp Head Adjustment

Table of Contents

Do you have a question about the MP2 and is the answer not in the manual?

Page 1 MP2 Tamp Head Adjustment Purpose This guide is intended for an end user or technician to use when adjusting an MP2 Tamp Head. Please follow the instructions below to properly adjust the tamp head. Who Should Use This Troubleshooting Guide? End users of the MP2.

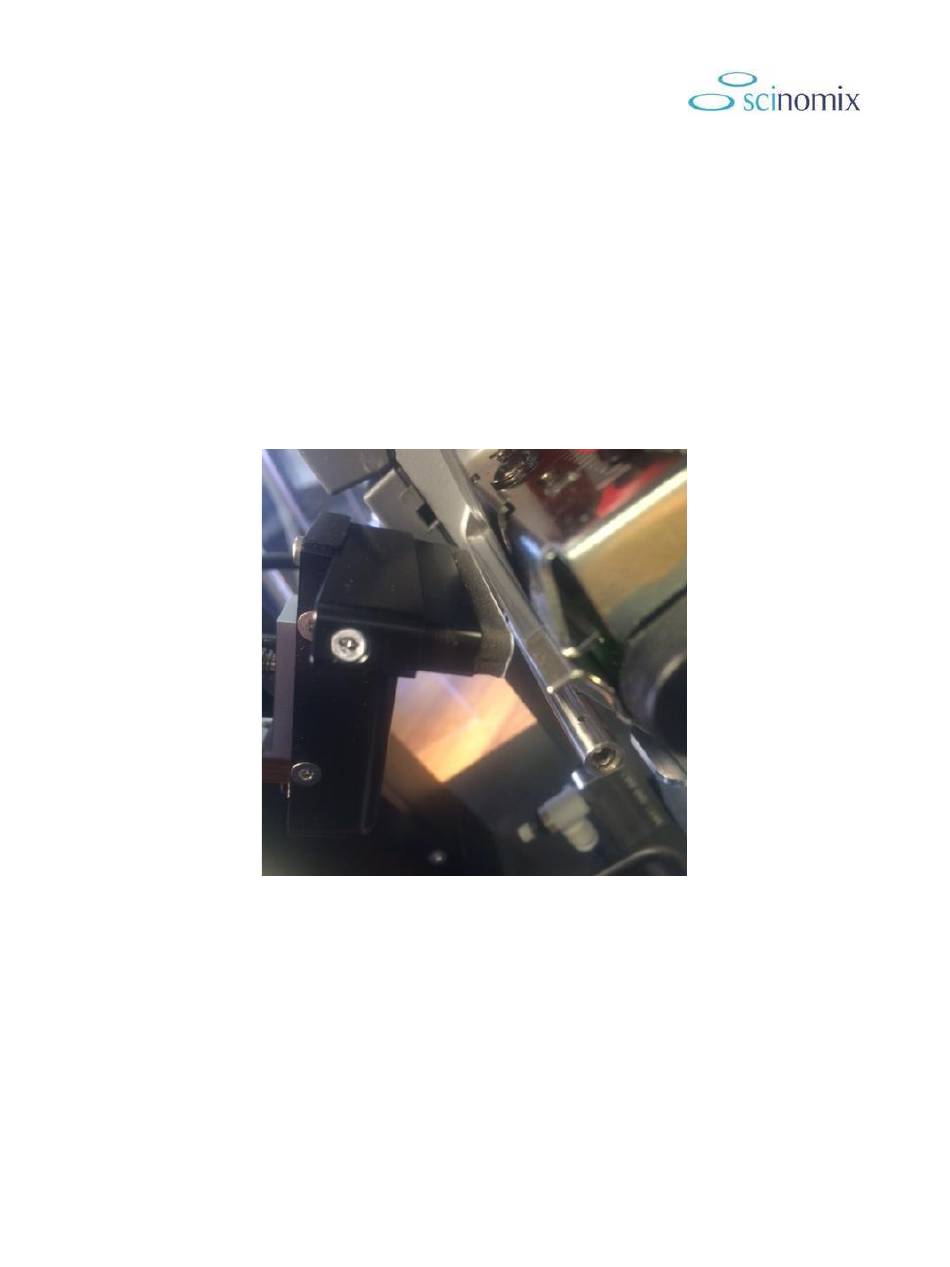

Page 2 TS-1038 8/8/19 Step 2 – Tamp Head, Peel Angle Adjustment This is the screw to turn for peel angle adjustment of the tamp head. Adjusting this will change the vertical and horizontal position of the tamp head when it is at the printer. Use a flat head screwdriver to turn the outer black portion of the screw - do not turn the interior silver portion.
Page 3 TS-1038 8/8/19 Step 3 – Tamp Head, Peel Position Adjustment This is where the set screw is located for in and out adjustment of the tamp head. Adjusting this will change the position of the tamp head when it is retracted, and as a result the proximity to the printer when picking up a label.
Page 4 TS-1038 8/8/19 Step 4 – Peel Blow Bar This is how the peel blow bar should be adjusted.
