Rotating inspection glass with integrated safety
Design certified by the German professional institute for workplace safety (Berufsgenossenschaftliches Institut für
Arbeitssicherheit – BIA)
Certified to
– CEN/143/WG3 N 41 "Safety of Machine Tools-Lathes and Turning Centres-Guard Test Methods"
Suitability: As inspection glass on protective hoods for lathes with a maximum working speed of 50 m/s
Resistance class A1, A2
– DIN EN 12417 "Machine Tools-safety-Machining centres"
Suitability: As inspection glass on protective hoods for machining centers with a maximum speed (Vc max) of
– 150 m/s (safety pane thickness of 12 mm on the A-P 1620 500/500 30 models) or
– 220 m/s (safety pane thickness of 2x12 mm on the A-P 1620 500 50 model)

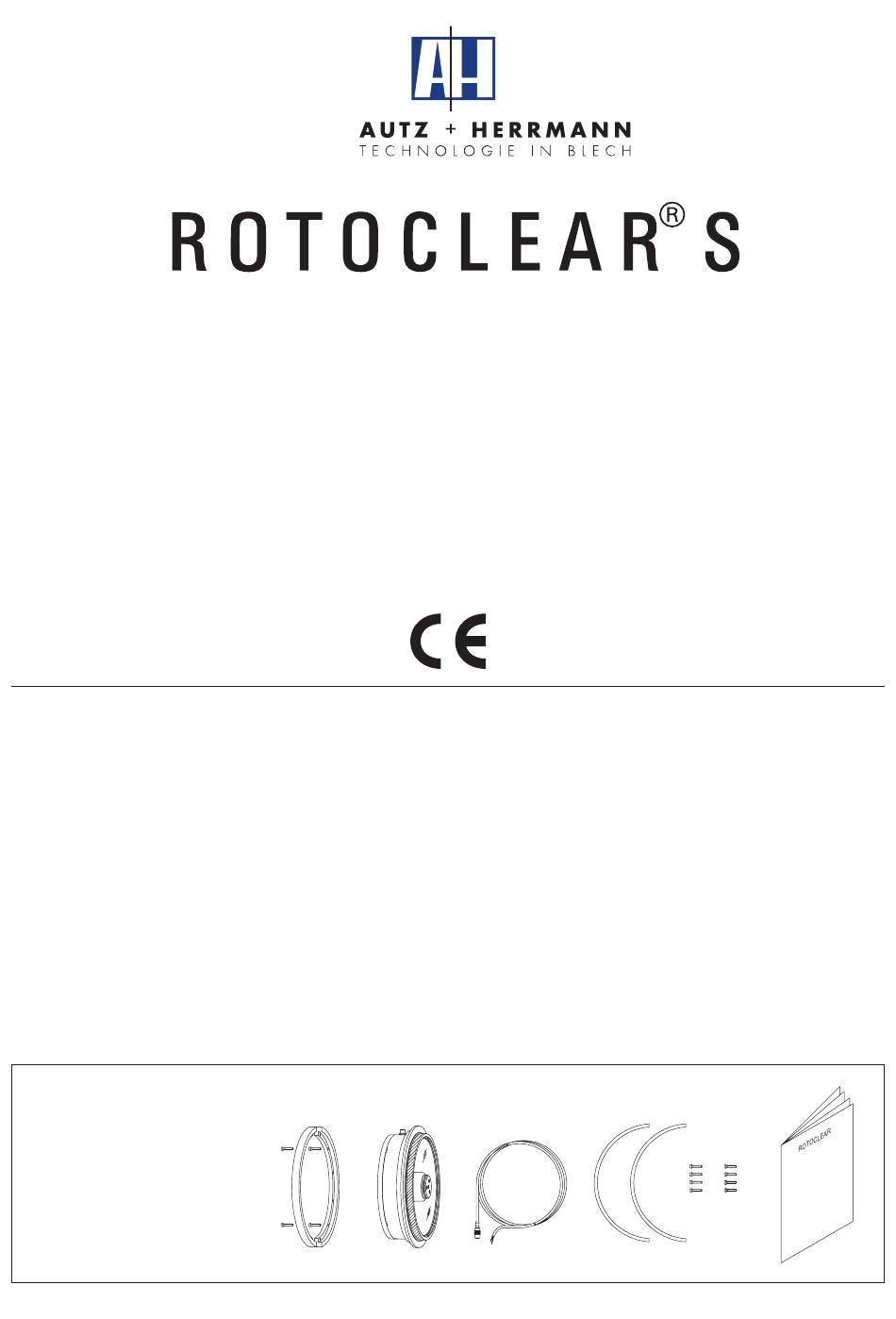

Standard shipping list
Patent DBP 3713158
Type A-P 1620 500
Type A-P 1620 500 30
Type A-P 1620 500 50
Operating manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Autz + Herrmann ROTOCLEAR S
Summary of Contents for Autz + Herrmann ROTOCLEAR S
- Page 1 Patent DBP 3713158 Type A-P 1620 500 Type A-P 1620 500 30 Type A-P 1620 500 50 Operating manual Rotating inspection glass with integrated safety Design certified by the German professional institute for workplace safety (Berufsgenossenschaftliches Institut für Arbeitssicherheit – BIA) Certified to –...
- Page 2 Areas of application Milling machines Machining centers Automatic lathes Test benches Machines of all kinds Dimensions (mm) Ø 5.5 4-14mm Ø 13.5 28.5 14-30mm 31.5 Ø 305 Different on type A-P 1620 500 50: 110 Assembly min. 4 size 4 screw max.
- Page 3 "Change electromagnetic compatibility 89/336/EWG. on month/year" sticker Replacement interval 2 years Management of Autz + Herrmann – Optional/polycarbonate safety panes P 1620 530 and P 1620 503 01 with 180 µ protective foil, with sealed cutting Signed edge, with "Change on month/year"...
- Page 4 Parts marked blue are standard commercially available screws. While these are included in the standard shipping list of the complete models, you do not have to order them as special spare parts from AUTZ + HERRMANN. Parts marked gray are included in the standard shipping list of the complete models, but are not sold separately as individual parts.
