– INSTRUCTION MANUAL –
FIFTY-FIFTY WALL
DESIGN BY SAM WELLER

Advertisement

loading
Need help?

Need help?

Do you have a question about the FIFTY-FIFTY and is the answer not in the manual?

Questions and answers

Summary of Contents for Hay FIFTY-FIFTY

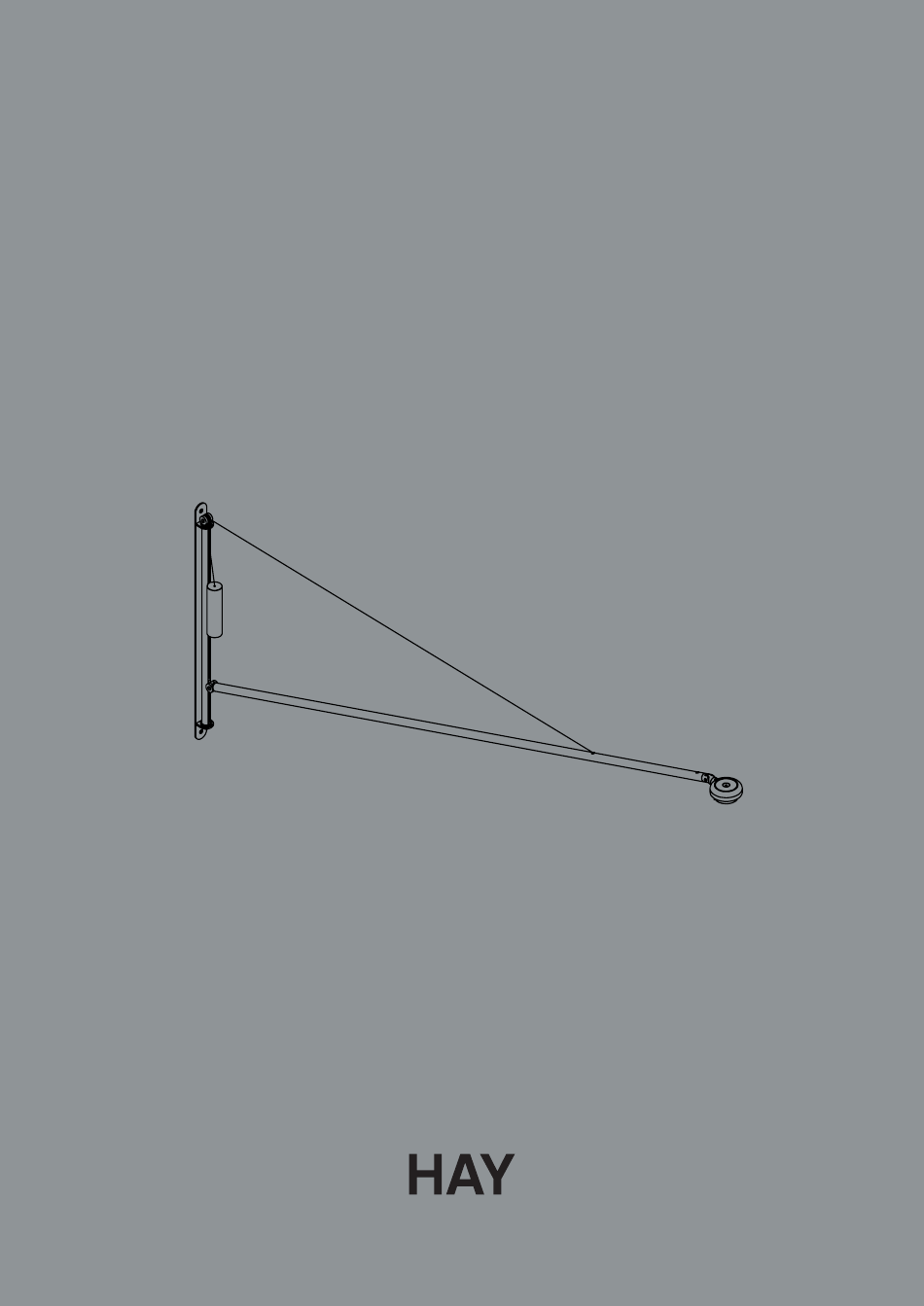

  • Page 1 – INSTRUCTION MANUAL – FIFTY-FIFTY WALL DESIGN BY SAM WELLER...
  • Page 3 The extruded cantilever arm is easy to tilt and pivot, featuring a touch-sensitive dimmer switch for precisely positioning and controlling the integrated LED light source. The Fifty-Fifty wall lamp is suitable for using in offices, public spaces and private homes.
  • Page 4: Care And Maintenance

    ATTENTION In some countries, electrical installations must be carried out by authorised electricians/contractors; please check with your local authority for guidance. / HAY accepts no responsibility for any products that have been modifed or tampered with.
  • Page 5 – PARTS – Lamp Wall plugs Screws Allen key Handle Adapter Power supply...
  • Page 6 The arm has three different settings allowing for different degrees of freedom in a vertical direction. Choose the setting most suitable for your needs. Setting 1 30° 5° Setting 2 17.5° 17.5° Setting 3 (default) 10° 30° Side views...
  • Page 7 If you would like to change between the three different settings for the arm - simply loosen the screw on the adjustment slider (step 1), change the slider’s position (step 2) to the setting you require (step 3) and aligning the screw with the pre-defined hole and tighten the screw.
  • Page 8 The head of Fifty-Fifty / Wall is flexible and can be moved sideways and up and down. The arm also allows for a 180 degree horizontal movement. 50° 50° 90° 90° Side view Front view 90° 90° Top view...
  • Page 9 Using the lamp’s wall bracket as a guide, mark the position of the holes to be drilled (640 mm apart). Use a spirit level to ensure that the wall bracket is level.
  • Page 10 Drill the holes using the correct type of drill for the wall you are drilling into.
  • Page 11 Insert the wall plugs. Ensure you use the correct type of plugs for the type of wall.
  • Page 12 Fix the wall bracket onto the wall using the provided screws, starting from the top.
  • Page 13 Screw the handle into the head, ensuring it is tight before using it to adjust the lamp’s position. The lamp can be freely moved and will hold in any position. A touch sensitive step dimming switch is located on the backside of the lamp’s head.
  • Page 14 Plug the trailing cable into the power supply. Attach the correct adapter for your region. The lamp is now ready for use.
  • Page 16 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com 02/17/20...
