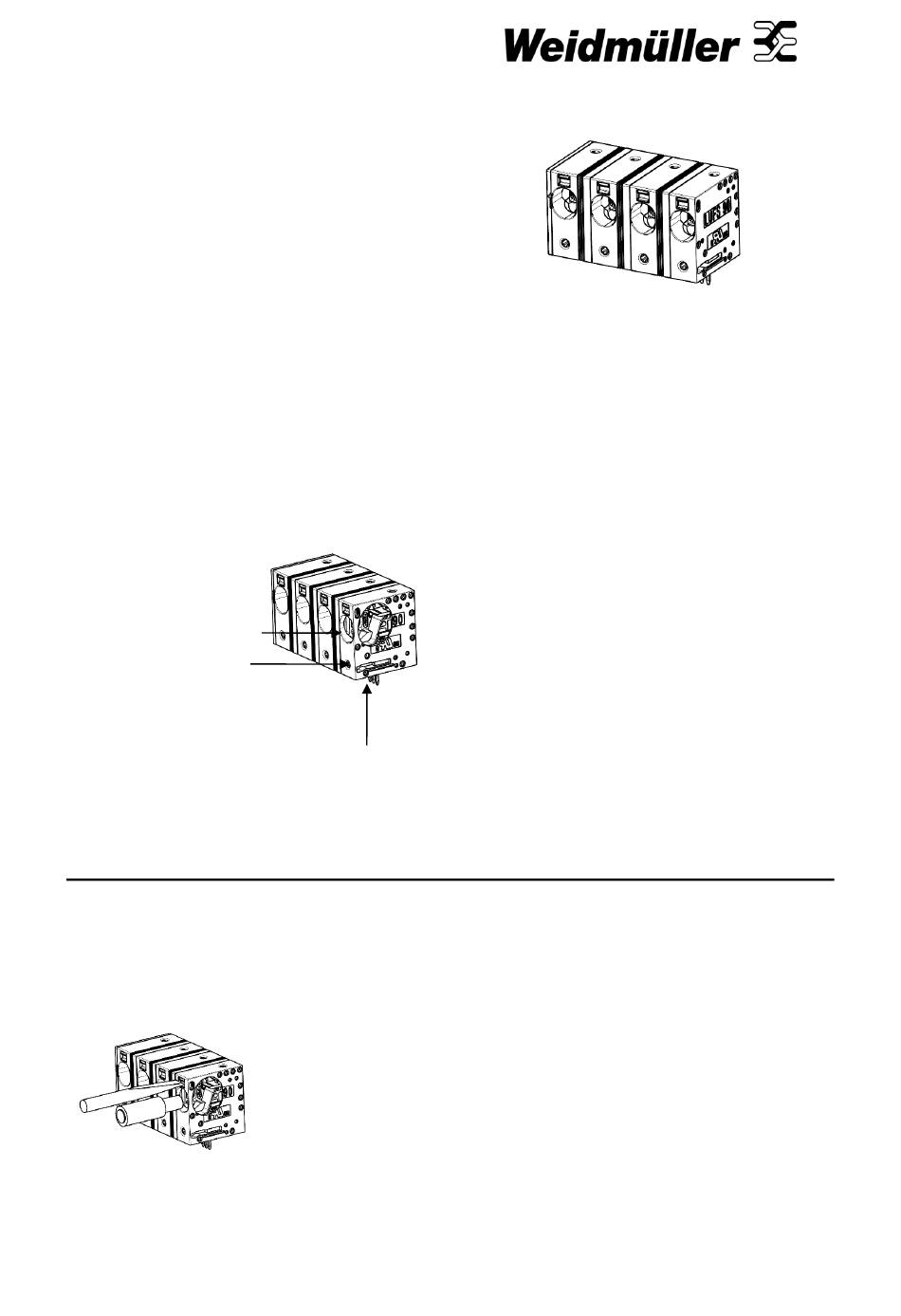

Assembly instructions
PUSH IN terminals –
LLFS/LUFS
OMNIMATE Power – Series LLFS/LUFS
All technical data can be obtained from the data sheet.
push-button
(slider/pusher)
Conductor
entry
Delivery status:
• The clamping units are closed.
Connecting flexible conductors:
Opening clamping unit: Press the screwdriver individually onto the push-button (slider/pusher) and
1.
hold the screwdriver in this position.
Connect the conductor: Insert the flexible conductor into the terminal point as far as it will go.
2.
Clamping
unit
We reserve the right to make technical changes. Personal support can be found on our website: www.weidmueller.com/contact
I
Advertisement
Table of Contents
Related Manuals for Weidmüller LLFS Series
Summary of Contents for Weidmüller LLFS Series
- Page 1 Assembly instructions PUSH IN terminals – LLFS/LUFS OMNIMATE Power – Series LLFS/LUFS All technical data can be obtained from the data sheet. push-button (slider/pusher) Conductor entry Clamping Delivery status: unit • The clamping units are closed. Connecting flexible conductors: Opening clamping unit: Press the screwdriver individually onto the push-button (slider/pusher) and hold the screwdriver in this position.
- Page 2 Close the clamping unit: Lock the clamping unit by releasing preassure onto the push-button (slider/pusher). Make sure that the conductor is inserted up to the end stop and ensure by gently pulling on the conductors that the clamping unit is securely locked. Connecting conductors with ferrules or solid wires: Plug the conductor into the contact unit up to the end stop.
- Page 3 Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 32758 Detmold, Germany Telefon +49 5231 14-0 E-Mail info@weidmueller.com www.weidmueller.com We reserve the right to make technical changes. Personal support can be found on our website: www.weidmueller.com/contact...
- Page 4 Montageanleitung PUSH IN Leiterplattenklemme LLFS/LUFS OMNIMATE Power – Serie LLFS/LUFS Alle technischen Daten sind dem Datenblatt zu entnehmen. Betätiger (Schieber/ Pusher) Leitereinführung Klemmfed Auslieferungszustand: • Die Klemmstellen sind geschlossen. Anschließen von flexiblen Leitern: Klemmstelle öffnen: Drücken Sie mit dem Schlitzschraubendreher einzeln auf den Betätiger (Schieber/Pusher) und halten Sie den Schraubendreher in dieser Position.
- Page 5 Leiter anschließen: Stecken Sie den flexiblen Leiter, bis zum Anschlag, in die Klemmstelle ein. Klemmstelle schließen: Verriegeln Sie die Klemmstelle durch Lösen des Drucks auf den Betätiger (Schieber/Pusher). Beachten Sie dabei, dass der Leiter bis zum Anschlag eingesteckt ist und kontrollieren Sie durch leichten Zug an den Adern, dass die Klemmstelle sicher verriegelt ist.
- Page 6 Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 32758 Detmold, Germany Telefon +49 5231 14-0 E-Mail info@weidmueller.com www.weidmueller.com We reserve the right to make technical changes. Personal support can be found on our website: www.weidmueller.com/contact...
