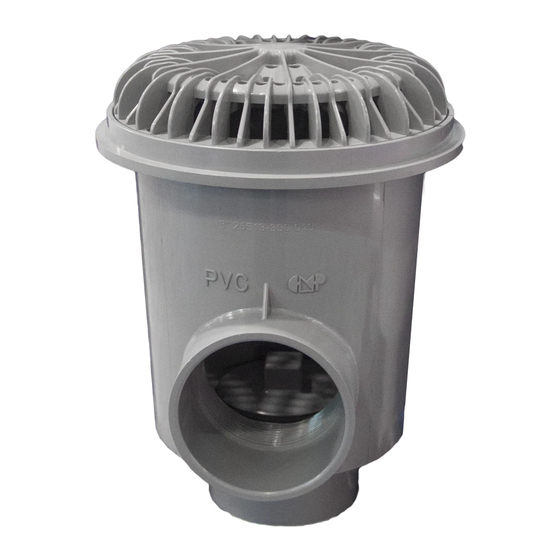

NOVA POOL DRAIN WITH SUMP
25513-26X, 25513-4XX, 25513-5XX, 25513-6XX, 25515-5XX, 25516-26X
25516-4XX, 25516-5XX, 25517-5XX, 25548-5XX
VGBA TESTED & CERTIFIED
ANSI-APSP 16 | CPSC
®
All Custom Molded Products main drains are listed and tested in strict accordance
to the requirements of ANSI/APSP - 16 2017, the current standard of reference for
the Virginia Graeme Baker Act, and compliant to the latest Consumer Product
Safety Commission (CPSC) requirements.
For Multiple Drain Use Only | Submerged | Cover Life: 7 Years | Floor or Wall
IAPMO Listed VGBA Suction: Compliant to ANSI/APSP - 16 2017 & CPSC
Requirements
Advertisement
Table of Contents
Related Manuals for CMP NOVA 25513-26 Series
Summary of Contents for CMP NOVA 25513-26 Series

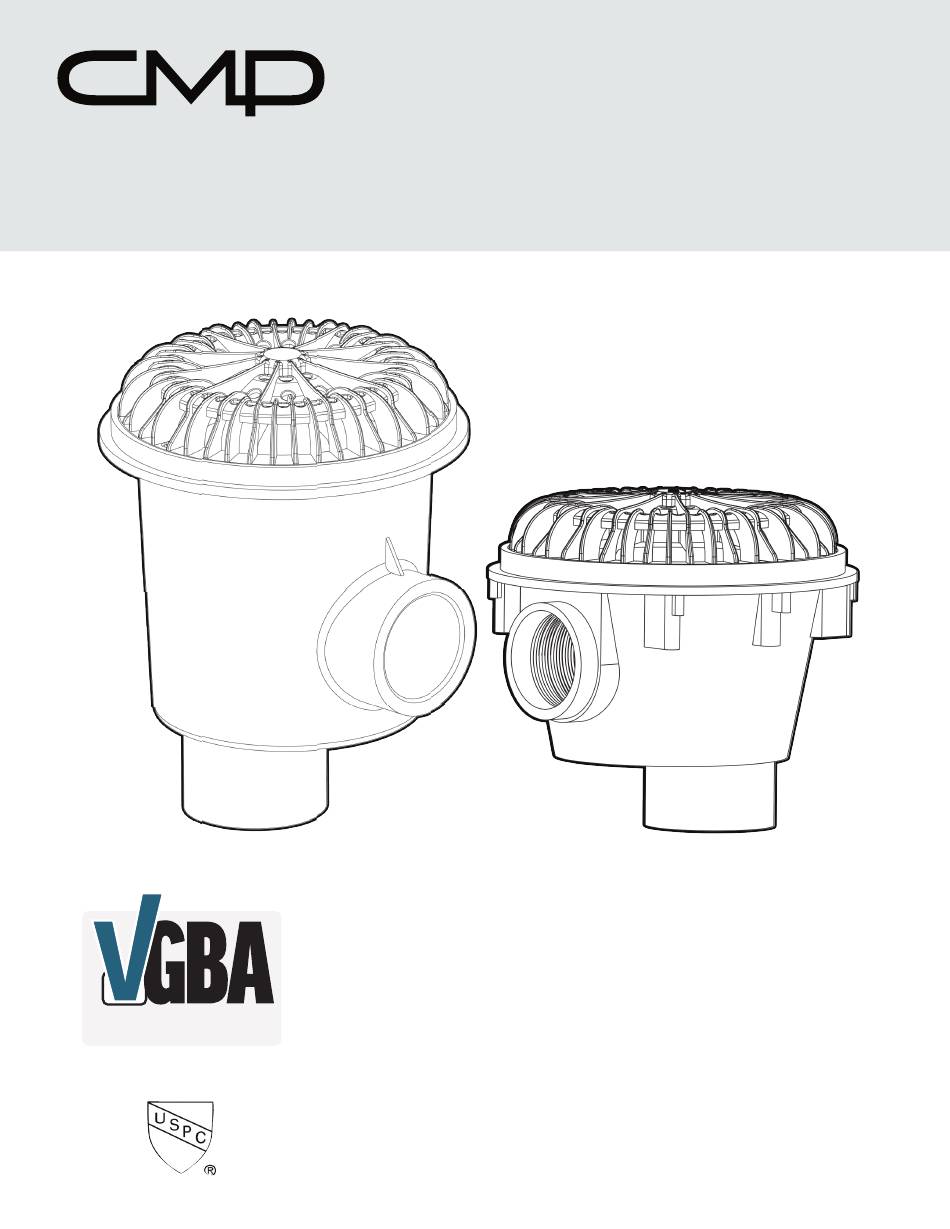

- Page 1 ® NOVA POOL DRAIN WITH SUMP 25513-26X, 25513-4XX, 25513-5XX, 25513-6XX, 25515-5XX, 25516-26X 25516-4XX, 25516-5XX, 25517-5XX, 25548-5XX All Custom Molded Products main drains are listed and tested in strict accordance to the requirements of ANSI/APSP - 16 2017, the current standard of reference for the Virginia Graeme Baker Act, and compliant to the latest Consumer Product Safety Commission (CPSC) requirements.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Please read through the entire manual before installing your new unit. Your pool drain fitting must be installed and operated as specified. A. Safety Instructions & Precautions ..................3 B. Sizing & Specification Reference ..................4 C. Installation & Maintenance Procedures ................6 1. -
Page 3: Safety Instructions & Precautions
The maximum hose length difference between any self-contained SOFA and the tee leading to the pump shall not NOTICE exceed 13 feet (3.96 m). CMP drain covers are only certified for use with CMP sumps and frames. Do not mismatch with parts from other NOTICE manufacturers. -
Page 4: Sizing & Specification Reference
B. SIZING & SPECIFICATION REFERENCE • Suction fitting configuration specific flow ratings MUST NOT be exceeded at any time the pool is open to bathers. • A system must install a suction fitting, or combination of multiple suctions, such that the resulting individual suction system flow rating is greater than the pumping system’s maximum system flow rate. - Page 5 B. SIZING & SPECIFICATION REFERENCE 3.22 1.97 0.72 0.20 -0.079 -0.5 FLOW RATE - 2in PIPE 1.45 0.88 0.38 0.18 -0.2 FLOW RATE - 2.5in PIPE 1.84 1.34 0.89 0.72 FLOW RATE - 3in PIPE HEAD LOSS CHARTS...
-
Page 6: Installation & Maintenance Procedures
C. INSTALLATION & MAINTENANCE 1. REQUIRED FOR INSTALLATION Your Nova Drain includes the following: • Drain Sump Body • Drain Suction Cover • Cover Screws • 2" Plugs (2) • Protective Plaster Installation Cover • 2" to 1.5" FPT Bushings (if threaded model) 2. - Page 7 C. INSTALLATION & MAINTENANCE SOFA components and fastener receptacles shall be clean and free of debris or obstructions during installation of cover/grate and fasteners. The use of adhesives or other attachment methods that prevent access to suction piping or SOFA components requiring periodic servicing is prohibited.
-
Page 8: Maintenance & Inspection
C. INSTALLATION & MAINTENANCE 2. MAINTENANCE & INSPECTION Covers/grates and all other SOFA components shall be replaced before the end of their service life. Service life begins the month and year in which a SOFA component is installed with or without water. The cover/grate and screws should be replaced at least every seven (7) years. -
Page 9: Diagram & Measurements
D. PART DIAGRAMS AND MEASUREMENTS 8.7” 8.5” 8.0” 0.98” 8.5” 1.4” 4.9” 7.5” 3” 3.75” 4.2” 6.8” 10.1” 6.6” 8.5” 3” 8” 3.3” NOVA - SIDE VIEW LARGE OUTLET NOVA - SIDE VIEW A 8.7” 8.5” 8.0” 0.98” 1.4” 4.9” 3”... -
Page 10: Parts List
G. PARTS LIST CMP P/N DESCRIPTION 61004 - 083 - 212 SCREWS FOR 25513, 25516 61051 - 052 - 028 SCREWS FOR 25515 61050 - 048 - 025 SCREWS FOR 25517 25539 - 700 - 011 COVER 25513 - 250 - 020... - Page 11 Record Information on this System Below & Keep for Your Records Installer _______________________________________________________________ Purchased From _______________________________________________________ Installation Date _____________________________ Model Number ______________________________ Pool Size in Gallons __________________________ CMP Customer Service & Tech Support Toll Free: 1-800-733-9060 FAX: 770-732-7115 support@c-m-p.com Warranty Questions RMA@c-m-p.com Support Resource &...
- Page 12 0521sb CUSTOM MOLDED PRODUCTS | 36 HERRING ROAD, NEWNAN, GA 30265 | WWW.C-M-P.COM...
