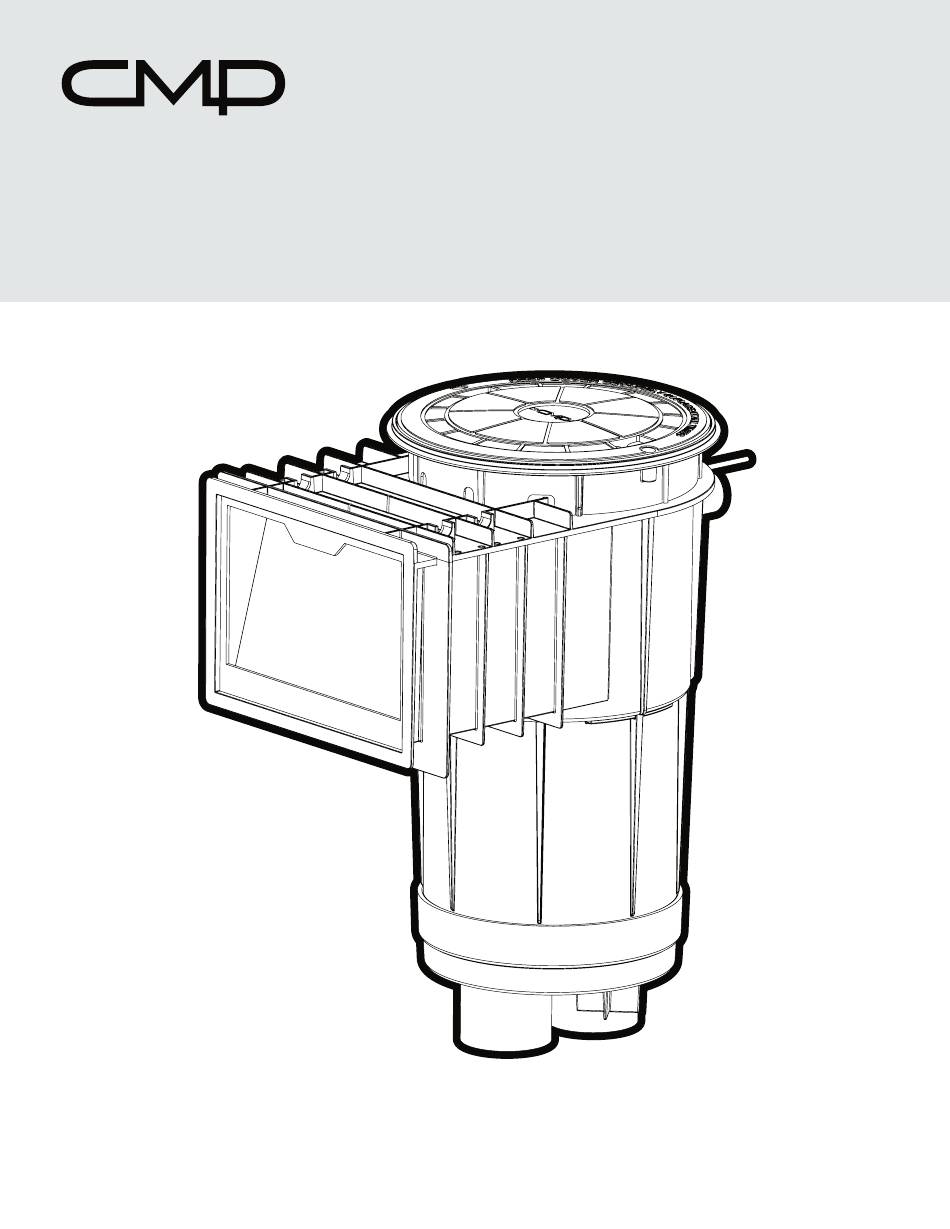

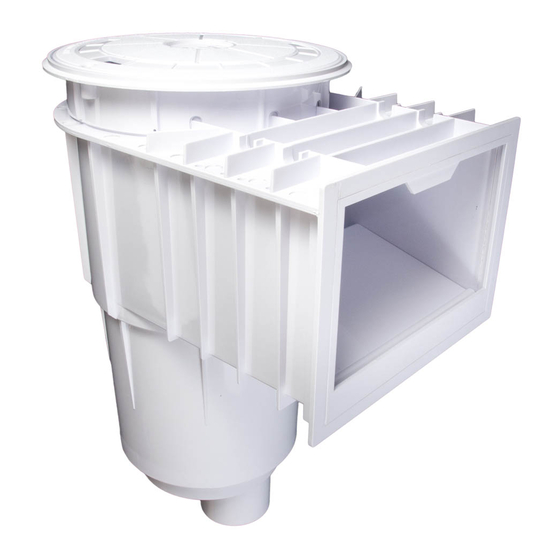

- Page 1 ® IN GROUND POOL SKIMMER INSTRUCTIONS INSTALLATION INSTRUCTIONS & PRODUCT MANUAL 25100-XXX-XXX 25120-XXX-XXX 25140-XXX-XXX C-M-P.COM 90500-025-120 RevC...
-
Page 2: Safety Instructions And Precautions
A. SAFETY INSTRUCTIONS & PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS. READ AND FOLLOW ALL INSTRUCTIONS CAUTION Follow all applicable local and national regulations (e.g. NEC, CEC whichever is applicable) during installation of the skimmer. DANGER Plug equalizer line with plug using NSF listed PVC cement. Do not stick hand into the skimmer pipe below the basket while the pump is running. -
Page 3: Installation
B. INSTALLATION Your CMP Skimmer includes the following: • Skimmer Body • Skimmer Collar & Cover • Weir Door • Float Valve (select models) • Debris Basket 1. DECK & POOL PLACEMENT • For optimum skimmer functionality, the skimmer should be placed relative to the prevailing wind and water flow direction. - Page 4 B. INSTALLATION 3. OPTIONAL OVERFLOW PORTS ( FIG 2 ) • Two overflow ports are provided on the rear of the skimmer, one for 3/4in pipe and one for 1 in pipe • The ports are sealed from the factory. To utilize an overflow port, drill out using a 3/4in hole saw. •...
-
Page 5: Operation
C. OPERATION 1. OPERATION FOR ALL SKIMMERS • Water is pulled through the skimmer by the suction of the pump. Water flow carries floating debris into the skimmer where it is collected in the skimmer basket. • The floating weir creates a better water flow and increases efficiency. •... -
Page 6: Maintenance
Optionally fill plumbing lines with foam rope/backer rod to protect from freeze damage. • Use a CMP Winterizing tube to prevent freeze damage from accumulated water. WEIR: Periodically check weir for free operation. Replace if damaged or worn. STRAINER BASKET: Check strainer basket every few days for accumulated leaves, debris, etc. Empty basket as required. Reset float valve if it closed. - Page 7 E. DIMENSIONS 11-5/16" 15-3/8" 15/16" 1-1/2" 5-1/4" 7-3/8" 8-1/2" 20-1/4" 5-3/4" 11-3/8" 3-9/16 10 7/16" 10-1/4" 10 7/16"...
- Page 8 Record Information on this System Below & Keep for Your Records Installer _______________________________________________________________ Purchased From _______________________________________________________ Installation Date _____________________________ Model Number ______________________________ Pool Size in Gallons __________________________ CMP Customer Service & Tech Support Toll Free: 1-800-733-9060 FAX: 770-732-7115 support@c-m-p.com Warranty Questions RMA@c-m-p.com Support Resource &...
