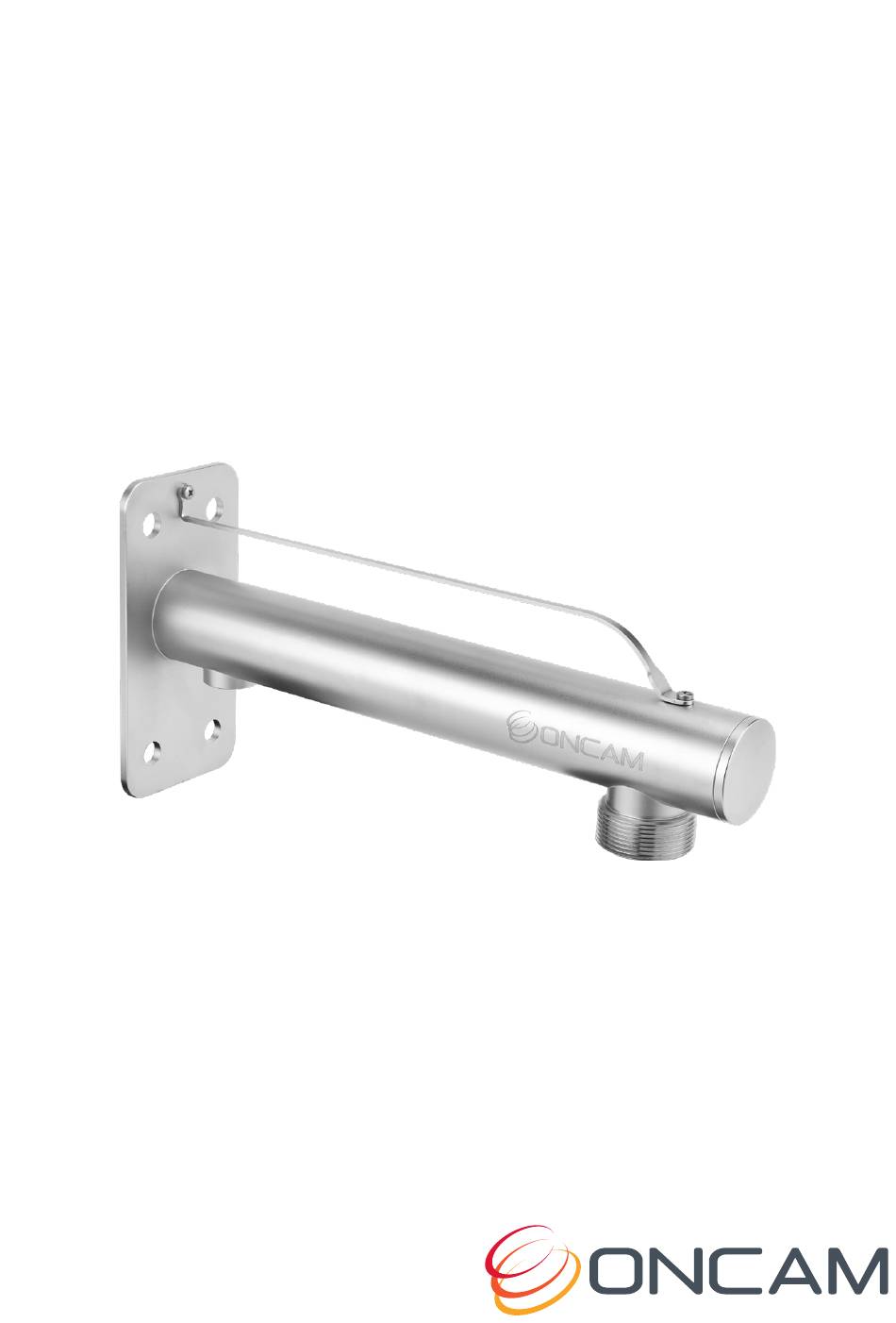

- Page 1 Evolution Stainless Steel Pendant Arm - Wall Mount QUICK START GUIDE...
- Page 2 Failure to use the Anti-Bird Roost Bar may lead to birds roosting on the arm which may lead to faeces damaging or affecting the structural integrity of the arm and camera. OBE-20-SPA Electropolished marine grade 316L stainless steel Material 2.2 kg (4.9 lbs)
-
Page 3: Box Contents
STAINLESS STEEL PENDANT ARM BOX CONTENTS Pendant Arm Anti Bird Roost Bar Screws Pendant Arm Cap Penny Washers Anti Bird Roost Bar Conduit Cap... -
Page 4: Wall Mount Installation
WALL MOUNT INSTALLATION Ø10 Ø3/8" DRILL ALL 5 HOLES FIXING = 10mm or 3/8". P R I N T AT 100% SCALE WIRE = 3/8" Ø10 mm Ø DRILLING [1.0"] 25.4 TEMPLA TE 20mm ETHERNET CABLE USE APPROPRIATE M10 OR 3/8” WALL FIXINGS * (NOT SUPPLIED) SCREW ON PENDANT ARM CAP... - Page 5 WALL MOUNT WITH CONDUIT INSTALLATION Ø10 Ø3/8" FIXING = 10mm or 3/8". P R I N T AT 100% SCALE WIRE = 3/8" Ø10 mm Ø DRILLING [1.0"] 25.4 TEMPLA TE 20mm DRILL 4 CORNER HOLES ONLY ETHERNET CABLE...
- Page 6 USE APPROPRIATE M10 OR 3/8” WALL FIXINGS SCREW ON PENDANT ARM CAP * (NOT SUPPLIED) M20 OR 3/4” NPT...
- Page 7 OPTIONAL ACCESSORY POLE MOUNT OBE-20-SPP - Evolution Stainless Steel Pendant Arm Pole Mount OBE-20-SPP Electropolished marine grade 316 stainless steel Material 0.89 kg (1.96 lbs) Weight...
- Page 8 OPTIONAL ACCESSORIES - CORNER MOUNT OBE-20-SPC - Evolution Stainless Steel Pendant Arm Corner Mount OBE-20-SPC Material Electropolished marine grade 316 stainless steel Weight 1.65 kg (3.65lbs)
