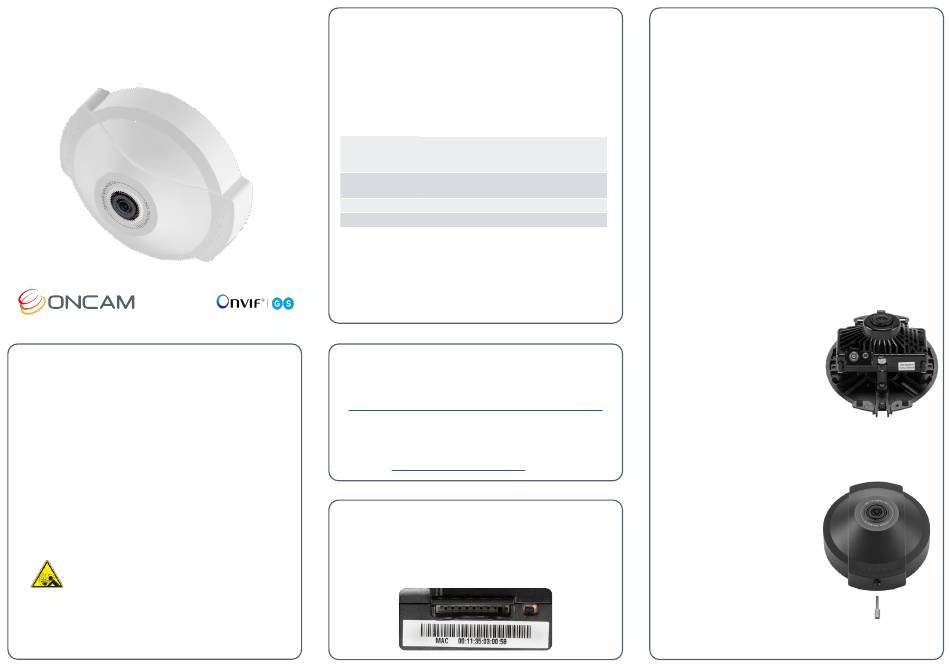

Oncam EVO-12-NID Quick Start Manual

Evolution 12 Indoor Camera
QUICK START GUIDE
Important
• Read these instructions carefully before
installing or operating this camera.
• This camera should be installed by a qualified
service person and the installation should
conform to local and national regulations.
• This camera is not suitable for installation in
a ceiling void that is used as an air handling
space.
• Certified as FCC Class A. In a domestic
environment this camera may cause radio
interference in which case the user should take
adequate measures.
DANGER: RISK OF EXPLOSION IF
REPLACING A BATTERY WITH AN
INCORRECT BATTERY TYPE.
Welcome

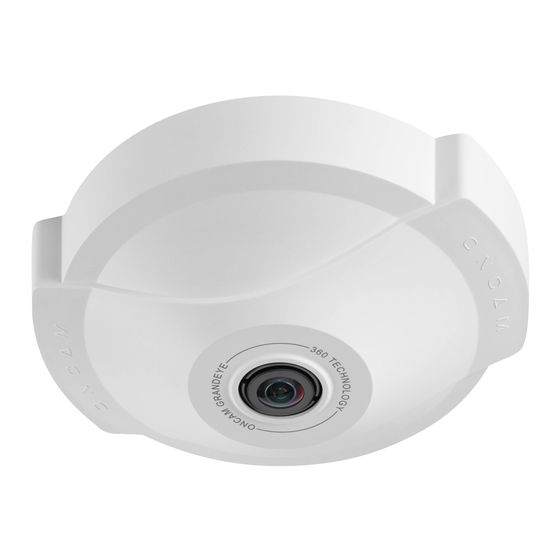

The Oncam Evolution 12 Indoor 360° camera is designed
to be connected to an IP network. Configure and operate
the camera using a standard internet browser.
Described are the installation and configuration
procedures for a standard surface mount camera
application.
Power Input
Operating
Temperature
Enclosure
Weight
Supplied Parts
EVO-12-NID
• EVO-12 Camera
• Surface Mounting Plate
• Trim Cover
Technical Support
For the A&E, Specification, Installation and User Manual,
Software and Firmware visit:
www.oncamgrandeye.com/resources/product-downloads/
Tel: UK +44 (0)20 7371 6640
US +1 978 735 4860
Email: support@oncamgrandeye.com
MAC Address
Document the camera's installation location and unique
MAC address. Find the MAC address printed on the
camera label. This information may be needed during the
camera configuration.
12 VDC, 1.0 A (min) LPS, NEC Class 2
power supply or Power over Ethernet (PoE),
IEEE standard 802.3af
0 to +40°C (-32 to +104°F)
Polymer
0.72 kg (1.59 lbs)
• Quick Start Guide
• Drilling Template
Installation & Mounting
The Evolution Indoor camera is intended for surface
and pendant mount applications. Route cables in the
enclosure from either the back or side.
Using the optional Pendant Mount, attach the camera
directly to any length of pipe (1 1 / -inch NPT diameter).
2
Preparation
1. Using the Torx driver (provided), unscrew the side
Torx screw then carefully unclip the plastic trim cover.
2. Carefully remove the dome cover removing the
camera module.
Installation
1. Using the drilling template, drill mounting holes.
2. Pull wires through the center hole.
3. Attach the Mounting Plate with appropriate fasteners.
NOTICE: Ensure the fasteners are appropriate
for the surface material and support at least four
times the weight of the camera and assembled
enclosure.
4. Secure the Mounting Plate
to the surface.
Note: Considering the
orientation of the fisheye
image, consider the
thumbscrew equal to the
fisheye image top.
5. Connect the Ethernet cable and wiring. Remove the
alarm connector (if used) to facilitate connection.
6. Install the Camera Module by rotating the camera into
the clip in the Mounting Plate.
7. Fasten the Camera module
with the thumb screw.
8. Attach the Trim Cover over
the Mounting Plate by
aligning the two section
guides. Ensure wires travel
around the lens.
9. Install the Torx screw.
10. Apply power.
11. Remove the protection film
from the camera lens.
