AXMINSTER WORKSHOP AW1400B Original Instructions Manual page 7

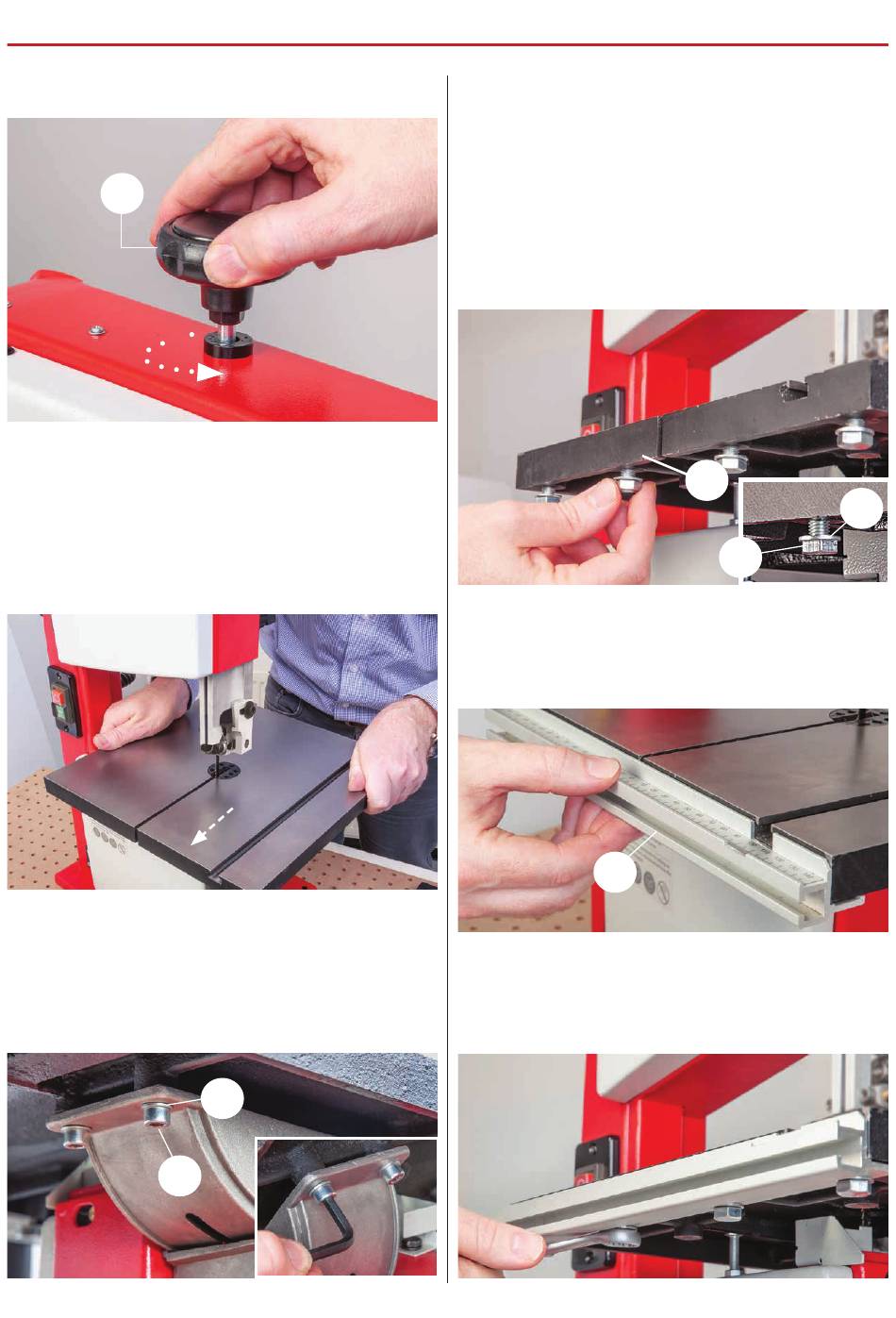

Fig 01
A A
Step 1 Locate the bandsaw table (B), the four M6
caphead screws (G) and washers (H). Slot the blade
into the table's slot and line up the threaded holes
in the table with the pre-drilled holes on the tilt
quadrant, see fig 02.
Fig 02
Step 2 Place a washer (H) over each M6 caphead
screw (G),screw the caphead screws through the
tilt quadrant into the table and tighten using the
supplied spanner, see fig 03.
Fig 03
G G
H H
Fitting the Fence
Step 1 Locate the fence rail (C), fence assembly (D),
four M8 bolts (I) and washers (J). Place a washer over
the end of each bolt and lightly screw the bolts into
the threaded holes beneath the front of the table (B),
see fig 04. NOTE: Leave sufficient distance between
the bolt head and table for mounting the fence
rail.
Step 2 Find the fence rail (C), line up the half moon
cutouts with the four bolts in the table and insert the
fence rail up against the table (B), see fig 05.
C C
Secure the fence rail (C) in position by tightening the
four bolts with the supplied spanner, see fig 06.
7
ASSEMBLY
Fig 04
B B
J J
I I
Fig 05
Fig 06
Continues Over...
