AXMINSTER WORKSHOP AW1400B Original Instructions Manual page 6

SPECIFICATION
Code
Model
Rating
Power
Blade Speed
Blade Length
Blade Width Min/Max
Max Width of Cut
Max Depth of Cut
Max Width of Cut with Fence
Airflow
Table Size
Table Tilt
Table Height
Wheel Diameter
Dust Extraction Outlet
Overall L x W x H
Weight
Please read the Instruction Manual prior to using your new machine; as well as the operating procedures for
your new machine, there are numerous hints and tips to help you to use the machine safely and to maintain
its efficiency and prolong its life.
Keep this Instruction Manual readily accessible for any others who may also be required to use the
machine.
ASSEMBLY

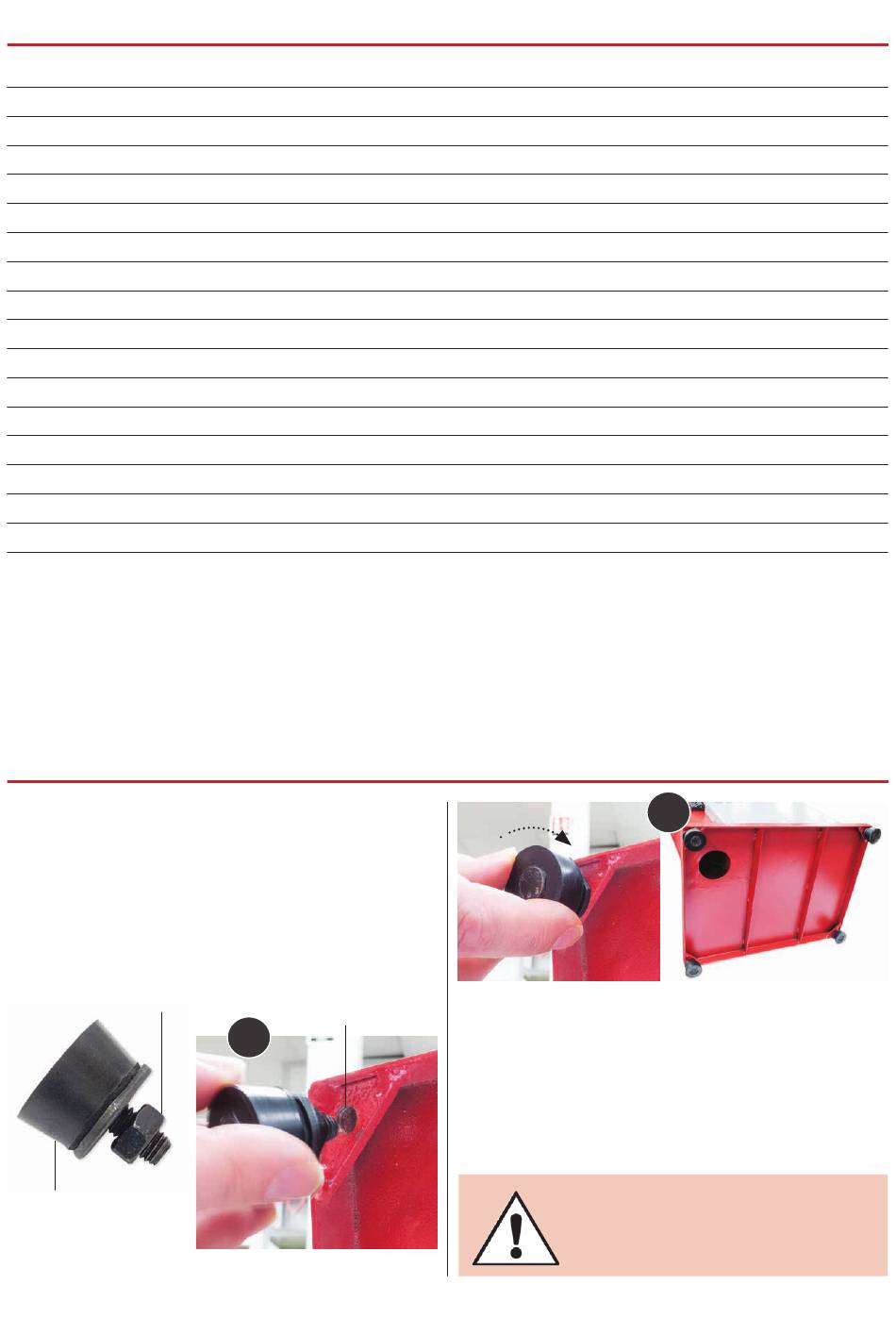

Fitting the Rubber Feet
Locate the four adjustable rubber feet (M), screw
each foot in turn into each corner to the underside of
the bandsaws base, see fig A & B. Stand the bandsaw
upright, adjust each foot until the bandsaw is level.
Nip-up the locking nuts against the frame to secure
in position.
Locking nut
Thread rubber foot
Mounting
bracket
A
Fitting the Table
NOTE: The table can be fitted without removing the
bandsaw blade. However, if you feel safer with the
bade removed, loosen the blade tensioning knob
(A),see fig 01 and very carefully remove the blade. To
refit the blade refer to pages 18-19 for "Changing the
Saw Blade" .
WARNING! WE ADVISE YOU
WEAR GLOVES AS THE BLADE
HAS SHARP TEETH!
6
250W 230V 1ph
800 m/min
4.8 mm (3/16") to 9.5 mm (3/8")
200 m3/hr
300 x 300 mm
450 x 430 x 700 mm
B
107710
AW1400B
Workshop
1,400 mm
200 mm
80 mm
102 mm
0-45°
290 mm
200 mm
40 mm
20 kg
