Related Manuals for enz 10.028
Summary of Contents for enz 10.028

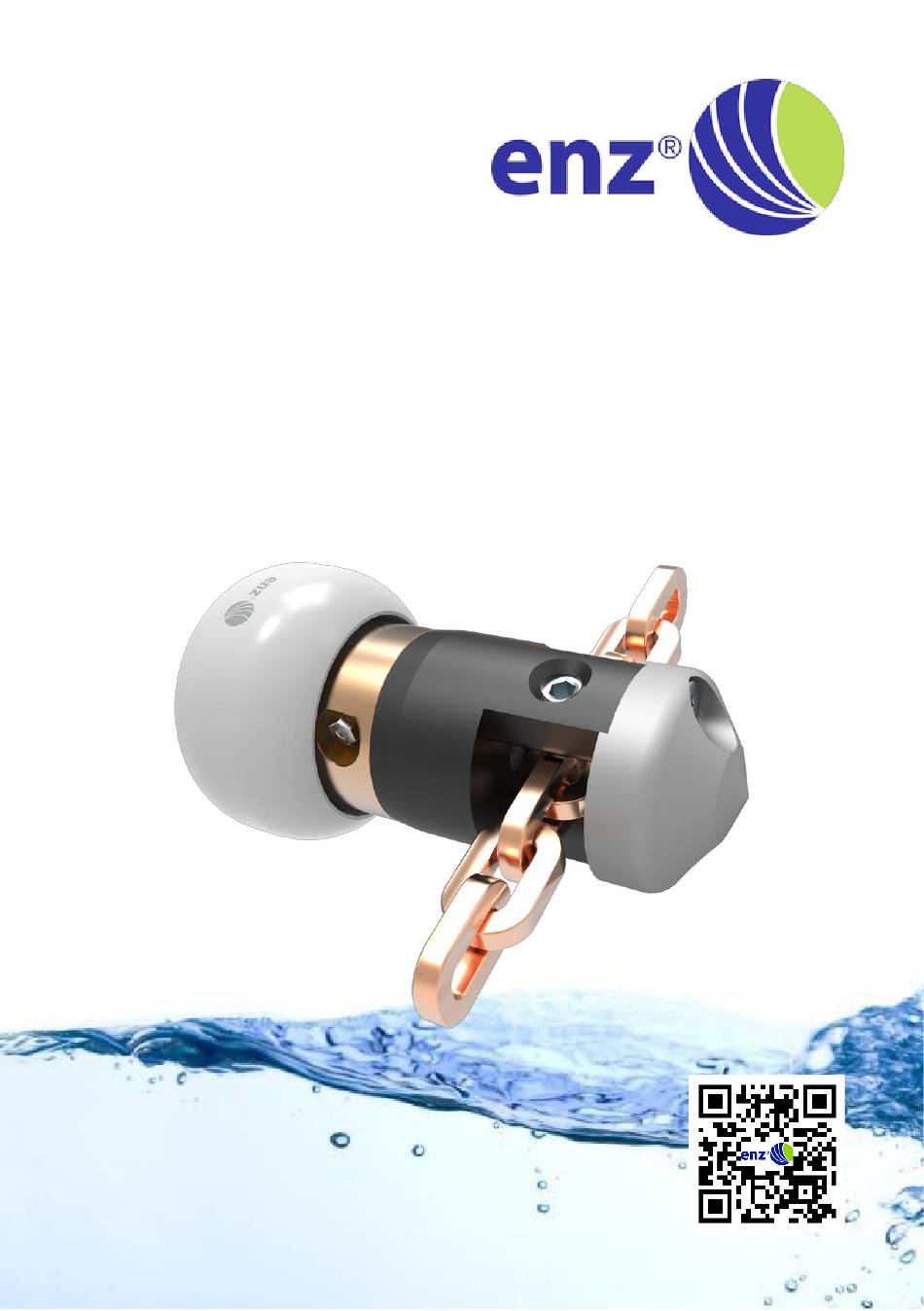

- Page 1 Wire Rope and Chain Scrapers 10.028 Operating Manual English August 22| Version 1.0 Stand 09.08.2022 Version 1.0 ©2022 enz® technik ag Seite 1 von 28...
-
Page 2: Table Of Contents
Chain scraper is prevented from rotating ..........17 5.5.2 No more forward movement ..............17 Maintenance ....................19 Maintenance after each use ...............19 Nozzle inserts .....................19 6.2.1 Replacing the nozzle inserts ..............19 Replacing parts ...................20 Page 2 of 28 ©2022 enz® technik ag State 09.08.22... - Page 3 Converting a chain scraper to milling cutter without impact .....24 Converting the milling cutter without impact to chain scraper ....25 Scope of delivery ..................26 Index ......................27 Figure ......................27 Drawing ......................27 Initials Version Revision Date created August 22 State 09.08.22 ©2022 enz® technik ag Page 3 of 28...
-
Page 4: Preface
If the manual is misplaced or destroyed, a new copy can be requested from your near- est dealer or from the manufacturer directly. Page 4 of 28 ©2022 enz® technik ag State 09.08.22... -
Page 5: Safety
Any additional mainte- nance and service work may be performed only by qualified specialist personnel from the manufacturer. Please refer to the section on "Maintenance". State 09.08.22 ©2022 enz® technik ag Page 5 of 28... -
Page 6: Explanation Of General Safety Instructions
The tool may be used on the following types of pipes: PE pipes Steel pipes Concrete pipes For use in pipes made of other material, please consult the manufacturer. Page 6 of 28 ©2022 enz® technik ag State 09.08.22... -
Page 7: Safety Warnings For Modifications
Secure the hose lines in such a way that they cannot become damaged during operation. Only the accessories provided and approved by enz® technik ag may be used. No other changes or modifications to the pipe cleaning tool may be performed. Only parts authorized by the manufacturer may be used. - Page 8 Hardhat The hardhat will protect your head from falling objects and from bumping into fixed components and objects. Page 8 of 28 ©2022 enz® technik ag State 09.08.22...
-
Page 9: General Safety Instructions
Put on appropriate protective clothing. Use the protective equipment prescribed. Otherwise, you could suf- fer from chemical burns to your skin and eyes or become infected with pathogens. State 09.08.22 ©2022 enz® technik ag Page 9 of 28... - Page 10 Lines and other objects are to be expected on the ground in the area around where the product is being used. Pay attention to where you are walking. Keep the area of use tidy. Tripping and falling could cause serious injuries. Page 10 of 28 ©2022 enz® technik ag State 09.08.22...
-
Page 11: Legal
The product is used under conditions that are not permitted by us. • Replacement and accessory parts that are not original replacement and acces- sory parts from enz® technik ag are used. • If there is damage due to: Improper use... -
Page 12: Wire Rope And Chain Scrapers
Tools with Art No. 10.XXXR can be operated with recycled water. In addition, enz® chain scrapers can be modified in various ways. Simple handling and maintenance are also traits that go hand-in-hand with enz® chain scrapers. -
Page 13: Assembling The Tools
You must ensure that the appropriate nozzle sizes for cleaning the pipes are avail- able. The application range of each nozzle is listed in the "Technical data" section on Page 21. State 09.08.22 ©2022 enz® technik ag Page 13 of 28... -
Page 14: Installation
When adjusting the skid and cage settings, always use the largest possible setting for the inner sewer line diameter being worked on. Page 14 of 28 ©2022 enz® technik ag State 09.08.22... - Page 15 Always use the correct chain or rope length. The chains or ropes must drag along the pipe wall, and they must not strike the wall! Otherwise, the pipe wall or the product could be- come damaged. State 09.08.22 ©2022 enz® technik ag Page 15 of 28...
-
Page 16: Operation
When working inside a slightly damaged pipe, extreme caution must be used. Use of the tool is always at your own risk! enz® technik ag waives all liability! Page 16 of 28 ©2022 enz® technik ag... -
Page 17: After Use
A gap or relative displacement between two pipes is too large. There is a danger that the guide roller is stuck. • The wire rope or the chain has caught on something or has become wedged in a gap. State 09.08.22 ©2022 enz® technik ag Page 17 of 28... - Page 18 If the gap is more than 20 mm (0.75 inch), then the chain scraper is not suitable. Drawing 2 Maximum offset Page 18 of 28 ©2022 enz® technik ag State 09.08.22...
-
Page 19: Maintenance
4. Immediately screw the nozzle inserts into the tool body as far as they will go, then use a socket wrench to slightly tighten each insert. 5. Wait at least 24 hours until the adhesive has hardened. State 09.08.22 ©2022 enz® technik ag Page 19 of 28... -
Page 20: Replacing Parts
Defective pipes or leaking substances must be reported to the supervisory body or appropriate authority. Do not use excessive amounts of water. This will help conserve our natural resources. Page 20 of 28 ©2022 enz® technik ag State 09.08.22... - Page 21 Operating Manual Technical data Figure 3 10.028 Connecting thread 1/4" BSPP / 1/4" NPT Rotating nozzles/Holes 3 x M4 Thrust jet 3 x M4 Recycling 0.9 kg Weight 1.98 lb 40 – 100 mm Aplication range 2 – 4 inch...
- Page 22 Technical data Operating Manual Page 22 of 28 ©2022 enz® technik ag State 09.08.22...
- Page 23 Operating Manual Technical data Drawing 4 All chains for 10.028 Replacing the chain: 1. Determine the correct chain length using Drawing 4. 2. Loosen screw 619.0612 SPEZ and remove the old chain. 3. Clean the threaded hole. 4. Place the new chain and tighten the screw.
- Page 24 Technical data Operating Manual The cage cannot be adjusted on the 10.028. Using the accessory parts supplied, the chain scraper 10.028 can be converted to a milling cutter without impact. Follow the following steps: 1. Undo the two cylinder head screws (Art.
- Page 25 (red) points against the chain. Figure 5 Plastic guide assembly Leave the Loctite to dry for at least 24 hours at room temper- ature. State 09.08.22 ©2022 enz® technik ag Page 25 of 28...
- Page 26 0010.028K (0.5 Meter) Set link chains 0010.0285M Cover with cutter C127 Hex key 3 mm Threaded pin for 617.0612SPEZ chain 0010.0286 Plastic guide 09.001028 Tool case Cylinder screw 3.0406T with Tuflok Page 26 of 28 ©2022 enz® technik ag State 09.08.22...
- Page 27 Figure 5 Plastic guide assembly ..................25 Drawing 1 Chain length greater than pipe Ø ..............15 Drawing 2 Maximum offset..................18 Drawing 3 Explosion 10.028 ..................22 Drawing 4 All chains for 10.028 ..................23 State 09.08.22 ©2022 enz® technik ag Page 27 of 28...
- Page 28 Schwerzbachstrasse 10 CH-6074 Giswil / Switzerland Tel. +41 41 676 77 66 info@enz.com www.enz.com Stand 09.08.2022 Version 1.0 ©2022 enz® technik ag Seite 28 von 28 enz® technik ag Schwerzbachstrasse 10...
