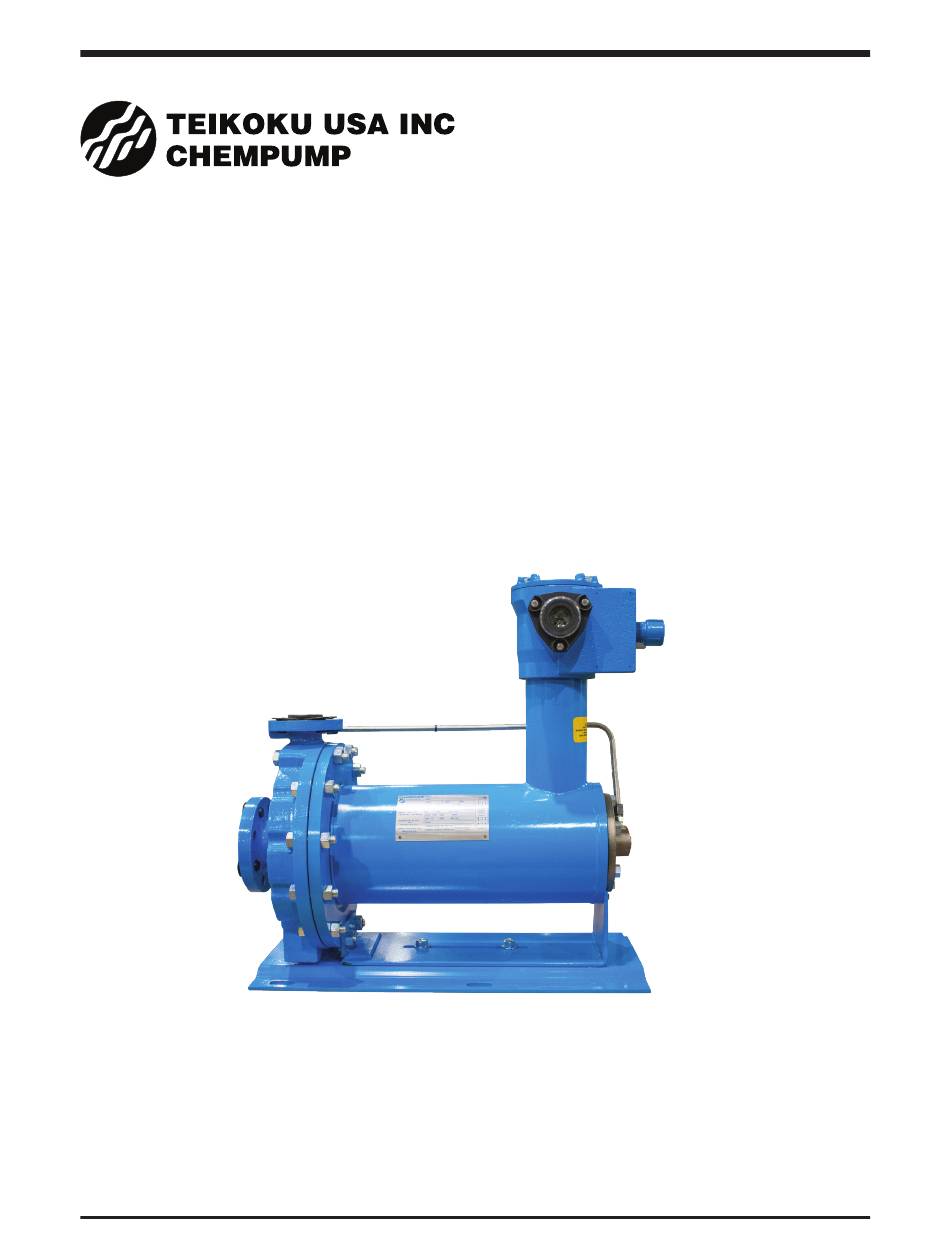

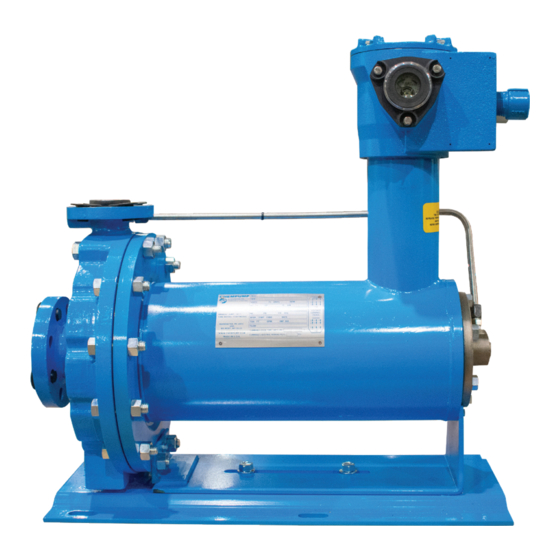

  • Page 1 CHEMPUMP G-SERIES Sealless Canned Motor Pump With Teikoku Rotary Guardian (TRG) INSTRUCTION MANUAL for Installation, Operation, and Maintenance JUNE 2019...

  • Page 2: Introduction

    Indicates careful attention is required. The instruc- This product is warranted for two years from date of delivery. tion includes protective information for the device and Please refer to Teikoku USA’s Terms and Conditions of Sale for product. additional warranty coverage and restrictions.
  • Page 3 If published procedures are not available, check The internal pressure can be higher than the atmosphere. with Teikoku before operating the equipment. Ensure that the pump and motor are properly de-pressur- ized and decontaminated prior to performing any work.

  • Page 4: Table Of Contents

    Figure 1-7. Automatic Thrust Balance, Single Ring ....8 4. Maintenance Figure 1-8. Automatic Thrust Balance, Double Ring ....8 Figure 2-1. Easy Maintenance Base ........10 Appendix Figure 2-2. Teikoku TRG Bearing Wear Monitor ......11 Appx A. TRC-1 Information Sheet ........29 Figure 2-3. Back-Flush System ..........14 Appx. B.

  • Page 5: Overview

    G-Series are capable of pumping fluids from -400ºF to 1000ºF and working pressures up to 5000 psi. As with all Teikoku products, no special tools, foundations, leveling or alignment are required for installation. Teikoku USA | Chempump...

  • Page 6: General Information

    If you doubt the pump selection or application, email or call your the motor, moves forward to lubricate the front bearing and then Teikoku application representative or the factory for assistance exits the motor section through the front bearing housing. The and advice.

  • Page 7: Figure 1-3. Bearings - G-Series Sleeved Type

    Figure 1-3. Bearings – G-Series Sleeved Type 1.5 Thrust Surfaces All Teikoku models equipped with thrust surfaces provide a replaceable bearing surface against which axial loads can be carried during upset conditions. This arrangement provides two thrust surfaces between the impeller and rotor assembly. These...

  • Page 8: Figure 1-7. Automatic Thrust Balance, Single Ring

    See Figure 1-8. Automatic Thrust Balance, Double Ring Figure 1-8. Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 9: Installation

    For additional design points, refer to the corresponding performance curves 6. Do not spring piping when making up any connections. placed in the Appendix of this manual. Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 10: Figure 2-1. Easy Maintenance Base

    When necessary to connect two or more pumps to the same suc- each meter will show subtle differences. To check bearing wear tion line, provide gate valves so that any pump can be isolated Figure 2-1. Easy Maintenance Base Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 11: Figure 2-2. Teikoku Trg Bearing Wear Monitor

    In order to provide complete protection for G- The Teikoku Rotary Guardian (TRG) signal is affected by motor Series motors under all conditions, it is recommended that “quick load. Changes in operating frequency or hydraulic load may in- trip”...

  • Page 12: Table 2-3. G-Series Electrical Data

    (V/F) and frequencies should be limited to the range of 25-65 Hz. Operation at 65 Hz assumes the motor will not oper- ate in an overload condition. For frequencies beyond these limits please consult Teikoku Application and Engineering personnel. Table 2-3. G-Series Electrical Data Full Load Ratings...

  • Page 13: Table 2-5. Electrical Wiring Data

    GVD, GVE, GVHS, GG, N2S 3450 200 (100) 1-1/4 35.8 GVM (1150 rpm) 1150 7-1/2L 1750 GVM (1750 rpm) 1750 60 (30) 15.4 1750 60 (30) 20.2 3450 1-1/4 46.0 3450 1-1/4 57.5 3450 1-1/4 69.0 Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 14: Figure 2-3. Back-Flush System

    Table 2-8, below. Table 2-9. Circulating Tube Sizes Model Tube Size GA, GB, GC,GVBS, GLD 1/4" O.D. x 0.035 Wall GVD, GVE, GVHS, GG, GVM, N2S 3/8" O.D. x 0.035 Wall Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 15: Figure 2-4. Reverse Circulation

    Insulated couplings or nonconductive plastic piping must be used in the primary suction and discharge lines. The pump must be isolated electrically from the tank, and sepa- rately grounded as shown in Figure 2-6. Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 16: Figure 2-7. Jacketed Circulation Tube

    Similar to the water jacket in every respect except for the pro- vision of corrosion-resistant tubing, heat exchangers, whether removable, or welded-on, are provided on Teikoku applications that require heating or cooling the fluid before it enters the rotor chamber. Heat exchangers are especially recommended for liquids with low specific heat characteristics.

  • Page 17: Figure 2-8. Removable Water Jacket

    Figure 2-8. Removable Water Jacket Figure 2-9. Removable Heat Exchanger Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 18: Operation

    It is recommended to install a temporary cone-style strain- they typically will not meet Teikoku’s pressure and time delay rec- er near the suction port to trap scale and other foreign ommendations.

  • Page 19: Figure 3-1. Teikoku Rotary Indicator Trc-1

    The Teikoku TRC-1 hand-held direction of rotation indicator is available from Teikoku USA. This portable device can be used to 7. Once direction of rotation has been verified, stop the pump confirm the rotation of any motor.
  • Page 20 Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 21: Maintenance

    See Table 4-2. (The rear bearing, because of its position, page will not usually experience axial wear). Should the front bearing length be below the unit of when new dimension, replace with a Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 22: Table 4-2. Bearing Journal Dimensions

    The G-Series pump requires no external lubrication. Bearing sur- faces and other parts are lubricated and cooled by the fluid being On Teikoku pumps with thrust bearings, the end play tolerances pumped. are slightly different than new thrust bearing pumps. In GA, GB and GC models the thrust is taken from the large flange on the 4.4 Cooling...

  • Page 23: Table 4-5. Disassembly Tools: Ga, Gb, Gc, Gvbs

    7/16" Open end, box end wrench for bearing 16. A check for bearing wear can be made at this time. Refer to assembly retainer screws Table 4-2. Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 24: Table 4-7. Disassembly Tools: Gld

    BE SURE TO TAKE UP 5. Remove circulating tube, back-flush piping, or reverse circula- EVENLY ON ALL BOLTS SECURING BEARING HOUSING. Oth- erwise, the housing may skew and misalignment may occur, tion piping, if so equipped. Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 25: Figure 4-1. Parts

    In this case, the upper half on the base is used as a stand to protect the parts. Teikoku USA | Chempump Instruction Manual G-Series...
  • Page 26 Proper service will be facilitated with the prop- Bearing Housing Screw lock washer er submittal of a Teikoku Field Service Report Form. These forms are available from the factory , from the Teikoku field representatives, and from this instruction manual Ap- pendix.

  • Page 27: Table 4-9. Phase To Phase Resistance Values

    0.08 0.80 0.06 3.20 0.24 5.00 0.38 7-1/2L 0.58 0.06 7-1/2L 2.31 0.25 7-1/2L 3.61 0.38 0.05 0.06 2.03 0.24 3.17 0.38 0.04 0.06 1.40 0.20 2.20 0.30 *RESISTANCE VALUES AT 25˚ C Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 28: Appendix

    Appx. N. Sectional View GVD, GVE, GVHS .........42 Appx. O. Sectional View N2S ..............43 Appx. P. Terminal Box Assembly ............44 Appx. Q. Decontamination Certification and Flushing Procedure ..45 Appx. R. Repair Receipt Policy ............48 Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 29: Appx A. Trc-1 Information Sheet

    The design of canned motor pumps is such that the rotating element cannot be seen while it is in operation. For this reason, Teikoku supplies an internal rotation indicator with a majority of our pumps. However, there are some instances where this device is not supplied, so we recommend purchasing the TRC-1.

  • Page 30: Appx. B. Troubleshooting

    Make sure pump is operating at design point and conditions specified Motor operating at overload condition. when purchased. Pump is operating below minimum flow. Increase flow through the pump. Pump is running dry. Check suction line for obstructions and closed valves Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 31: Appx. C. Engineering Data Sheet 34E

    GN

 CONSULT




FACTORY
 GP
 GPS
 GRS


 Torque
Values:
 Torque
should
be
applied
to
bolt
sets
in
increasing
increments
 until
these
values
are
reached,
and
in
an
evenly
distributed
 “star”
pattern.

These
values
are
for
the
standard
Chempump
 product
line
using
Teflon
envelope
gaskets,
standard
bolting
 and
150
or
300
psi
design.

For
other
configurations
and
 applications,
please
consult
the
factory.


 Impeller
Nut

 Torque
Values:
 56
Frame

 12
Ft‐Lbs.







 180
Frame


 75
Ft‐Lbs.
 Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 32: Appx. D. Curve - Ga(T) Model

    22.5 1K(1.5kw) 1.5K(2.5kw) 21.0 19.5 5" 18.0 4 3/4" 16.5 4 1/2" 15.0 4 1/4" 13.5 4" 12.0 3 3/4" 10.5 3 1/2" NPSH M3/HR CURVE REV. DRAWN DATE A-70059 10-16-79 Teikoku USA | Chempump Instruction Manual G-Series Page A-4...

  • Page 33: Appx. E. Curve - Gb(T) Model

    16.5 1.5K(2.5kw) 15.0 6 1/2" 6 1/4" 13.5 6" 12.0 5 3/4" 5 1/2" 10.5 5 1/4" 5" NPSH 0.00 2.25 4.50 6.75 9.00 11.25 13.50 M3/HR CURVE REV. DRAWN DATE A-70058 09-26-79 Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 34: Appx. F. Curve - Gc(T) Model

    1.7, consult your Chempump representative or the factory. 1.5K(2.5kw) 3K(4.4kw) 5k(5.9kw) 5" 4 3/4" 4 1/2" 4 1/4" 4" 3 3/4" (W/INDUCER) NPSH 13.5 18.0 22.5 27.0 31.5 36.0 40.5 45.0 M3/HR CURVE REV. DRAWN DATE A-70060 12-12-79 Teikoku USA | Chempump Instruction Manual G-Series Page A-6...

  • Page 35: Appx. G. Curve - Gvbs(T) Model

    6 1/4" 22.5 6" 21.0 19.5 5 1/2" 18.0 16.5 5" 15.0 13.5 4 1/2" 12.0 10.5 4" NPSH (W/INDUCER) 13.5 18.0 22.5 27.0 31.5 36.0 M3/H CURVE REV. DRAWN DATE A-70066 11-18-86 Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 36: Appx. H. Curve - Gvd(T) Model

    7.5K(11.0kw) 10K(15.5kw) 8" 7 1/2" 7" 6 1/2" 6" 5 1/2" 5" NPSH (W/INDUCER) 13.5 18.0 22.5 27.0 31.5 36.0 40.5 45.0 49.5 54.0 M3/H CURVE REV. DRAWN DATE A-70061 12-16-80 Teikoku USA | Chempump Instruction Manual G-Series Page A-8...

  • Page 37: Appx. I. Curve - Gve(T) Model

    Please note that this is merely a short cut method to estimate the model required. For proper model selection, especially when handling a fluid with a Sp. Gr. greater than 1.7, consult your Chempump representative or the factory. 10K(15.5kw) 15K(20.0kw) 20K(27.0kw) 8" 7 1/2" 7" 6 1/2" 6" 5 1/2" 7.5K(11.0kw) NPSH (W/INDUCER) M3/H CURVE REV. DRAWN DATE A-70037 04-26-72 Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 38: Appx. J. Curve - Gvhs(T) Model

    15K(20.0kw) 10K(15.5kw) 16.5 9 1/2" 20K(27.0kw) 15.0 9" 13.5 8 1/2" 12.0 8" 10.5 7 1/2" 7" 7.5K(11.0kw) NPSH (W/INDUCER) 13.5 18.0 22.5 27.0 31.5 36.0 40.5 DRAWN CURVE REV. DATE A-70057 09-16-75 Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 39: Appx. K. Curve - N2S 10, 15, & 20K

    1.7, consult your Chempump representative or the factory. 8-1/2" 8-1/4" 8" 7-3/4" 7-1/2" 7-1/4" 7" 6-3/4" 20K(27kW) 10K(15.5kW) 15K(20kW) NPSH CURVE REV. DRAWN DATE A-70067 04-23-86 Rev 2 - Computer Generated Curve Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 40: Appx. L. Curve - N2S 30, 40, & 50K

    1.7, consult your Chempump representative or the factory. 9-1/8" 30K(34kW) 50K(51kW) 9" 40K(42kW) 8-3/4" 8-1/2" 8-1/4" 8" 7-3/4" 7-1/2" NPSH CURVE REV. DRAWN DATE A-70068 04-23-86 Rev 2 - Computer Generated Curve Teikoku USA | Chempump Instruction Manual G-Series Page A-12...

  • Page 41: Appx. M. Sectional View Gvbs

    Appx. M. Sectional View GVBS Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 42: Appx. N. Sectional View Ga, Gb, Gc

    Appx. N. Sectional View GA, GB, GC Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 43: Appx. O. Sectional View Gvd, Gve, Gvhs

    Appx. O. Sectional View GVD, GVE, GVHS Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 44: Appx. P. Sectional View N2S

    Appx. P. Sectional View N2S Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 45: Appx. Q. Terminal Box Assembly

    Appx. Q. Terminal Assembly Box Teikoku USA | Chempump Instruction Manual G-Series...

  • Page 46: Appx. R. Decontamination Certification And Flushing Procedure

    The pump has been flushed by following steps A through Both the complete pump and the stator assembly have A3 of the Teikoku USA Flushing Procedure on page 2 of been flushed by following steps A through B3 of the this form.
  • Page 47 Decontamination Form pg. 2 DECONTAMINATION CERTIFICATION AND FLUSHING PROCEDURE FLUSHING PROCEDURES FOR TEIKOKU USA PRODUCTS THE FOLLOWING FLUSHING PROCEDURES ARE REQUIRED TO ALLOW FOR MAXIMUM REMOVAL OF PROCESS FLUIDS. COMPLETE PUMP WITH THE SUCTION FLANGE DOWN, INTRODUCE AN APPROPRIATE NEUTRALIZING FLUID THROUGH THE DISCHARGE FLANGE.
  • Page 48 FOR ALL OTHER PUMP MODELS NOT LISTED, CONTACT THE FACTORY SERVICE CENTER FOR THE PROPER DECONTAMINATION PROCEDURE. NOTE ON DECONTAMINATION: TEIKOKU USA RESERVES THE OPTION TO RETURN PUMPS, AT THE CUSTOMER’S EXPENSE, IF THEY HAVE NOT BEEN PROPERLY DECONTAMINATED. Teikoku USA | Chempump...

  • Page 49: Appx. S. Repair Receipt Policy

    Teikoku USA policy requires that an RMA be generated prior to the shipment of pumps or components to any Teikoku USA facility. With the shipment Teikoku USA also requires a copy of the RMA, a completed Teikoku USA Decontamination Form, an SDS for the process fluid to which the pumps or parts were subjected and an SDS on the decontamination flush fluid that was used to decontaminate the equipment.
  • Page 50 www.teikokupumps.com Pennsylvania Texas Ohio 959 Mearns Road 5889 Bingle Road 27881 State Route 7 Warminster PA 18974 Houston, TX 77092 Marietta, OH 45750 215-343-6000 713-983-9901 740-538-5332 HE-12270 1218...
