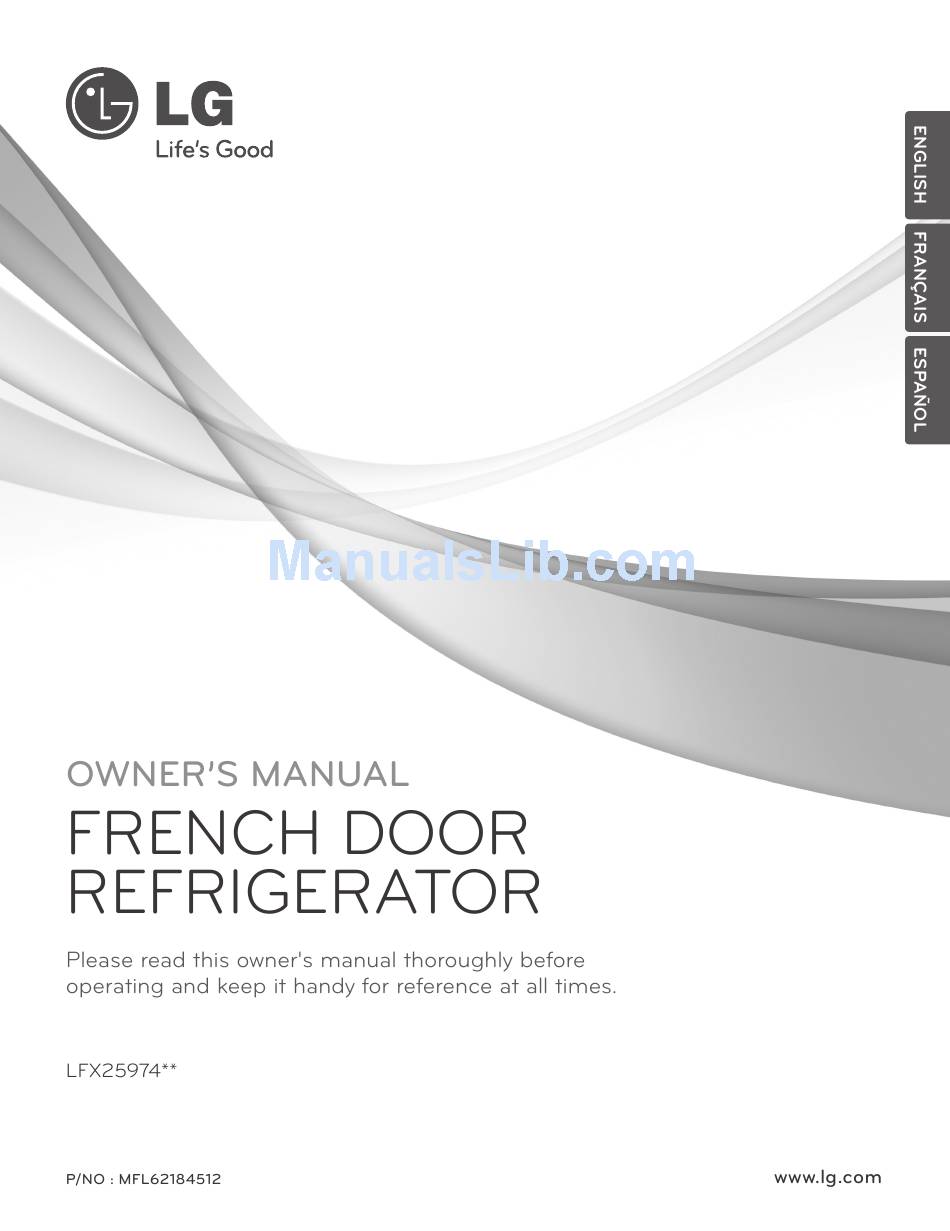

LG LFX25974 Owner's Manual

Lfx25974 series french door refrigerator
Hide thumbs Also See for LFX25974:

Advertisement

Quick Links

Download this manual See also: Service Manual

Advertisement

loading

Related Manuals for LG LFX25974

Summary of Contents for LG LFX25974

  • Page 2 Removing/Assembling the Refrigerator Door Handles Removing/Assembling the Freezer Drawer Handle Removing/Assembling the Doors and Drawers - Removing the Left Refrigerator Door - Removing the Right Refrigerator Door - Assembling the Right Refrigerator Door - Assembling the Left Refrigerator Door - Removing the Freezer Drawers...
  • Page 3 The Door Alarm function is designed to prevent refrigerator malfunctioning that could occur if a refrigera- tor door or freezer drawer remains open. If a refrigerator door or freezer drawer is left open for more than 60 seconds, a warning alarm sounds in 30 second intervals.

  • Page 4: Installation

    Power NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet. Immediately repair or replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
  • Page 5 When dispensing ice from the dispenser, do not use crystal ceramics. Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your refrigerator is in operation. Do not put glass containers, glass bottles or soda in the freezer.

  • Page 6: Maintenance

    Installation The refrigerator must be properly installed in accordance with the Installer Instructions that were taped to the front of the refrigerator. Be careful when you unpack and install the refrigerator. Immediately dispose of packing materials (plastic) out of reach of children.
  • Page 7 Use this page to become more familiar with the parts and features of your refrigerator. Page references are included for your convenience. *The appearance and specifications of the actual product may differ depending on the model. Displays the refrigerator and freezer temperature, the water filter condition and the dispenser status.
  • Page 8 The interior lamps light up the inside of the refrigerator. Used to preserve chilled food or drinks. The shelves in your re- frigerator are adjustable to meet your individual storage needs. Durabase...
  • Page 9 Automatically produces 80-130 ice cubes in a 24-hour period. Folds in when the left door is opened. The refrigerator doors and freezer drawers close automatically when you push them slightly. (The door only closes automatically when it is open at an angle of less than 30°.)
  • Page 10 The appearance and specifications listed in this manual may vary due to constant product improvements. Bottom-freezer refrigerator model LFX25974 Description French door refrigerator Electrical requirements 115 VAC @ 60 Hz Min. / Max. Water pressure 20 -125 PSI (1.4 - 8.4 kgf/cm Dimensions 35 3/4"...
  • Page 11 Allow at least 24 inches (61 cm) in front of the refrigerator to open the doors and at least 2 inches (5.08 cm) between the back of the refrigerator and the wall.
  • Page 12 Removing the doors is always recommended when it is necessary to move the refrigerator through a nar- row opening. If it is necessary to remove the handles, follow the directions below. Loosen the set screws with a in. Allen wrench and remove the handle.
  • Page 13 Use two or more people to remove and install the refrigerator doors. Failure to do so can result in back or other injury. Disconnect the electrical supply to the refrigerator before installing.
  • Page 14 Open the door. Remove the top hinge cover screw (1). Lift up the cover (2). Remove the cover. Rotate the hinge lever (3) clockwise. Lift the top hinge (4) free of the hinge lever latch (5). Lift the door from the middle hinge pin and remove the door.
  • Page 15 Install the left refrigerator door after the right door is installed. Lower the door onto the middle hinge pin. Fit the top hinge (7) over the hinge lever latch (8) and into place. Rotate the lever (6) clockwise to secure the hinge.
  • Page 16 The top, middle and bottom drawers are all removed in the same way. In the following figures, the Pullout Drawer located above the freezer drawer is not shown for clarity. Use two or more people to remove and install the freezer drawer.
  • Page 17 With both hands, pull out each rail simultaneously until both rails are fully extended. Hook the door support 1 into the rail tabs 2 on both sides. Lower door into final position and tighten the screws 3 . Make sure you have the correct rail cover for each side. Align the tabs on the covers with the assembly holes on each rail, and snap the rail covers in place to secure.

  • Page 18: Water Pressure

    This water line installation is not covered by the refrigerator war- ranty. Follow these instructions carefully to minimize the risk of expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and can lead to water leakage or flooding.
  • Page 19 Be sure there is sufficient extra tubing (about 8 feet coiled into 3 turns of about 10 in. diameter) to allow the refrigerator to move out from the wall after instal- lation. CONNECT THE TUBING TO THE VALVE...
  • Page 20 PLUG IN THE REFRIGERATOR Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back to the wall. START THE ICEMAKER Set the icemaker power switch to the ON position.
  • Page 21 Remove the base grille. Refer to the Base Grille Installation section. Turn the leveling leg to the left to raise that side of the refrigerator or to the right to lower it. It may take several turns of the leveling leg to adjust the tilt of the refrigerator.
  • Page 22 Running the automatic icemaker before connecting it to the water supply may cause the refrigerator to malfunction. Allow your refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling.
  • Page 23 The Energy Saving function disables the mullion heater located on the refrigerator door in order to conserve electric- ity. Press and hold the Energy Saving button for three sec- onds to activate or deactivate this function.
  • Page 24 OFF and the Alarm function will deactivate. When either the refrigerator or the freezer door is left open for more than 60 seconds, the alarm tone will sound to let you know that the door is open.
  • Page 25 Keep the ice compartment door closed tightly. If the ice compartment door is not closed tightly, the cold air in the ice bin will freeze food in the refrigerator compartment. This could also cause the icemaker to stop producing ice.
  • Page 26 * Depending on the model, some of the following functions may not be available. Ice is made in the automatic icemaker and sent to the dis- penser. The icemaker will produce 12 cubes per cycle— approximately 120 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other operating conditions.
  • Page 27 Throw away the first few batches of ice (about 24 cubes). This is also necessary if the refrigerator has not been used for a long time. Never store beverage cans or other items in the ice bin for the purpose of rapid cooling.
  • Page 28 Water Throw away the first few batches of ice (about 24 cubes). This is also necessary if the refrigerator has not been used for a long time. Press and hold the Lock button for 3 seconds to lock the dis- penser and all the control panel functions.
  • Page 29 If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of vegetables in the refrig- erator may cause condensation to form. Wipe off the condensation with a clean cloth or a paper towel.
  • Page 30 * The following tips may not be applicable depending on the model. Wrap or store food in the refrigerator in airtight and moisture- proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.
  • Page 31 * Depending on the model, some of the following functions may not be available. The crispers provide fresher tasting fruit and vegetables by letting you easily control humidity inside the drawer. You can control the amount of humidity in the moisture- sealed crispers by adjusting the control to any setting be- tween HIGH and LOW .
  • Page 32 Adjusting the shelves to fit different heights of items will make finding the exact item you want easier. Doing so will also reduce the amount of time the refrigerator door is open which will save energy. Tilt up the front of the shelf and lift it straight up. Pull the shelf out.

  • Page 33: General Cleaning Tips

    Both the refrigerator and freezer sections defrost automatically; however, clean both sections about once a month to pre- vent odors. Wipe up spills immediately. Always unplug the refrigeration before cleaning. General Cleaning Tips Unplug refrigerator or disconnect power. Remove all removable parts, such as shelves, crispers, etc.
  • Page 34 After changing the filter, press and hold the FILTER button for 3 seconds to turn the indicator light off. DO NOT operate refrigerator without water filter or water filter plug installed. To purchase a replacement water filter: - Visit your local dealer or distributor - Web: Find Parts &...

  • Page 35: Performance Data Sheet

    Warranty: See Warranty Card for Details. For a replacement cartridge or for service contact your local dealer. You can also visit our website; www.lg.com or call 1-877-714-7486. Manufactured for LG® Electronics by: CUNO Incorporateda 3M Company 400 Research Parkway Meriden, CT 06450 U.S.A.
  • Page 36 If you experience problems with your refrigerator, call 1-800-243-0000. Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent. The transmis- sion sounds that you will hear are normal and sound similar to a fax machine.
  • Page 37 It may take up to 24 hours for each compartment to reach the desired temperature. If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.
  • Page 38 110F. Adding food warms the compartment requiring the cooling system to run. Allowing hot food to cool to room temperature before putting it in the refrigerator will reduce this effect. See the Doors will not close correctly or pop open section in Parts &...
  • Page 39 Refer to the Setting the Controls section for more information. When the refrigerator is operated in temperature below 41°F (5°C), food can freeze in the refrigerator compartment. The refrigerator should not be operated in temperature below 55°F (13°C). When the doors are opened often or for long periods of time, warm, humid air enters the compartment.
  • Page 40 125 psi on models with a water filter. If the problem persists, it may be necessary to contact a plumber. Ice will not dispense if any of the refrigerator doors are left open. Infrequent use of the ice dispenser will cause the cubes to stick together over time, which will prevent them from properly dispensing.
  • Page 41 Make sure that the sensor area is clean at all times for proper operation. Connect refrigerator to the water supply and turn the water shutoff valve fully open. arm, make sure that the arm moves freely. If your...
  • Page 42 If the dispenser has not been used for several hours, the first glass dispensed may be warm. Discard the first 10 oz. Make sure that the refrigerator is connected to a cold water pipe. WARNING: Connecting the refrigerator to a hot water line may damage the icemaker.
  • Page 43 Sizzling Water dripping on the defrost heater during a defrost cycle. Vibrating If the side or back of the refrigerator is touching a cabinet or wall, some of the normal vibrations may make an audible sound. Dripping Water running into the drain pan during the defrost cycle.
  • Page 44 When you open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait one minute to allow the air pressure to equalize, then see if it opens more easily.
  • Page 45 Should your LG Refrigerator (“Product”) fail due to a defect in materials or workmanship under normal home use, during the warranty period set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the product and applies only when purchased and used within the United States including U.S.
  • Page 46 WARRANTY: Should your LG Refrigerator (“Product”) fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Cana- dian distributor thereof.
