HarDware setup
DC2210 ExpEriMEnTEr BoarD
(inCLuDED in DC2531 KiT)
The DC2210 experimenter board (see Figure 3) brings
all LTC2986 channels plus the COM connection out to a
proto area and a 24-position terminal block. The user may
DEMO MANUAL DC2531
connect any of the supported sensors and sense resistors
to any of the LTC2986 inputs in this area. Figure 4 shows
the connection schematic of the DC2210 Experimenter
board. Please note that only CH1 to CH10 are valid on
the DC2210 when used in conjunction with the DC2508.

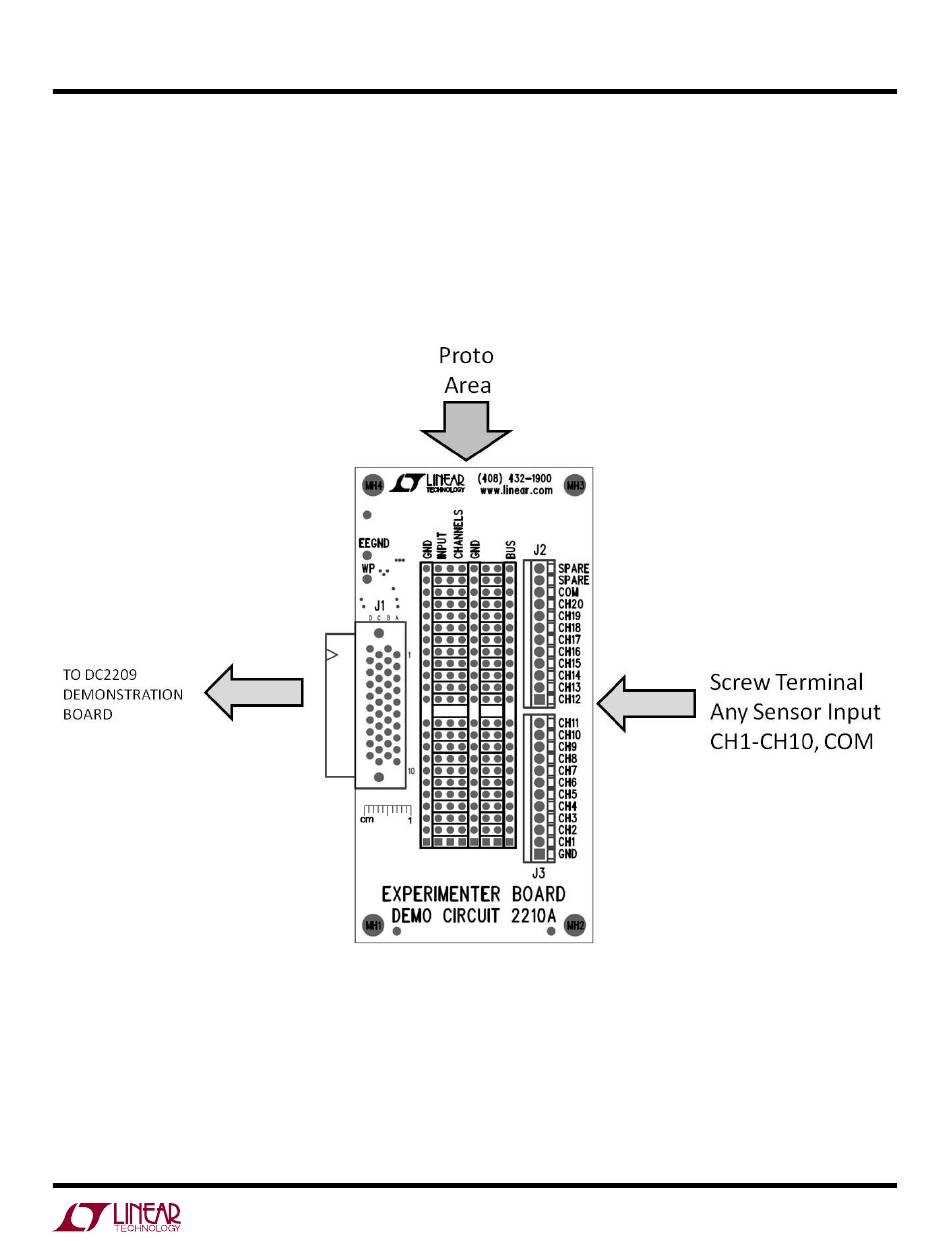

Figure 3. DC2210 Experimenter Board
dc2531f
3
