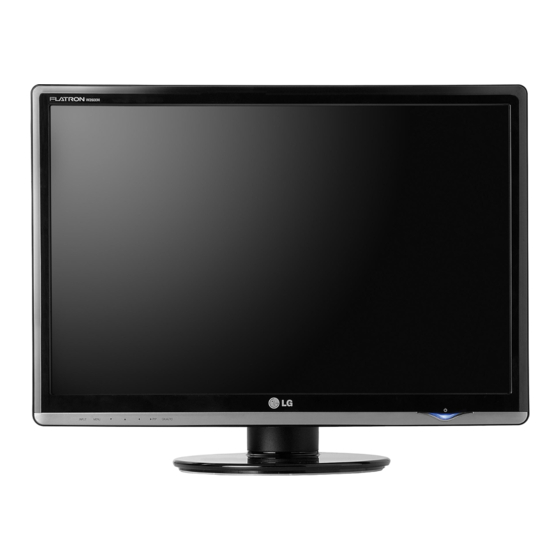

LG W2600H User Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. Monitor
  5. Flatron W2600H
  6. User manual

LG W2600H User Manual

Lg w2600h: user guide
Hide thumbs Also See for W2600H:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
M
ake sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
S
ee the label attached on the product and give the information to your
dealer when you ask for service.
User's Guide
W2600H
W2600HP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W2600H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG W2600H

Summary of Contents for LG W2600H

  • Page 1 Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and give the information to your dealer when you ask for service. User’s Guide W2600H W2600HP...

  • Page 2: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 3 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

  • Page 4: Connecting The Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand base or Removing the stand base Place the monitor with its front facing downward on a cushion or soft cloth.
  • Page 5 Lift and turn the monitor to face towards the front after the connection is made to the female part of the cable you're attaching. Take the screw out by turning to the left to separate the monitor and Stand Base.

  • Page 6: Positioning Your Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display Adjust the position of the panel in various ways for maximum comfort.

  • Page 7: Using The Computer

    NOTE 'Self Image Setting Function'? This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. 'AUTO/SET Function'? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, touch the AUTO/SET function button to improve resolution.

  • Page 8: Connecting The Usb Cable

    PC or another hub using the USB cable. (Computer must have a USB port) Connect the USB compliant peripherals to the downstream ports of the display. The monitor’s USB terminal supports USB 2.0 and High Speed cables. High Speed Data Rate...

  • Page 9: To Arrange The Cables

    Connecting the Display To arrange the cables Connect the power cord and the signal cable as shown in the figure and then fix them to the cable holders 1 and 2. Please insert the cable holder1 into the hole. Cable holder 1 Please put the power cord and the signal cable in the cable holder 2.

  • Page 10: Front Panel Controls

    Control Panel Functions Front Panel Controls ZOOMING One touch of the ‘EZ ZOOMING’ key enables you to magnify the size of the image so that you can easily view characters and pictures. To use this feature, please install forteManager program in the enclosed CD-ROM. Recommend resolution is : 1920 x 1200, 1680 x 1050, 1600 x 1200, 1280 x 1024, 1024 x 768, 800 x 600.
  • Page 11 Control Panel Functions Buttons (SOURCE Hot key) AUTO/SET Button Power Button Power Indicator Use these buttons to select or adjust functions in the On Screen Display. For more information, refer to page A17. Use this button to make D-Sub or DVI connector active. This feature is used when two computers are connected to the display.

  • Page 12: Screen Adjustment

    On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.
  • Page 13 On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu Sub-menu BRIGHTNESS PICTURE CONTRAST GAMMA COLOR PRESET GREEN BLUE HORIZONTAL POSITION VERTICAL CLOCK PHASE TRACKING SHARPNESS LANGUAGE SETUP POSITION VERTICAL WHITE BALANCE POWER INDICATOR...

  • Page 14: On Screen Display(Osd) Selection And Adjustment

    Touch the MENU Button, then the main menu of the OSD appears. Menu Name Icons Button Tip MENU NOTE OSD (On Screen Display) menu languages on the monitor may differ from the manual. P I C T U R E : Exit : Adjust (Decrease/Increase) : Enter : Select another sub-menu...
  • Page 15 BRIGHTNESS To adjust the contrast of the screen. CONTRAST GAMMA Set your own gamma value. : -50/0/50 On the monitor, high gamma values display whitish images and low gamma values display high contrast images. Select the screen color. PRESET • sRGB: Set the screen color to fit the SRGB standard color specification.
  • Page 16 On Screen Display(OSD) Selection and Adjustment Main menu POSITION P O S I T I O N MENU : Exit : Decrease : Increase : Select another sub-menu TRACKING T R A C K I N G MENU : Exit : Decrease : Increase : Select another sub-menu...
  • Page 17 Activate this function when white and black colors are present in the screen. Use this function to set the power POWER indicator on the front side of the monitor to INDICATOR ON or OFF. If you set OFF, it will go off.

  • Page 18: Flatron F-Engine

    On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the on the front of the monitor. Menu Name Icons Sub-menu Name FLATRON F-ENGINE When you execute F-ENGINE, two tones will appear on the screen as shown. The applied screen will appear on the left side, whereas the non-applied screen will appear on the right side.

  • Page 19: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the display connected? Is the power indicator light on? Is the power on and the power indicator blue or green? Is the power indicator amber? Do you see an "OUT OF RANGE"...

  • Page 20: Display Image Is Incorrect

    Troubleshooting Display image is incorrect Display Position is incorrect. On the screen background, vertical bars or stripes are visible. Any horizontal noise appearing in any image or characters are not clearly portrayed. Important Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed.

  • Page 21: Have You Installed The Display Driver

    The screen blinks. Have you installed the display driver? Have you installed the display driver? Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? • Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.

  • Page 22: Specifications

    Temperature 10˚C to 35 ˚C Humidity 10 % to 80 % non-Condensing Temperature -20˚C to 60 ˚C Humidity 5 % to 90 % non-Condensing W2600H Without Stand 60.19 cm / 23.70 inches 41.37 cm / 16.29 inches 8.10 cm / 3.19 inches...
  • Page 23 Attached ( Power cord Wall-outlet type or PC-outlet type Standard Data Rate Power Consumption Max 2.5W x 4 NOTE Information in this document is subject to change without notice. ), Detached ( O ) USB 2.0, Self-Power Max 480 Mbps W2600H...
  • Page 24 Specifications Display Sync Input Video Input Resolution Plug&Play Power Consumption Dimensions &Weight Range Power Input Environmental Conditions 26 inches (64.868cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 64.868 cm 0.2865 mm pixel pitch Horizontal Freq. 30 - 83 kHz (Automatic) Vertical Freq.
  • Page 25 Specifications Stand Base Attached ( Power cord Wall-outlet type or PC-outlet type Standard Data Rate Power Consumption Max 2.5W x 4 NOTE Information in this document is subject to change without notice. ), Detached ( O ) USB 2.0, Self-Power Max 480 Mbps W2600HP...

  • Page 26: Preset Modes (Resolution)

    Specifications Preset Modes (Resolution) Display Modes (Resolution) 640 x 480 VESA 640 x 480 VESA 720 x 480 720 x 400 VESA 800 x 600 VESA 800 x 600 VESA 1024 x 768 VESA 1024 x 768 VESA 1152 x 864 VESA 1280 x 768 VESA...

  • Page 27: Installing The Wall Mount Plate

    Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. After moving the product to face downward, make sure to place it on a soft cloth or a cushion to avoid surface damage.
  • Page 28 Digitally yours...
