- Page 1 Graseby ™ Syringe Pump Quick Reference Guide...

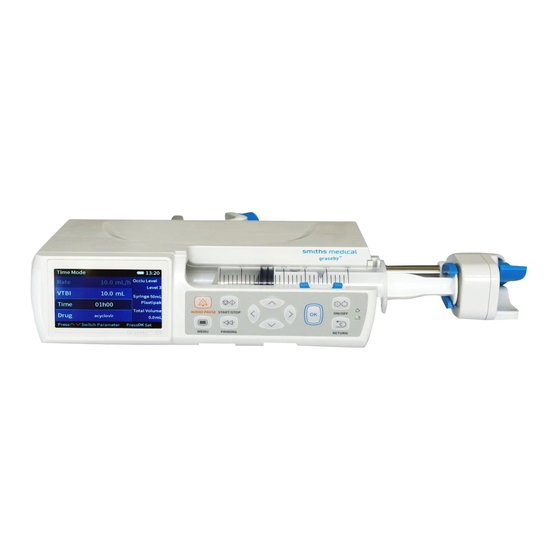

- Page 2 Pump Overview Alarm indicator LCD display Audio pause key Menu key Stop/start key Bolus/Priming key Navigation keys OK key Power On/Off key Return key Battery indicator External power supply indicator Syringe plunger holders Syringe plunger driver Syring plunger release lever Panel Syringe barrel clamp...
- Page 3 10 11...
- Page 4 Power On Press and hold on for 2 seconds to turn the pump on. Start-up Self-Test After the power is turned on, the syringe pump starts performing a self-test: • The screen lights up. • The speaker and buzzer beep respectively. •...
- Page 5 Syringe Loading Take a syringe, filled with fluid, and connect it to a prepared extension line. Ensure that the extension line is clamped properly. Open the panel (to avoid damage do not apply excessive force on the panel). Unfold the syringe barrel clamp.
-
Page 6: Drug Library
Syringe Calibration Enter Safety Setting and select Self Calibration to find two options to calibrate the syringe – Manual calibration and Auto calibration. For detailed steps, please refer the operators’ manual. Drug Library Enable Drug Library Please refer to following steps for setting the drug library: Press to enter main menu and select Infusion Setting. - Page 7 Set Infusion Mode Four infusion modes are supported to meet different clinical requirements. Please refer to following steps to set infusion mode: Press key at any interface in the stop status to enter the menu interface. Select Infusion Setting menu and press enter the menu.
-
Page 8: Program An Infusion
Program an Infusion Check if the syringe brand and size are correct. See the list of auto detected syringe size and brand. Alternatively, press to select Infusion Setting and choose Syringe Brand option. Press to enter the brand menu, and select the right syringe brand by pressing up and down keys. - Page 9 Program a Bolus You may deliver a bolus volume to the patient while the infusion is running. The amount delivered as a bolus will be added to the infusion volume total. Manual Bolus Manual bolus means bolus key should be held always during bolus and bolus will end when bolus key is released.
- Page 10 Alarms Alarms Trigger Condition Priority Solution The syringe Check if syringe barrel clamp or plunger or Syringe syringe plunger syringe barrel Plunger Open holders has High clamp of or Syringe been changed the syringe Clamp Open during the is properly infusion process.
- Page 11 Alarms Alarms Trigger Condition Priority Solution The infusion time is equal Press once to Infusion Near to or lower mute the alarm Complete than the preset for 2 minutes. residual time. If the KVO is set to zero, press The contents of to clear the the syringe or alarm.
- Page 12 Graseby and the Smiths Medical design mark are trademarks of Smiths Medical. The symbol ® indicates the trademark is registered in the U.S. Patent and Trademark Offi ce and certain other countries. All other names and marks mentioned are the trademarks or service marks of their respective owners.
