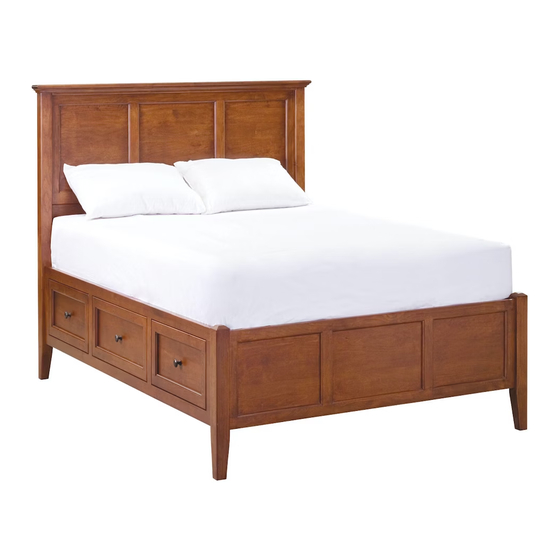

McKenzie Full Storage Bed
Model #
1306AFGAC & 1306AFCAF
AFGAC = Glazed Antique Cherry finish
AFCAF = Caffè finish
Congratulations!
This fine piece of furniture will make a gorgeous
addition to your home. For the best results, read the
Assembly Instructions before you begin your project.
CALL US FIRST!
Service Policy: We will replace any part that is
defective, missing or damaged during assembly.
Please contact Whittier Wood Products customer
service department directly by phone, fax, mail or
email for a replacement part.
Hours: Our friendly customer service staff can be
reached Monday-Friday 7:00 a.m. to 5:00 p.m.
(Pacific Time). You may leave a message 24 hours
a day, seven days a week.
800-653-3336
• Outside the U.S. or Canada: 541-687-0213 • Fax: 541-687-2060
www.whittierwood.com • P.O. Box 2827 • Eugene, Oregon 97402, U.S.A.
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
For normal household use only.
for commercial use.
Do not overload the drawers.
Before you begin your project, completely read the
Assembly Instructions.
Unload items before you move this unit.
.
Store this item: 1- in its box; 2- in a dry place; 3- in
temperatures that range from 40°F to 90°F (not on a
cold and possibly damp cement floor).
Periodically inspect your furniture for any loose
glue joints, screws or any other problem that might
affect the stability of your furniture. Tighten or
repair as needed.
This assembly requires two people.
Do not return this item to the store.
To Order: Designate the finish, provide the furniture model
number (upper left corner of this page), the part letter,
production code, quantity needed, reason for replacement,
your full name, address and telephone number.
Parts ship from our Eugene, Oregon factory within one
or two business days from the time we receive your
request. Please allow five to ten business days for delivery.
Production Code:
VN
Not recommended
.
05/10
Advertisement
Table of Contents
Related Manuals for Whittier Wood Furniture McKenzie 1306AFGAC
Summary of Contents for Whittier Wood Furniture McKenzie 1306AFGAC
- Page 1 McKenzie Full Storage Bed Model # 1306AFGAC & 1306AFCAF AFGAC = Glazed Antique Cherry finish AFCAF = Caffè finish Assembly Instructions IMPORTANT NOTES: For normal household use only. Not recommended for commercial use. Do not overload the drawers. Before you begin your project, completely read the Assembly Instructions.
- Page 2 1306AFGAC & 1306AFCAF McKenzie Full Storage Bed — Parts List Please identify the parts and check that quantities received match what is on this list. If you need to replace a part, refer to the following letter and item name. 1309AFGAC &...
- Page 3 1306AFGAC & 1306AFCAF McKenzie Full Storage Bed Assembly Instructions This Assembly Requires Two People Tools Required: Phillips screwdriver, 7/16" wrench, tape measure Fig. 1 Shipping Straps Remove the Trestles (C and D) from the back of the Headboard as seen in Figure 1 and place them off to the side.
- Page 4 Fig. 3a Fig. 3 Drawer Release Lever Remove the Drawers (J & K) from the Pedestal Kits (I). To remove the drawers, pull up on the left side of the Drawer Release Lever while pushing down on the right Drawer Release Lever. See Figure 3a.
- Page 5 Fig. 5 5. Rotate the Pedestal Assembly upside down so the plywood deckboards are on the floor. G x 16 H x 16 Fig. 6a Fig. 6 NOTE: Do not tighten the bolts with a wrench until the final assembly in step 10 is completed.
- Page 6 Fig. 7a T x 6 Fig. 7 On each inner Pair of Trestles (C & D), place a Foot Assembly (U) between the two middle trestles as shown in Figure 7. Attach with three #8 x 2" Black Screws (T), making sure the screws go all the way through the trestle and into the foot assembly as shown in Figure 7a.
- Page 7 Fig. 9a Fig. 9 Attach the Footboard (B) to the Pedestal Assembly as in Figure 9. Align the brackets as shown in Figure 9a and slide the Pedestal Assembly down on to the Footboard (B). Fig. 10 Attach the Headboard (A) to the Pedestal Assembly as in the previous step. NOTE: Now use a wrench and tighten all of the bolts on the trestles.
- Page 8 Fig. 12 To make sure the bed is square, measure the distance between opposing corners. If one of the measurements is larger, tap on a footboard leg until the measurement is equal. See Figure 12. E x 24 Fig. 13 Place Deckboards (P) as shown in Figure 13.
