McKenzie Bed Collection
FST = Fieldstone finish
Model #
1346FSTe
McKenzie Queen Bed
1349FSTe

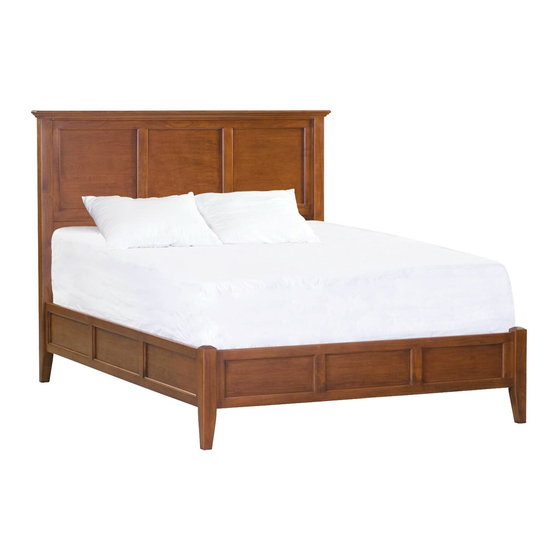

McKenzie King Bed
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Unload items before you move this unit.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
04/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whittier Wood Furniture 1349FSTe
Summary of Contents for Whittier Wood Furniture 1349FSTe
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 1346FSTe McKenzie Queen Bed 1349FSTe McKenzie King Bed Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. 1347FSTe Queen Bed (Headboard/Footboard Kit)
- Page 3 1346FSTe McKenzie Queen Bed 1349FSTe McKenzie King Bed Parts List 1348FSTe Queen/King Bed Rail Kit Part Description Quantity Side Rail #8 x 1" Black Screw (inserted) Female Bracket (attached) #10 x 2" Pan Head Screw (inserted) 1348 shown in illustrations.
- Page 4 1346FSTe McKenzie Queen Bed 1349FSTe McKenzie King Bed Assembly Instructions Tools Required: 5mm Hex Wrench (provided) and Phillips Screwdriver Remove the Slats (Cb) from the back of the Headboard (A) as seen in Figure 1 and place them off to the side.
- Page 5 1346FSTe McKenzie Queen Bed 1349FSTe McKenzie King Bed Assembly Instructions Using the Hex Wrench (N) provided, attach the Footboard (Be) to the Side Rails with four 1/4" x1/2" Hex Bolts (H) and 1/4" Lock Washers (J) as shown in Figures 3 and 3a.
- Page 6 1346FSTe McKenzie Queen Bed 1349FSTe McKenzie King Bed Assembly Instructions Place the bed at its final location. Position the Slats (Cb) on the bottom edges of the rails and place the slat without the Assembled Foot nearest to the Footboard. Attach with #8 x 1-1/4" Black Screws (E).
