Quick start installation and setup
1. Initial condition of the wardrobe
Do not plug the control unit to electricity before connecting all the engines (see connections at pages 4-5-
6-7).
Connect all the electric motors of the transmission bars to the control unit according to the wardrobe confi guration.
After connecting all the electric motors to the control unit close manually all the doors.

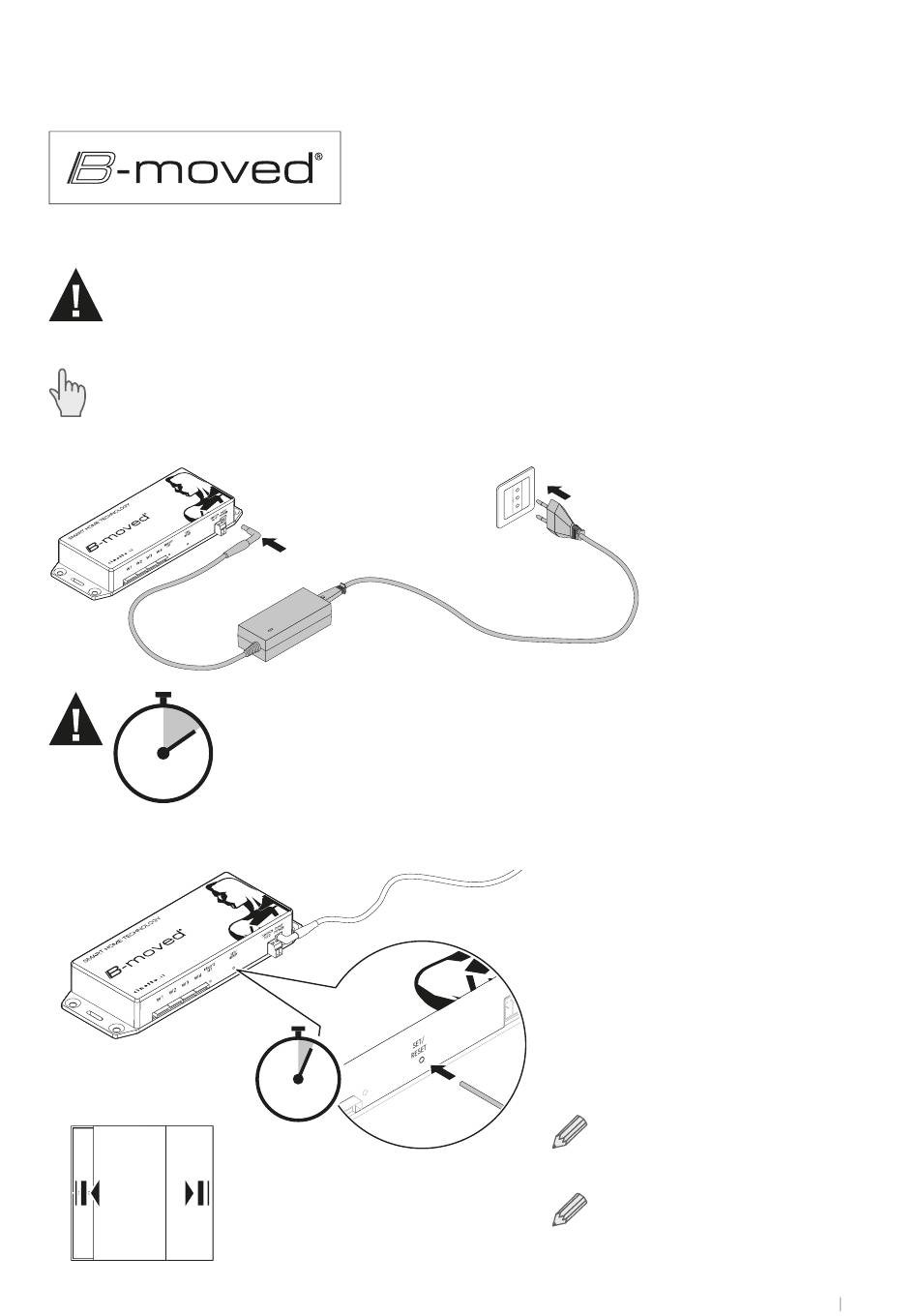

2. Control unit power supply
00:00:10
3. Self-learning cycle
After connecting to the power supply, wait at least 10 seconds, to allow to the control unit to
check the wardrobe confi guration.
00:00:03
After
connecting
electric
control unit and after closing
manually all the doors is
possible
control unit to the power
supply.
Start the self-learning cycle to make the
automatic set-up of the run of the doors
pressing at least 3 seconds the "SET /
RESET" button on the power unit. All the
doors, one by one, starting from the fi rst left
door on the wardrobe, will move at reduced
speed until their fi nal stoppers.
This operation, until all the doors record their
run, may take some minutes.
During the self-learning cycle do not
stop or put obstacles towards the doors
and keep the door's run free.
If the position of the fi nal stoppers
is modifi ed, please repeat the self-
learning cycle again.
Assembly Instructions Cinetto
B-moved.
all
the
motors
to
the
to
connect
the
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the B-MOVED and is the answer not in the manual?

Questions and answers

Summary of Contents for cinetto B-MOVED

  • Page 1 During the self-learning cycle do not stop or put obstacles towards the doors and keep the door’s run free. If the position of the fi nal stoppers is modifi ed, please repeat the self- learning cycle again. Assembly Instructions Cinetto B-moved.
  • Page 2 The wiring between the switch and the devices must be performed of the furniture. by specialized personnel according to the following scheme. Make this check to prevent danger or damage determined by a wrong operation of the system. B-moved. Assembly Instructions Cinetto...
  • Page 3 Wardrobe confi gurations with coplanar doors PS40 & B-MOVED CONNECTIONS S = synchronized ALWAYS SYNCHRONIZED B-moved. Assembly Instructions Cinetto...
  • Page 4 Wardrobe confi gurations with overlapping doors PS48 & B-MOVED CONNECTIONS S = synchronized ALWAYS SYNCHRONIZED *Central door opening just to the left. B-moved. Assembly Instructions Cinetto...
  • Page 5 Confi gurations for retractable doors PS66 & B-MOVED CONNECTIONS S = synchronized B-moved. Assembly Instructions Cinetto...
  • Page 6 Confi gurations for vertical concealed doors PS70 & B-MOVED CONNECTIONS S = synchronized B-moved. Assembly Instructions Cinetto...
  • Page 7 Before installing Wave Sensor, it is necessary to have installed the B-moved electrical system. PS40 & B-MOVED CONFIGURATION B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 8 CONFIGURATION CONFIGURATION W1 = synchronized opening B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 9 CONFIGURATION W1, W4 = synchronized opening W1 = synchronized opening W1 = synchronized opening B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 10 PS48 & B-MOVED CONFIGURATION W1, W4 = synchronized opening B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 11 CONFIGURATION CONFIGURATION W1 = synchronized opening *Central door opening just to the left. B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 12 CONFIGURATION W1, W4 = synchronized opening W1 = synchronized opening W1 = synchronized opening B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 13 PS66 & B-MOVED CONFIGURATION W1, W4 = synchronized opening B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 14 CONFIGURATION W1 = synchronized opening W1 = synchronized opening B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 15 PS70 & B-MOVED Wireless proximity sensor Max recommended distance between receiver unit and sensor: 10 meters. Up to 10 sensors each door. Battey not included. 2 x AAA 1,5V for each sensor. B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 16 To start the procedure, press and hold the button for the channel you want to confi gure (“SENSOR SET A” or “SENSOR SET B”) for two seconds, the corresponding LED will start to fl ash. Do not place Wave Sensor behind metallic, conductive materials or mirrors. 71,5 00:00:02 option 68,5 B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 17 Once it stops fl ashing, the reset procedure is completed and it will be possible to pair again to the channel up to a maximum of 10 sensors. B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 18 The pictures and descriptions this leaflet contains are supplied for information purposes. The company reserves the right to introduce those modifications it deems opportune for any construction or commercial need at any time and without advance notice. B-moved - Wave Sensor. Assembly Instructions Cinetto...
  • Page 19 This article is part of the B-MOVED electrical system for opening and closing the cabinet doors. It must be installed following the original instructions inside the package brackets for fixing the upper slides to the B-MOVED system. Code: PS40KM10002P0002, PS48KM10002P0001, PS48KM10002P0002, PS48KM10003P0001, PS66KE70020001, PS66KE70020002, PS70KE70020001.
