USER MANUAL: BLX-MR2-CC
READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT
Installation (cont.)
Plumbing Installation (cont.)
6. Cut the 1/4" airline before the tee fitting, as
indicated in [Fig. 6.1] .
7. Using the 1/4" tee fitting included with the
compliance counter, tee into the cut airline and
reconnect them.
8. Using the included 1/4" tubing, cut a new airline
long enough to connect from the tee to the 1/4"
bulkhead when the plumbing assembly is in place.
NOTE: Ensure the new airline is long enough
to reach the bulkhead without kinking, but is
not excessively long where it interferes with
removing/replacing the catch pan.
9. Replace plumbing assembly when complete
and reconnect all air and solution lines to their
appropriate bulkheads.
10. Connect the remaining 1/4" from the Compliance
Counter to the exterior side of the bulkhead to
complete installation.
NOTE: It is recommended to route the airline
around the handrail to prevent unintended
interaction (tripping, snags, etc.)
11. Replace plastic base plate and reconnect air and
solution supply to resume normal operations (see
main user manual for priming instructions).
Operation and Use
1. Activate MR2 to trigger the counter (up to 9,999
activations can be recorded before requiring reset)
2. Open the window cover to access reset button to
restart counter.
BLX-MR2-CC Manual Page 6 of 7

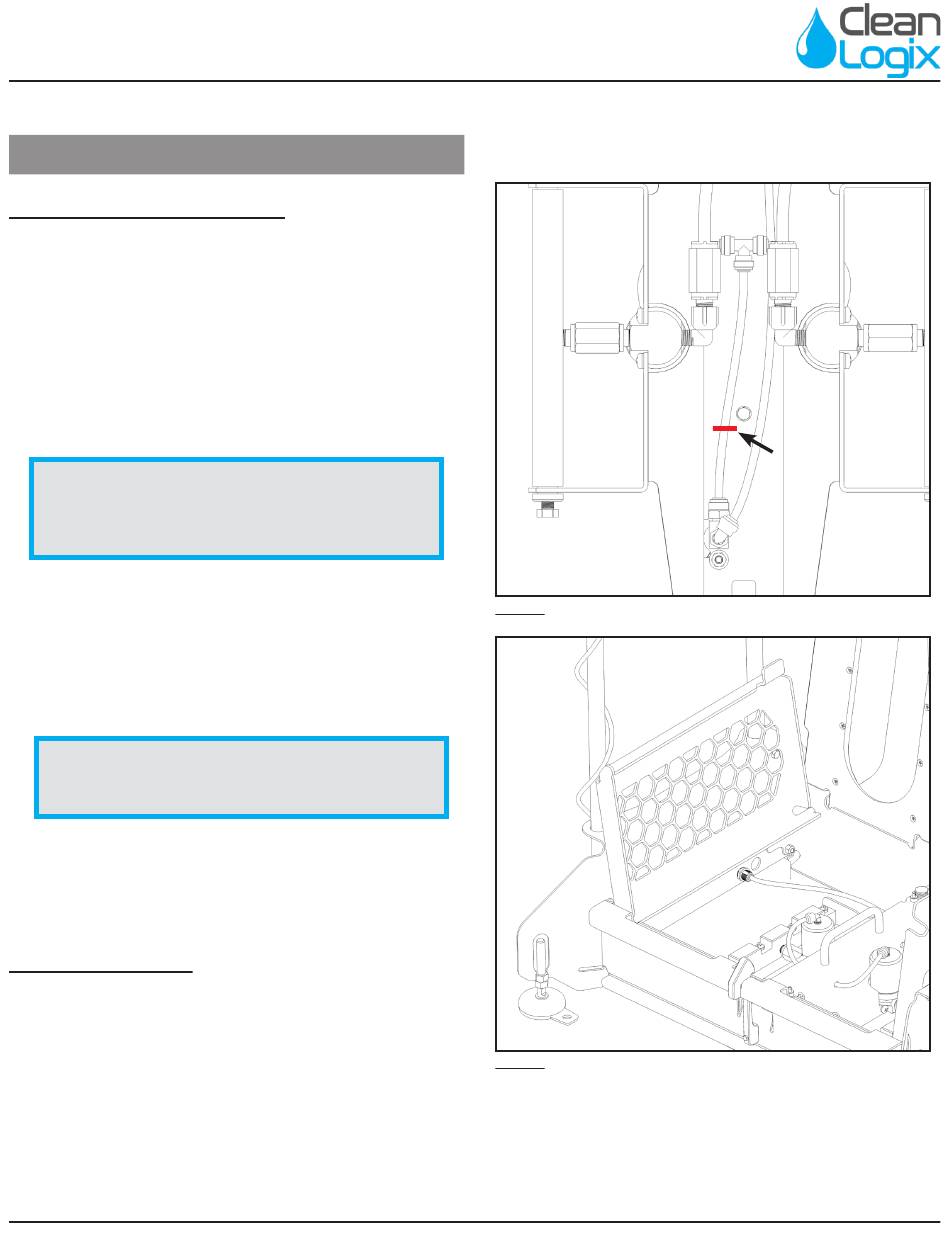

Fig. 6.1: Airline cut location for tee
Fig. 6.2: Compliance Counter bulk-head connection
cut here cut here
