Summary of Contents for Clean Logix BLX-MR2-CC

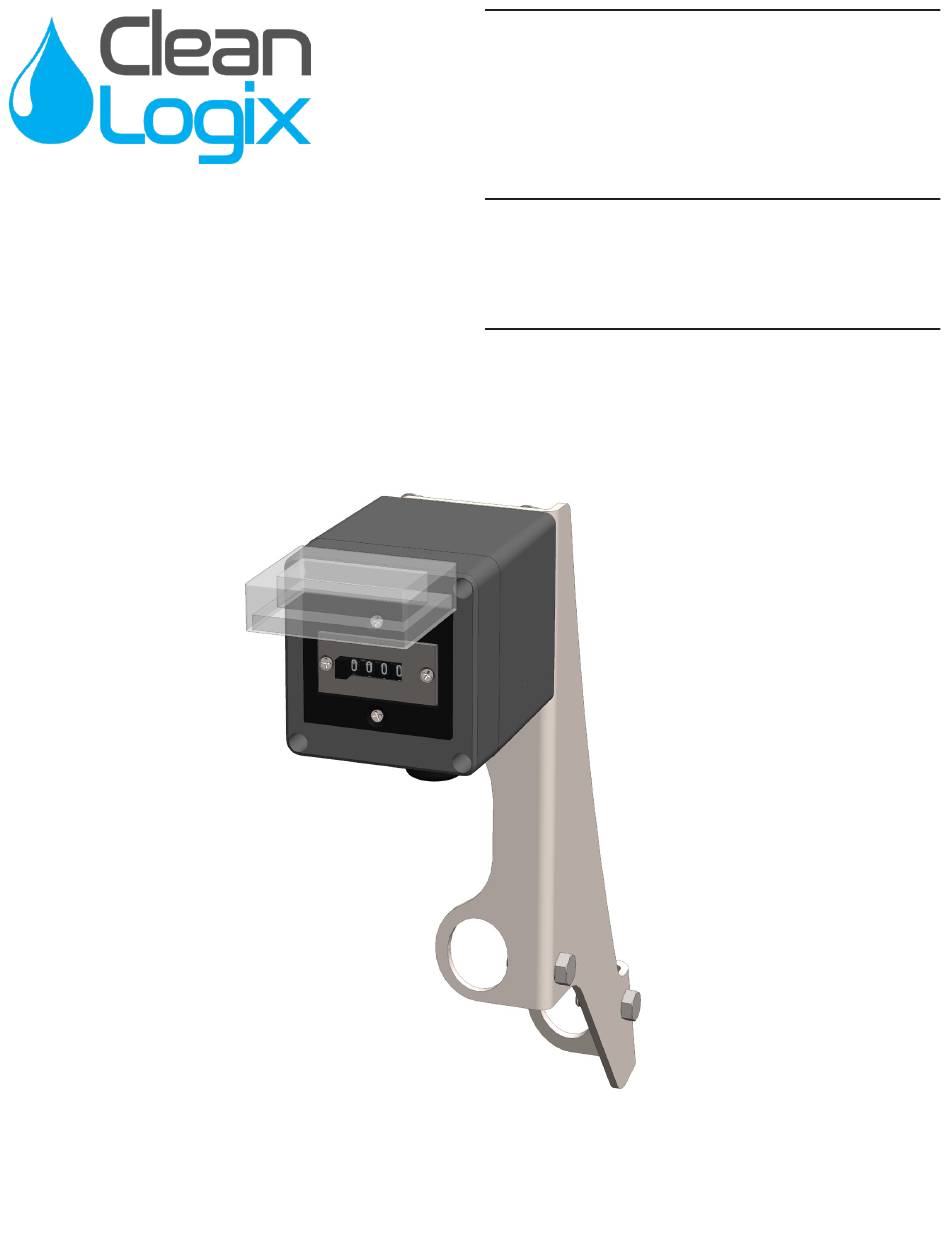

- Page 1 USER MANUAL MODEL: BLX-MR2-CC MISTER 2 COMPLIANCE COUNTER English (Original Instructions) Updated: 02/11/21...
- Page 2 5. Always follow plant and OSHA guidelines about the use of equipment. 6. Disconnect air before servicing equipment. 7. Always follow safety precautions and obey warning labels. Failure to do so could result in injury or death. BLX-MR2-CC Manual Page 2 of 7 Updated: 02/11/21...
-
Page 3: Specifications
More Information? way according to local waste disposal regulations. Please contact your equipment representative Always remember to recycle. or manufacturer for further support. Specifications and parts are subject to change without notice. BLX-MR2-CC Manual Page 3 of 7 Updated: 02/11/21... -
Page 4: Installation
USER MANUAL: BLX-MR2-CC READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Installation CAN BE INSTALLED ON EITHER SIDE OF UNIT BLX-MR2-CC Manual Page 4 of 7 Updated: 02/11/21... -
Page 5: Bracket Installation
5. Flip the plumbing assembly over and locate the 1/4" airline leading from the valve to the single- shot air output inlets. Fig. 5.2: 1/4" bulkhead for Compliance Counter airline BLX-MR2-CC Manual Page 5 of 7 Updated: 02/11/21... - Page 6 1. Activate MR2 to trigger the counter (up to 9,999 activations can be recorded before requiring reset) 2. Open the window cover to access reset button to Fig. 6.2: Compliance Counter bulk-head connection restart counter. BLX-MR2-CC Manual Page 6 of 7 Updated: 02/11/21...
-
Page 7: Appendix A - Parts Callout
CORD GRIP NUT 1/2" NPT BLACK P1279 QUICK FIT TEE 1/4" P1508 1/4" OD POLYETHYLENE TUBING (sold by the foot) P2091 QUICK FIT BULKHEAD 1/4" P2145 TOTALIZER PNEUMATIC 4-DIGIT P2146 TOTALIZER WINDOW COVER BLX-MR2-CC Manual Page 7 of 7 Updated: 02/11/21...
