Pro's Kit SS-955 User Manual

Automatic solder feeder soldering station

Advertisement

Quick Links

SS-955
Automatic Solder Feeder Soldering Station
User's Manual
1st Edition, 2022
©2022 Copyright by Prokit's Industries Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-955 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pro's Kit SS-955

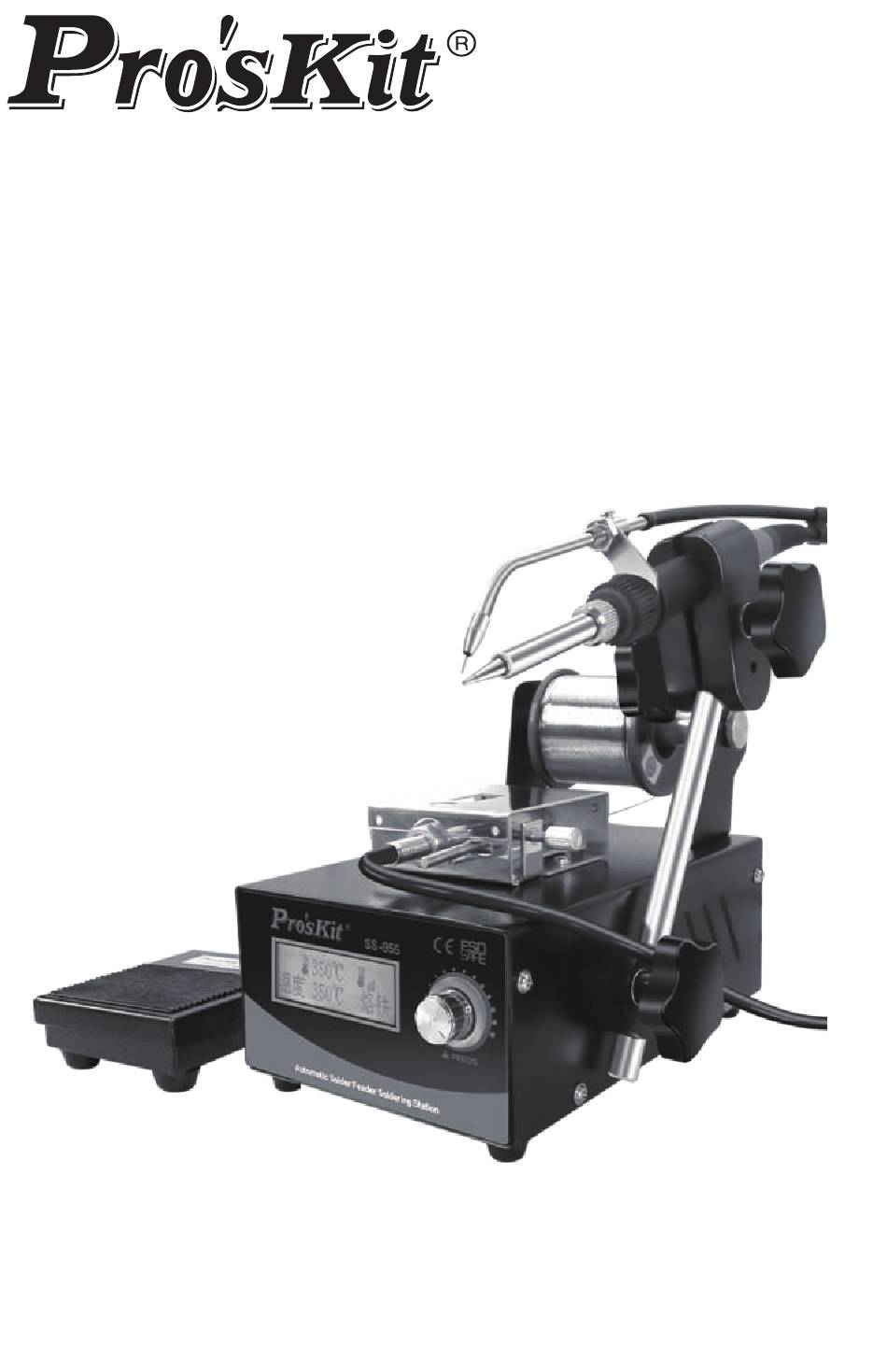

  • Page 1 SS-955 Automatic Solder Feeder Soldering Station User’s Manual 1st Edition, 2022 ©2022 Copyright by Prokit’s Industries Co., Ltd.
  • Page 2: Product Introduction

    1.Product introduction Thank you for purchasing the SS-955 Automatic Solder Feeder Soldering Station; This product optimize the combination of automatic solder wire feed control device and soldering station; The solder wire output is accurate and can be flexibly adjust- ed, the feeding speed, time and return quantity can be controlled to achieve excel- lent effect, Suitable for all kinds of lead and lead-free operations, help you improve...
  • Page 3: Specification

    3.1 Specification Model SS-955B Automatic solder feeder Soldering iron Solder wire feed ※Any change without notice, please subject to the actual product. ※It is recommend not to set temperature than 450 ℃ for a long time use.
  • Page 4: Packing List

    3.2 Soldering iron tips Soldering iron : 5SS-955-SI Soldering iron heating core : 9SS-900N-HT Foot switch : 5SS-955-TS 4.Packing list 5.Instructions 5.1 Function and display content Function setting Parameter settings 1. Language setting 1. Working mode setting 2. Temperature unit setting 2.
  • Page 5 5.2 Schematic diagram of rear panel Structrue of feeding 5.2.3 solder wire input port outlet joint Bottom case Motor drive gear pressure gear clutch iron plate pressure adjusting nut clutch lever pressure regulating spring gap adjusting screw fixing screw Structure of soldering iron part 5.2.4 soldering iron tight nut...
  • Page 6: Soldering Iron

    Solder wire support 5.2.5 shaft metal support Soldering iron 5.2.6 button for solder wire feeding Foot switch 5.2.7 foot pedal foot switch plug elbow and straight tube 5.2.8 5.3 Install and connection 5.3.1 Straight tube install: loosen the fixing screw on the outlet joint , insert the straight tube to the outlet joint...
  • Page 7 Nozzle of the tube(Φ 1.8mm assembled), refer to the following: nozzle of elbow tube corresponding solder wire Φ1.2mm 0.5-0.8mm Φ1.5mm 0.5-1.2mm Φ1.8mm 0.5-1.5mm nozzle of straight tube Φ1.8mm 0.5-1.5mm 5.3.3 adjustment of the solder wire and the soldering tip position: rotate the handle tube separator to change the combined position of the nozzle and the tip, loosen...
  • Page 8 5.3.9 operation mode: two operation modes can be selected as required, elbow mode and straight mode. (elbow mode) (Straight mode) • Use of ESD socket for anti-static This port provides the connection of anti-static working pad, wrist strap and other similar devices.
  • Page 9 XXX℃ XXX℃ TEMP XXX℃ SET XXX℃ TOOL 2) Feeding length: rotate the knob, when "LEN" is displayed in the second column on the left, press the knob to set the feeding length, the adjustment range is 0 ~ 99.5mm, and press the knob to save the setting; 3) Return length: rotate the knob, when "RET"...
  • Page 10 5.4.4 Temperature calibration: First to measure the temperature of the soldering iron and record the reading used by temperature tester. then long press the knob to enter the parameter setting, select the "CALIB", at SET position input the data which setting tempera- ture, and CAL position input the data which test value(reading), and click the knob to save the setting and exit.
  • Page 11: Troubleshooting

    5.6 Troubleshooting Faults Causes Solution Fuse blown Replace the fuse (2A/250V) Not work Power not connected Check the power connection reliably and plug it in Reconnect the soldering iron Loose connection plug or replace the heating core Shows“H-E” The heating core is burned “S-E”on display Reference the heating core or the assembly wire is...
  • Page 12 1) The resistance value between the plug pins is different from the resistance value in the table, disassembly the soldering iron to confirm whether the resis- tance value of the PCB is correct. 2) The measured resistance value on PCB is correct, indicate that the soldering iron wire is damaged, refer diagram to check the wire connect situation as below.
  • Page 13 SS-���自动出锡焊台----使用手冊...
  • Page 18 注意...
