Pro's Kit SN-396 Manual

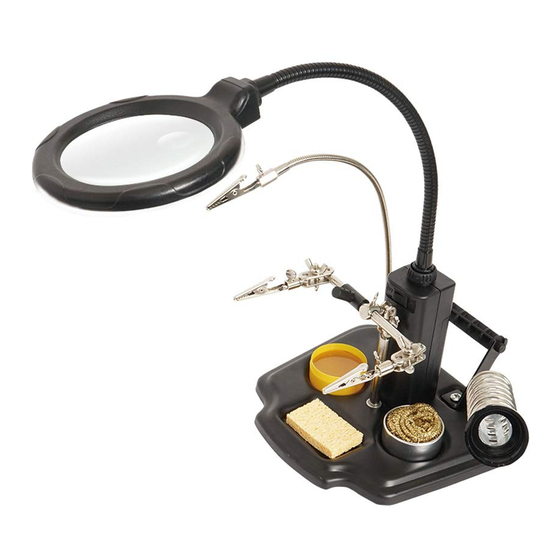

SN-396 Soldering Helping Hand With LED Magnifier
Thank you very much for purchasing Pro'sKit SN-396 Soldering Helping Hand With LED Magnifier. This product is ideal for
PCB soldering and desoldering rework. Before using, please read the following instructions：
Features:
 Comes with 16 SMD LEDs illuminating,
energy saving and super bright.
 The magnifier on a flexible neck that gives
you 2.5X(6D) and 6.25X(21D) magnification
for finishing those fine solder joints.
 The adjustable 3 helping hands clips feature
precisely positioning and securely gripping
your work.
 The magnifier is powered by either 4 pcs AA
batteries or external power adaptor.
 The set includes Solder Spool Brackets,
Soldering Iron Holder, Cleaning Sponge,
Brass Tip Cleaner and Soder Flux
How to use：

Take the lamp out of the packaging and place it on a
level, even surface.

Adjust the lamp holder and the light‐arm as desired.

Insert 4 pieces AA Batteries or put the power adaptor to
get the unit powered on.

For use beyond the reach of a wall socket, the device
can also be powered by 4*AA batteries

Switching on the LED magnifying lamp, then start your
operation.
All manuals and user guides at all-guides.com
Specifications
Magnifying Len s size
Magnification
Magnification
Material
Light source
Neck length
(for magnifier)
Neck length
(for alligator clips)
Base size
Power
Accessories
Weight
Individual packing
Battery 1.5V AA x 4pcs batteries (not included)
Adaptor DC 6V 0.5A adaptor input (not included)
Caution for safe using：

The product can only be used indoors, never outdoors.
Do not expose to moisture, under any circumstances.

The product is not a toy and should be kept out of the
reach of children.

Do not look directly into the light source, when the
lamp is in operation.

Never leave the lens unattended in direct sunlight or
where light can shine through it. This constitutes a fire
hazard.

Never leave the lamp without supervision when it is in
use.

Turn the power OFF when no longer using the Pro'sKit
SN‐396 or when leaving it unattended.
SN-396
90mm & 20mm
ψ ψ
2.5X(6D)+6.25X(21D)
Acrylic
16 pcs SMD LEDs
265mm
250mm
190x170mm
Sponge size 30 x 50mm
Soldering Flux 10g
Brass Tip Cleaner 17g
1,150 g
Color Box
