BRT Systems LDSBus LC060101A Manual

LDSBus Isolated IO Controller

1 Introduction

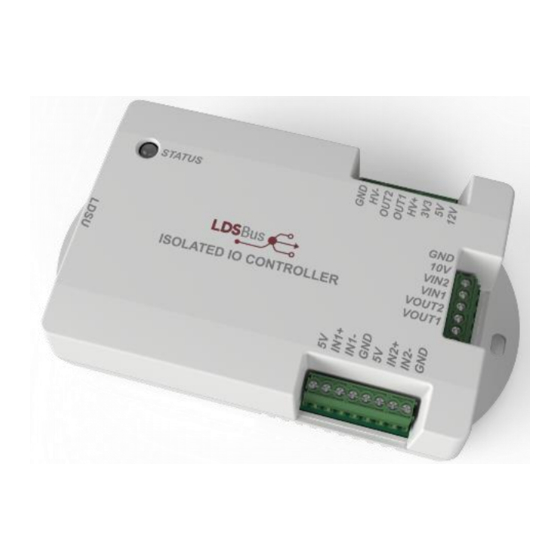

The LDSBus Isolated IO Controller offers 2
isolated channels of digital and analog inputs and
a variety of associated power source options to
achieve 3.3V, 5V, 10V, 12V referenced signals
besides sourcing power from external voltage
sources. Each channel (input and output) is
isolated from the others.
Each digital output can switch between 0V and
3.3V, 5V, 12V or referenced to an external
voltage source. Each digital input can be between
0V and 1.8V to 12V. A 5V voltage source is
provided for common applications that switch
between 0-5V.
Each analog output can produce a voltage
between 0-10V, and each analog input supports
voltage or current controlled input sources
ranging between 0-10V.
The controller may be used in numerous and
diverse applications such as simple IO control, or
0-10V dimmers, weather station, water level
detector or sensor, etc.
