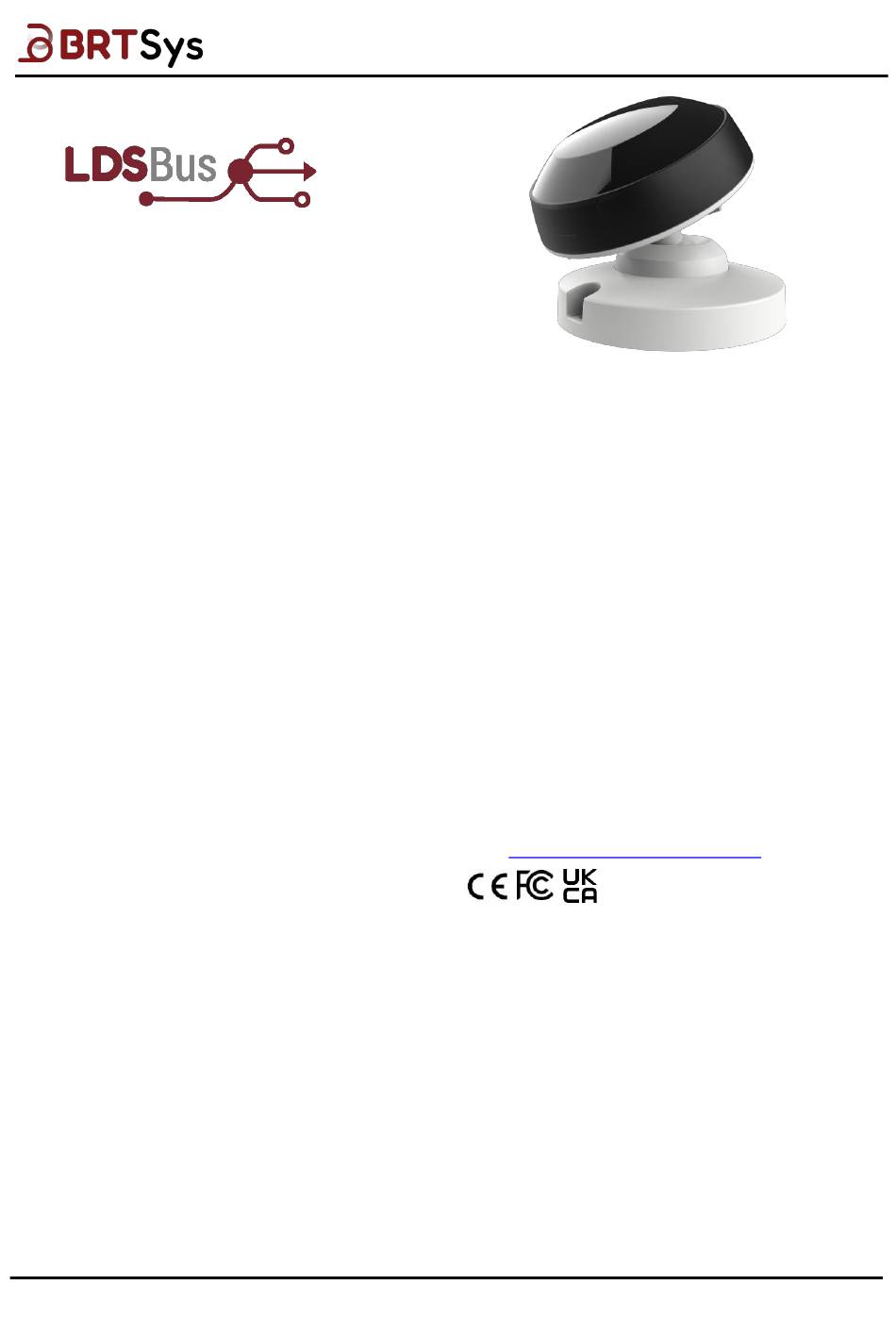

LDSBus IR Blaster
Datasheet

1 Introduction

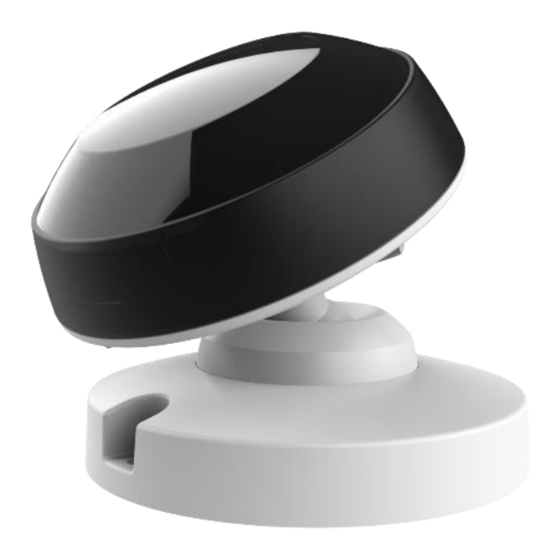

The LDSBus IR Blaster replaces traditional
single device IR remote controllers to
function as a universal remote controller.
The IR Blaster is equipped with 7 high power
IR LEDs that provide 360
ranging up to 7 meters. The LDSBus IR
Blaster is suitable for controlling Air-
conditioners, TVs, Set-Top Boxes, curtains
and blinds, fans and many more appliances.
Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted, or reproduced
in any material or electronic form without the prior written consent of the copyright holder. This product and its documentation are
supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or implied. B RT Systems Pte
Ltd will not accept any claim for damages howsoever arising as a result of use or failure of this product. Your statutory rights are not
affected. This product or any variant of it is not intended for use in any medical appliance, device, or system in which the failure of the
product might reasonably be expected to result in personal injury. This document provides preliminary information that may be subject
to change without notice. No freedom to use patents or other intellectual property rights is i mplied by the publication of this document.
BRT Systems Pte Ltd, 178 Paya Lebar Road, #07-03, Singapore 409030. Singapore Registered Company Number: 202220043R.
Copyright © BRT Systems Pte Ltd
o
of coverage
LDSBus IR Blaster Datasheet Blaster Datasheet
Document Reference No.: BRTSYS_000003

1.1 Features

LDSBus IR Blaster consists of on-board IR
emitters in a compact device
360
o
of IR coverage
Maximum emission range: 7 meters
BRTSYS LDSBus protocol. Wired data and
power transmission through LDSBus HVT-
Junction.
Low power consumption – 625mW (typical)
Operating temperature range : 0
Swivel and flush mount options
Supported platform applications:
BRTSYS PanL Smart Living product and
LDSBus Python SDK
https://brtsys.com/resources
(Visit
Version 1.1
Clearance No.: BRTSYS#004
o
C to +70
o
C
)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDSBus LC020101A-F and is the answer not in the manual?

Questions and answers

Summary of Contents for BRT Systems LDSBus LC020101A-F

  • Page 1: Introduction

    No freedom to use patents or other intellectual property rights is i mplied by the publication of this document. BRT Systems Pte Ltd, 178 Paya Lebar Road, #07-03, Singapore 409030. Singapore Registered Company Number: 202220043R. Copyright © BRT Systems Pte Ltd...
  • Page 2: Part Numbers

    LDSBus IR Blaster Datasheet Blaster Datasheet Version 1.1 Document Reference No.: BRTSYS_000003 Clearance No.: BRTSYS#004 2 Part Numbers Part# Naming LC020101A-F LDSBus IR Blaster (Flush Mount) LC020101A-S LDSBus IR Blaster (Swivel Mount) Copyright © BRT Systems Pte Ltd...
  • Page 3: Table Of Contents

    Document References ..............13 Acronyms and Abbreviations ............13 Appendix B – List of Figures and Tables ......14 List of Figures ................. 14 List of Tables ................... 14 Appendix C – Revision History ........... 15 Copyright © BRT Systems Pte Ltd...
  • Page 4: Product Specifications

    1x LDSBus IR Blaster with Flush Mount (or) Device 1x LDSBus IR Blaster with Swivel Mount Package Contents Wire Assembly 1x 5m RJ11-JST Cable Self-Tapping Screws 2x M3.5*16mm(Thread) Table 1 - LDSBus IR Blaster Specifications Copyright © BRT Systems Pte Ltd...
  • Page 5: Hardware Features

    4 Hardware Features IR Emitter LED Status Indicator Mounting Screw Location Figure 1 - LDSBus IR Blaster – Swivel Mount Lock Direction Flush Mount Bracket Figure 2 – LDSBus IR Blaster – Flush Mount Copyright © BRT Systems Pte Ltd...
  • Page 6: Configuration, Installation And Application

    2. Connect the configured LDSBus IR Blaster to the LDSBus HVT-Junction as shown in Figure 3. 3. If there is more than one LDSBus HVT-Junction, chain them together as shown in Figure 3. Figure 3 – LDSBus IR Blaster to LDS Bus – Connection Diagram Copyright © BRT Systems Pte Ltd...
  • Page 7: Mounting Instructions

    RJ12-JST cable through the centre (hole) of the back cover and fasten the back cover to the ceiling with self-tapping screws as shown in the picture below - 4. Attach the cable to the JST connector of the sensor. Copyright © BRT Systems Pte Ltd...
  • Page 8: Swivel Mount

    2. Route and affix the LDSBus RJ11 cable on the wall through a buried or wall mounted conduit to butt against the base of the swivel mount. 3. Break off one of the three cable entry locations on the base plate for cable routing. Cable Entry Copyright © BRT Systems Pte Ltd...
  • Page 9 7. Connect the JST cable from the top section of the swivel mount to the JST connector located on the back of the device. JST Cable JST Connector 8. Attach the device to the top section of the swivel mount. 9. Turn the device clockwise to secure it to the swivel mount. Copyright © BRT Systems Pte Ltd...
  • Page 10: System Status Led Indicator

    LED Off address (126) Transmitting LED flashing @ 5Hz Device transmitting IR signals. Firmware Steady – Non- YELLOW Device firmware update. update flashing Table 2 – LDSBus IR Blaster – System Status LED Indicator Copyright © BRT Systems Pte Ltd...
  • Page 11: Mechanical Dimension

    Document Reference No.: BRTSYS_000003 Clearance No.: BRTSYS#004 8 Mechanical Dimension Figure 6 - LDSBus IR Blaster Dimension – Top View Figure 7 – LDSBus IR Blaster Dimension - Side View Note: All dimensions are in millimetres. Copyright © BRT Systems Pte Ltd...
  • Page 12: Contact Information

    BRT Systems disclaims all liability for system designs and for any applications assistance provided by BRT Systems. Use of BRT Systems devices in life support and/or safety applications is entirely at the user’s risk, and the user agrees to defend, indemnify and hold harmless BRT Systems from any and all damages, claims, suits, or expense resulting from such use.
  • Page 13: Document References

    LDSBus IR Blaster Datasheet Blaster Datasheet Version 1.1 Document Reference No.: BRTSYS_000003 Clearance No.: BRTSYS#004 Appendix A – References Document References BRTSYS_AN_001_LDSBus_Configuration_Utility_User_Guide BRTSYS_AN_002_LDSU IR Blaster_Application Acronyms and Abbreviations Terms Description Direct Current Light Emitting Diode Infrared Copyright © BRT Systems Pte Ltd...
  • Page 14: Appendix B - List Of Figures And Tables

    Figure 7 – LDSBus IR Blaster Dimension - Side View ............... 11 List of Tables Table 1 - LDSBus IR Blaster Specifications ..................4 Table 2 – LDSBus IR Blaster – System Status LED Indicator ............10 Copyright © BRT Systems Pte Ltd...
  • Page 15: Appendix C - Revision History

    LDSBus IR Blaster Datasheet Document Reference No.: BRTSYS_000003 Clearance No.: BRTSYS#004 Product Page: https://brtsys.com/ldsbus/ Document Feedback: Send Feedback Revision Changes Date Version 1.0 Initial Release 16-11-2021 Version 1.1 Updated release under BRT Systems 14-09-2022 Copyright © BRT Systems Pte Ltd...
