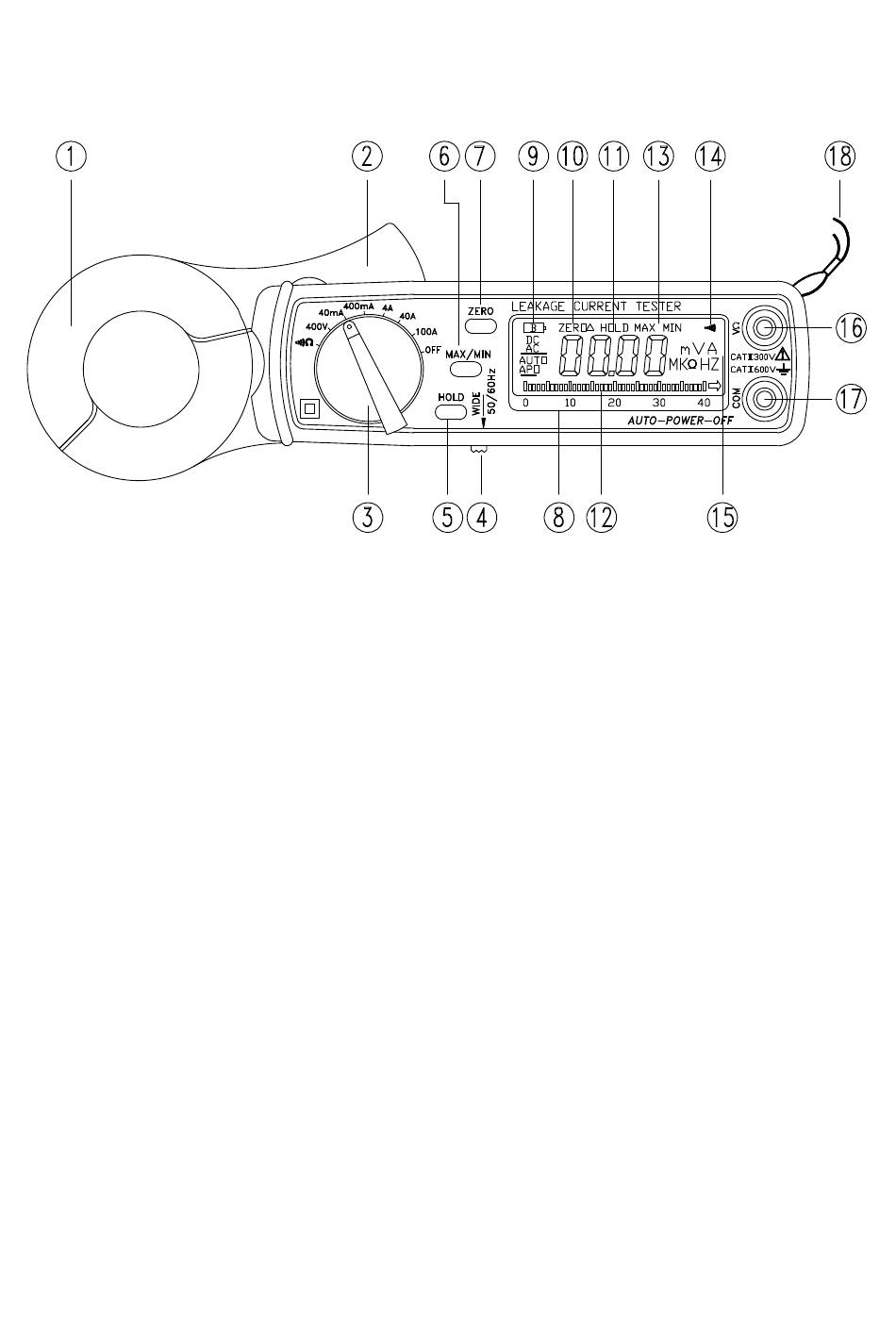

2. Panel Description
1.Transformer Jaw
This is used to pick up current signal. To measure DC/AC current, conductor
must be enclosed by the jaw.
2.Transformer Trigger
This is used to open the jaw.
3.Function Selector Switch
This is used to select the function user desired, such as ACV, ACA, Ohm and
Continuity.
4.Frequency Selection Switch
At 50/60Hz position, only the low frequency signal is measured. At Wide position,
signal from 40 - 1KHz is measured.
5.Data Hold Button
Once this button is pushed, reading shall be held on the LCD. Press again to
release it. This button is not available in continuity function.
6.Max/Min Hold Button
This button is used to enable the maximum or minimum value to be displayed and
updated during measurement. Press once, minimum value shall be displayed
and updated. Press again, maximum value shall be displayed and updated.
The Zero/Relative function will be disabled if Max/Min function is enabled. This
button is not available in continuity function.
