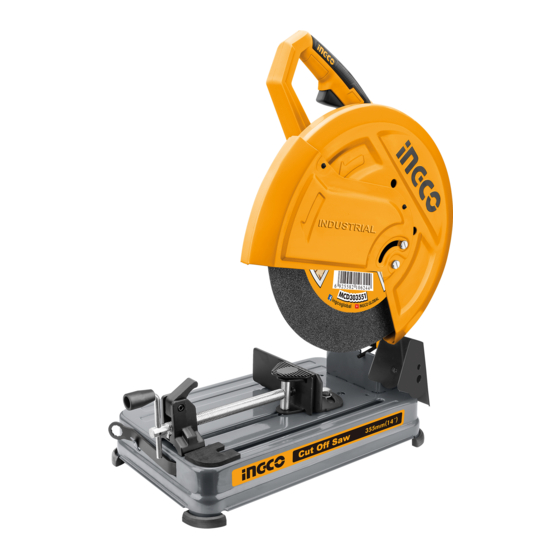

- Page 1 Cut Off Saw COS35568 UCOS35568 COS35568-6 COS35568-8 COS35568-9 ingcoglobal INGCO GLOBAL...
-
Page 2: Technical Specifications
2|English Technical Specifications: COS35568 Model UCOS35568 COS35568-6 COS35568-8 COS35568-9 Input power: 2400W 2400W Rated voltage: 220V-240V~50/60Hz 110V-120V~60Hz Blade size: 355x25.4x3mm 14 x1 x1/8 3900/min No-load speed: 3900/min Max. cutting capacity: in round pipe: 100mm in square steel: 100X100mm 4 X4... -
Page 3: Specific Safety Rules
3|English q) Do not use damaged, out-of-center or vibrating cutting discs. Damaged cutting discs cause increased friction, binding of the cutting disc and kickback. r) Always use cutting discs with correct size and shape (diamond versus round) of arbor holes. Cutting discs that do not match the mounting hardware of the cut off grinder will run eccentrically, causing loss of control. - Page 4 4|English designed. It will do the job better and more safely at the rate for which it was intended. Do not modity this product, and do not use this product for a purpose for which it was not intended. People with pacemakers should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.
- Page 5 5|English 9. Reinstall the Outer Flange (with the concave side facing the Wheel), washer, and Screw. NOTE: Make sure to firmly tighten the Screw in al clockwise direction while depressing the Spindle Lock. (See Figures G 、 Figure F Figure H 10.
- Page 6 6|English 4. Allow the Grind Wheel to spin up to full speed. Then, slowly lower the Grind Wheel into the workpiece. (See Figure D, and J ) 5. If the Grind Wheel does not pass completely through the workpiece, Raise the Saw Arm, turn off and unplug the Saw, and wait until it comes to a complete stop.
- Page 7 7|English Double insulated Wear hearing protection. additional protection Read the instruction manual Wear eye protection. Danger area! Keep hands, fingers or arms away from this area. Environmental Protection and Guarantee ENVIRONMENT PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
- Page 8 8|English COS35568,UCOS35568,COS35568-6,COS35568-8,COS35568-9...
-
Page 9: Part Description
9|English COS35568,UCOS35568,COS35568-6,COS35568-8,COS35568-9 Part Description Part Description Brush cover square key Carbon brush Bearing（6204-2z） Brush hold Hex nut Pan head screw Fixed guard Spring washer Cover Flat washer Gear Motor housing Bearing（6000-2z） Stator external criclips plain washer Hollow shaft Spring washer... - Page 10 INGCO TOOLS CO.,LIMITED MADE IN CHINA No.45 Songbei Road,Suzhou Industrial Park,China. 0620.V07 COS35568 UCOS35568 COS35568-6 COS35568-8 COS35568-9...
