  • Page 4 Introduction This operation manual is made for people that are using the Fast Skin system in a store and is meant to help in day-to-day operations of the machine as well as a reminder of the correct film-application techniques. In case of issues that are not foreseen in this manual, do not hesitate to contact our support at support@fastsk.in.
  • Page 5: Machine Parts

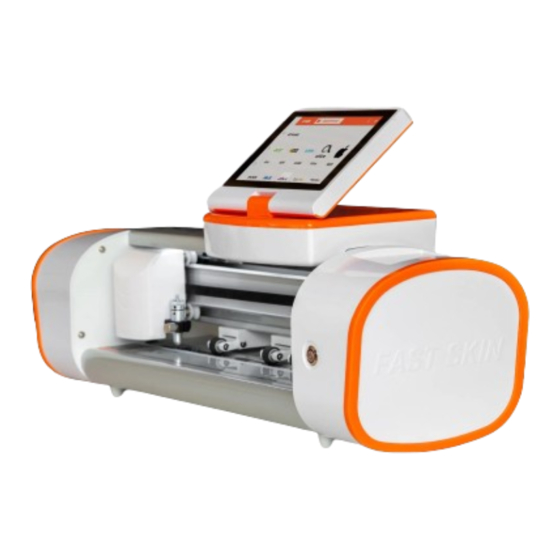

    Fast Skin Machine Parts 1 - Fast Skin machine 2 - Blade holder 3 - Cutting strip 4 - Main screen 5 - Power button 6 - Film locking lever 7- SIM card slot FAST SKIN - OPERATION MANUAL...
  • Page 6 Fast Skin Machine Parts 7- Film locking lever 8 Power input 9 Ethernet port FAST SKIN - OPERATION MANUAL...
  • Page 7: Starter Kit

    5 - Cleaning cloth 6 - Cleaning liquid 7 - Hot air gun 8– Standard sheet 9- Tweezers 10 – Tool 11– Power cord and power supply 12 – Blade Holder 13 – Spare blades 14 - Screwdriver FAST SKIN - OPERATION MANUAL...
  • Page 8: Film Composition

    This layer has a cut in the middle that is used to first install one half of the film and than the other. Bottom layer: this layer holds the film together while cutting it in the machine. It should remain mostly intact during cutting. FAST SKIN - OPERATION MANUAL...
  • Page 9 On-screen commands Refresh button: reloads all available cuts at once Menu button: opens the menu List of device brands FAST SKIN - OPERATION MANUAL...
  • Page 10 Materials: configures the machine to use different Fast Skin materials Calibration: starts machine calibration procedure Send a new support request Disconnect the machine. You will have to log-in again to use the machine after this FAST SKIN - OPERATION MANUAL...
  • Page 11: Turning On And Off

    Turning on and off...
  • Page 12 Turning on and off Before turning Fast Skin on, make sure to: Insert the power connector into the appropriate port on the Fast Skin machine. Connect the power cable to the power supplier. Insert the power cable into the mains.
  • Page 13 Turning off Press the power button and hold it until you see Press the power button and hold it until «Reboot» SBS logo appear on the screen and «Power off» menu appears on the screen. Choose «Power off». FAST SKIN - OPERATION MANUAL...
  • Page 14: Machine Calibration

    Machine calibration...
  • Page 15 Machine calibration Fast Skin machine needs to be calibrated Upon first use the calibration is required before starting normal operation After a long period of inactivity After each blade change Calibration is also suggested when issues during machine operation are encountered.
  • Page 16 Machine calibration Insert a sheet of standard material and lock it in place. FAST SKIN - OPERATION MANUAL...
  • Page 17 Machine calibration You’re asked to position the bladeholder in such a way that you can change its setting easily without having to unmount it FAST SKIN - OPERATION MANUAL...
  • Page 18 Machine calibration The on-screen instructions ask you to set the blade to 5 by turning the blade holder cup. FAST SKIN - OPERATION MANUAL...
  • Page 19 Machine calibration Start a calibration cut. FAST SKIN - OPERATION MANUAL...
  • Page 20 In case the cut is too deep and all four layers of the At this point you’re asked to inspect the film are being pierced, choose the bottom video. calibration cut performed by themachine FAST SKIN - OPERATION MANUAL...
  • Page 21 When performing additional calibration cuts, use the same sheet of film as the machine instructs you to do: a new cut will be added on the same film for each new evaluation step. If the calibration fails, please contact support for additional assistance. FAST SKIN - OPERATION MANUAL...
  • Page 22 Cutting a Fast Skin film...
  • Page 23 Cutting a Fast Skin film: choose a phone model Choose device brand FAST SKIN - OPERATION MANUAL...
  • Page 24 Cutting a Fast Skin film: choose a phone model Choose model family FAST SKIN - OPERATION MANUAL...
  • Page 25 Cutting a Fast Skin film: choose a phone model Choose the exact model FAST SKIN - OPERATION MANUAL...
  • Page 26 Cutting a Fast Skin film: choose a cut type > > > Back: Front: Front (Case Friendly): covers most of the device’s covers the back of the full cover cut, screen, but leaving enough device and is compatible covers the space on the sides, it’s...
  • Page 27 Cutting a Fast Skin film: choose the material You may choose one of the materials compatible with the cut you are trying to perform. It is important to choose the exact same material you’re going to place in the machine because cutting settings and technique vary from one material to another.
  • Page 28: Preparing To Cut

    Cutting a Fast Skin film: preparing to cut Examine the cut preview and compare it with the device. Touch the «Start cutting» button. FAST SKIN - OPERATION MANUAL...
  • Page 29 Cutting a Fast Skin film: choose a phone model Set the blade to the setting suggested by the on-screen instructions FAST SKIN - OPERATION MANUAL...
  • Page 30 Cutting a Fast Skin film: preparing to cut Place the sheet against the right-side guide so that it is aligned to it. When the rollers start turning, push the film gently so that machine loads and positions it automatically FAST SKIN - OPERATION MANUAL...
  • Page 31 Cutting a Fast Skin film: cutting the film Once the cutting is over, follow the Finally provide feedback additional instructions about the cut FAST SKIN - OPERATION MANUAL...
  • Page 32 Film application...
  • Page 33: Cleaning The Device

    Use alcohol based glue removing liquid if needed. In case a lot of visible dust sticks to the screen, use Fast Skin dust removal stickers and repeat cleaning with cleaning liquid and cloth. Use the cleaning materials to...
  • Page 34 Fold the previously cut film downwards along one of Avoid touching the application layer. the longitudinal lines of the cut in such a way that the the top layers detach slightly from the Bottom layer. FAST SKIN - OPERATION MANUAL...
  • Page 35 Hold the extracted film by the sides with the tips side with the tip of a finger near the middle of your fingers and use tweezers to clear any cutting line. openings, such as camera holes or buttons. FAST SKIN - OPERATION MANUAL...
  • Page 36 Place the cut on the device with the Carefully peel all the layers together Installation layer facing the device and reposition to reach the ideal fit. and making it fit the form of the device. FAST SKIN - OPERATION MANUAL...
  • Page 37: Installation

    Carefully peel off the Installation layer Use the spatula to start gluing the first half up to the cut in the middle of the film, by pushing it firmly outwards of the Installation layer. over the top of the film. FAST SKIN - OPERATION MANUAL...
  • Page 38 Carefully peel off the Installation layer Use the spatula to glue the second half of the film up to the cut in the middle starting, again, from the middle. Be careful around of the Installation layer. the edges and holes. FAST SKIN - OPERATION MANUAL...
  • Page 39 Always move the spatula in one direction at a time, avoid back-and-forth movements. Use the spatula to firmly glue the film to the device. FAST SKIN - OPERATION MANUAL...
  • Page 40 Place a layer-removal sticker in one Pull the loose end of the layer-removal of the angles leaving the tip of the sticker upwards with a single gesture, sticker on the outside. so that the Protective layer is removed. FAST SKIN - OPERATION MANUAL...
  • Page 41: Fine Tuning

    Examine the film and adjust any remaining details That’s why cleaning the phone before with cloth or wrapping the spatula in cloth. installation is extremely important. FAST SKIN - OPERATION MANUAL...
  • Page 42 Turn on the hot air gun, set it to 100Cº and Put down the hot air gun and use the use it at 1-2cm distance to warm-up the cloth to rub the sides gently in place. edges of the applied film for 30 seconds. FAST SKIN - OPERATION MANUAL...
  • Page 43: Maintenance

    Maintenance...
  • Page 44: Changing The Blade

    Maintenance: changing the blade Remove the blade holder Push the lever in the blade Take the old blade carefuly from the machine. holder cup pushing the and remove it form the blade out. blade holder. FAST SKIN - OPERATION MANUAL...
  • Page 45 Maintenance: changing the blade Remove the protective cap Slide the new blade into Fix the blade holder in place from the new blade the blade holder holding it upside down FAST SKIN - OPERATION MANUAL...
  • Page 46: Cleaning The Bladeholder

    Avoid cutting yourself with the tip of the blade or damaging the blade while cleaning. The tip of the blade holder may get cluttered with fragments of film. Remove these debris if needed. FAST SKIN - OPERATION MANUAL...
  • Page 47 Maintenance: managing available materials Open the menu and choose «Materials» Scroll through the list and switch the desired materials on Press on the «Save» button in the upper right corner FAST SKIN - OPERATION MANUAL...
  • Page 48: Contacting Support

    Maintenance: contacting support Open the menu and choose «Request support» Fill-in your details and describe the issue at hand. Press «Send» to send the support request. We will get back to you ASAP. FAST SKIN - OPERATION MANUAL...
  • Page 49: Troubleshooting

    Troubleshooting...
  • Page 50 “The machine says it is missing an internet connection.” Make sure WiFi configuration is correct, that WiFi signal is strong enough and that your network setup isn’t blocking access to sbs-fast-skin.appspot.com – Fast Skin cloud server. If you are using a SIM card, make sure the signal is strong enough and that your data plan is valid.
  • Page 51 I don’t hear the machine making any sounds starting up.” Turn the machine off. Unplug it from the mains and disconnect the Power Supply from the machine. Wait for two minutes, then reconnect everything and try turning the machine on again. FAST SKIN - OPERATION MANUAL...
  • Page 52 Check the tip of the blade – it should be sharp and pointy. If the tip is bent or doesn’t have an expressly triangular shape, replace it with a new blade and calibrate the machine. FAST SKIN - OPERATION MANUAL...
  • Page 53 If you are absolutely sure the model is the same, take a picture of the inconsistency and email it to fastskinservice@sbsmobile.com together with the exact model of the phone and the serial number of the machine. FAST SKIN - OPERATION MANUAL...
  • Page 54 Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FAST SKIN - OPERATION MANUAL...
