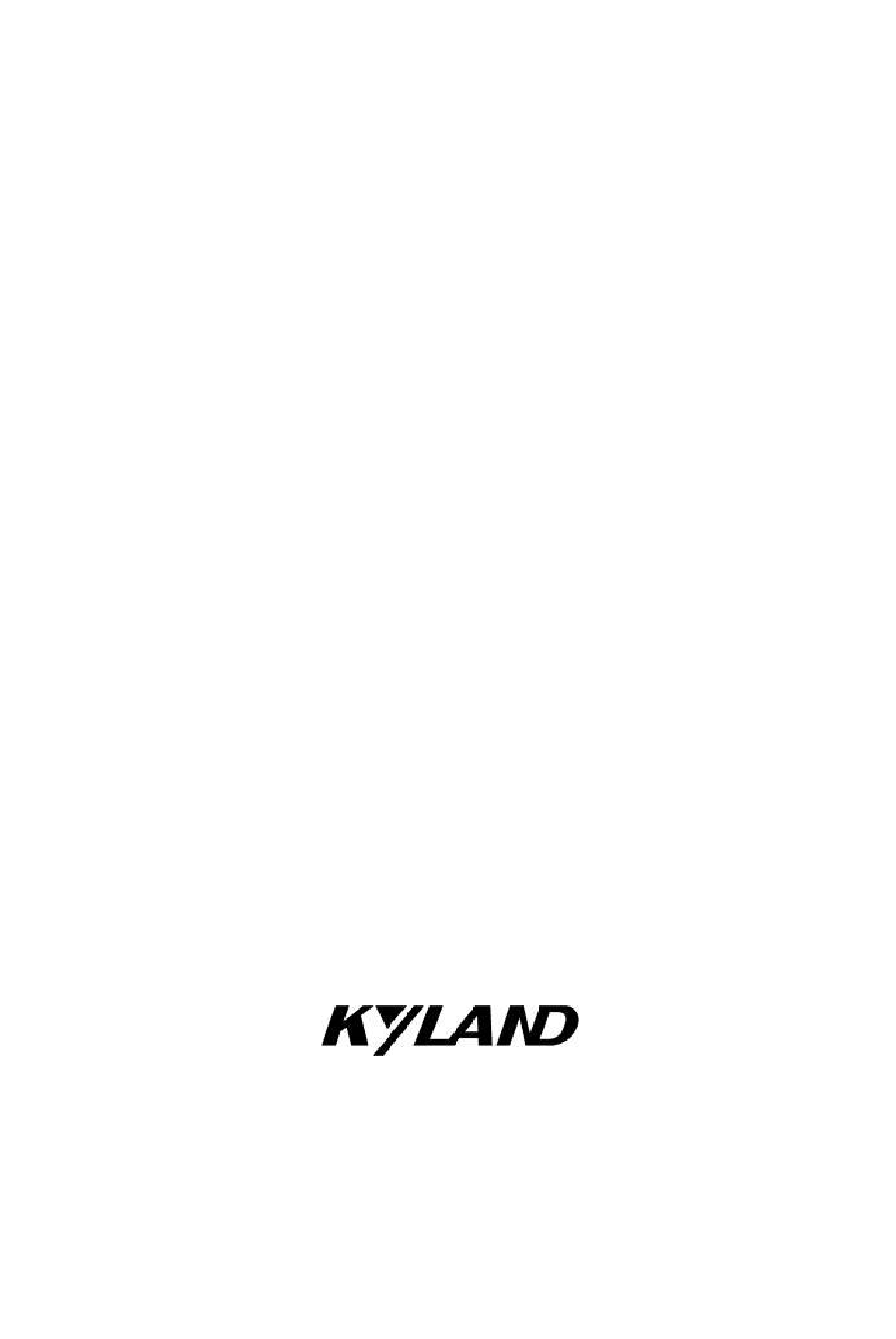

- Page 1 KPS3102 Serial Server User Manual Issue Date: October, 2020 Version: V1.0 Number: 112028251...
- Page 2 KPS3102 Serial Server User Manual Disclaimer: Kyland Technology Co., Ltd. tries to keep the content of this manual as accurate and as updated as possible. This document is not guaranteed to be error-free, and we reserve the right to amend it without notice to users.
-
Page 3: Table Of Contents
Conents 1 Product Introduction ..................1 1.1 Summary ......................2 1.2 Package List ....................2 1.3 Product Characteristics ..................2 2 Accidence ..................... 3 2.1 Connect Power Supply ..................4 2.2 Connect Serial Device ..................4 2.2.1 Set RS-485 terminal resistor ..............4 2.2.2 Connect to host or network ................ -
Page 4: Product Introduction
1 Product Introduction 1 Product Introduction Welcome to use Kyland KPS3102 serial port server product, this serial port server has the function of power redundancy, it can realize the conversion between network port data and serial port data. KPS3102 serial port server has dual power input, serial port built-in 2 KV electromagnetic isolation protection. -
Page 5: Summary
1 Product Introduction 1.1 Summary KPS3102 serial server is a serial port server device with redundant power supply function, which can realize the conversion between TCP/UDP protocol and RTU protocol. The device serial port provides 2KV serial port isolation protection, each RS-232/RS-422/RS-485 serial port can be configured as serial port operation mode and different baud rate separately, and allows these two types of network to be integrated through one network port of serial port server. -
Page 6: Accidence
2 Accidence 2 Accidence We will provide KPS3102 serial server basic operation instructions for installation in this chapter, including the following: Connect power supply Connect serial device RS-485 terminal resistor Connect to host or network LED indicators ... -
Page 7: Connect Power Supply
2 Accidence 2.1 Connect Power Supply KPS3102 serial server connect power supply through terminal block. Connect power supply loosen or remove the screws on the power terminals; Connect 12-48VDC power cord to power terminals； Tighten the screws on the power terminals. Caution: The serial server device has no power switch. -
Page 8: Led Indicator
2 Accidence the two green LEDs on the network port will shine, so as to determine whether the serial port server has been connected to the network and the rate of access to the network. KPS3102 serial server has a network port and a mac address, users can change the IP address, mac address cannot be changed. -
Page 9: Dimensions
2 Accidence 2.4 Dimensions Figure 1 KPS3102 (unit: mm) 2.5 PIN Definition 2.5.1 Network interface（RJ45） Figure 2 RJ45 wire number Table 2 RJ45 wire definition MDI-X Signal MDI Signal... -
Page 10: Serial Interface（Db9 Male
2 Accidence No definition No definition 4，5， 7，8 2.5.2 Serial interface（DB9 male） KPS3102 serial server uses DB9 serial port interface to connect to serial device. Each serial port supports three serial interfaces: RS-232, RS-422, RS-485, it can be selected by software Figure 3 DB9 wire number Table 3 DB9 wire definition Pin RS-232... -
Page 11: Specification Parameters
2 Accidence Figure 4 Power input 表 4 Power PIN Description PWR1 connect to positive PWR1 PWR1 connect to negative PWR2 connect to positive PWR2 PWR2 connect to negative 2.6 Specification parameters Network interface Network interface: 2 Rate: 10/100Mbps, Auto MDI/MDIX Connector: RJ45×1 Protocol: TCP/UDP Isolation Protection: Built-in 1.5KV... - Page 12 2 Accidence Serial signal RS-232: TxD, RxD, RTS, CTS, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485: Data+, Data-, GND Software Security configuration protocol: HTTPS、SSH2 LED indicator System: PWR1, PWR2, Run Serial port: S1-T/R Network: SPEED，ACT/LINK (RJ45) Button Reset: support “recovery factory configuration” Mechanical Enclosure: Aluminum Weight: 165g...
- Page 13 2 Accidence EN 55024 EMS: IEC61000-4-2(ESD): ±6kV(contact), ±8kV(air) IEC61000-4-3(RS): 10V/m (80MHz–2GHz) IEC61000-4-4(EFT): Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge): PowerPort: ±1kV/DM, ±2kV/CM; Data Port:±1kV IEC61000-4-6 (CS): 10V(150KHz-80MHz) Mechanical standards: Vibration: IEC60068-2-6 Impact: IEC60068-2-27 Free fall: IEC60068-2-32 Warranty Warranty: 5 years...
-
Page 14: Web Console Configuration
3 Web Console Configuration 3 Web Console Configuration KPS3102 serial server has a web page, can open the web page through the browser to set the serial server device, such as Firefox browser, IE browser. in this chapter, we will introduce web console function groups and function definitions. -
Page 15: Login
3 Web Console Configuration 3.1 Login Connect to KPS3102 serial server web console: open the browser and enter the IP address of the device. Default IP address: E1:192.168.0.249 Figure 5 Account Login Interface Default login username: root, login password: root. Enter user name and password and click "login"... -
Page 16: Network Configuration
3 Web Console Configuration Figure 6 homepage information 3.3 Network configuration Click Homepage >> Network >> Interface >> Interface: Interface -> Interface configuration, relevant network parameters of the device can be set in this page. The network mode, IP address and subnet mask can be set. After all parameter configuration are complete, click “apply”... -
Page 17: Serial Server Configuration
3 Web Console Configuration E1:192.168.0.249 IP address of serial server. IPv4 address (Or other 32 digits) 255.255.255.0 To identify server belongs to A, B or C Subnet mask (Or other 32 digits) network. 3.4 Serial server configuration Click Homepage >> Serial server >> Serial port configuration, serial port and network port related parameters of serial server can be set in this page. -
Page 18: Serial Port Data Statistics
3 Web Console Configuration Band rate 300bps～460800bps 5，6，7, 8 Data bit Stop bit Parity None, Even, Odd, None, XON/XOFF Flow control Interface RS-232, RS-485, RS-422 Protocol TCP or UDP Server, client Mode IP address The server IP should be filled in if the device is client mode Port number for device communication Port Status... -
Page 19: Restart
3 Web Console Configuration “Select File” button, select the upgrade file, and then click the “Upgrade” button to upgrade. After the upgrade is successful, restart the serial server and the system will start with a new firmware Figure 10 System upgrade 3.7 Restart The other parameters modification except firmware upgrade, click "Apply", parameters immediately effective, no need to restart the device. -
Page 20: Exit
3 Web Console Configuration 3.8 Exit To be safe, please exit the Web program after the web console runs out to prevent those who do not have access to operate the serial server device. The “Exit” button is located in the upper right corner of the interface. Figure 8 Account exit button Tip: the working mode of this device is transparent mode;...
