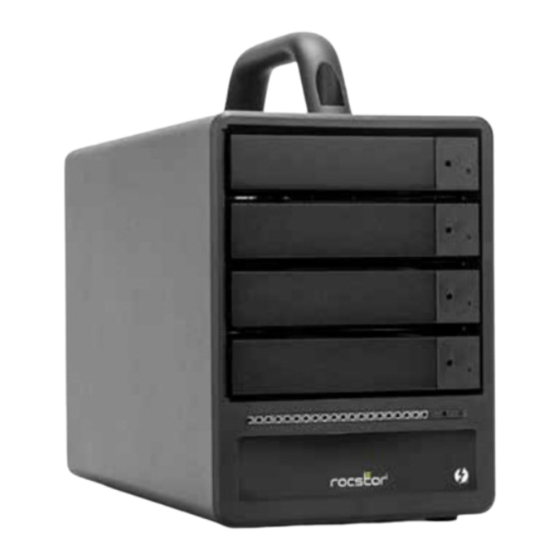

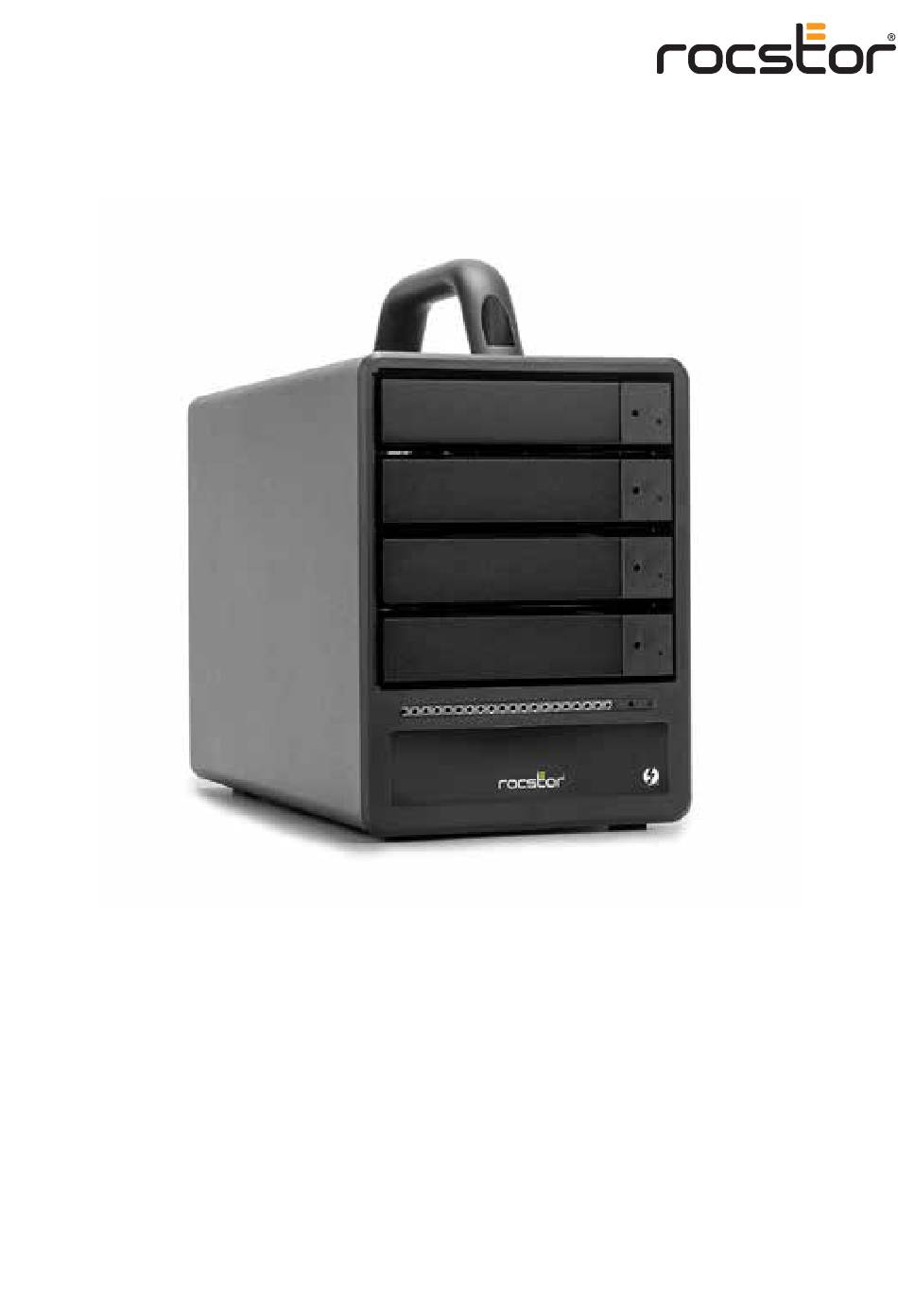

- Page 1 Rocpro™ T33 Up to 56TB Thunderbolt™ 3 storage. User Manual...
-
Page 2: Table Of Contents
Rocpro T33 User Manual 1. Environmental Requirements ..........1 2. Product Appearance and Packaging Content ....1 3. Hardware Requirements and Precautions ......2 4. Hardware Installation ............3 5. The MSU, and easy RAID configurator ......4 6. Description of HDD Indicators ...........10 7. Connect with other devices ..........10... -
Page 3: Environmental Requirements
Thank you for choosing the Rocstor product. This manual will familiarize you with the Rocstor Rocpro T33 product. We recommend reading through this manual before using the Rocpro T33 product. The information provided in this manual was checked before publication, but the actual can be found at www.Rocstor.com... -
Page 4: Hardware Requirements And Precautions
6. It is highly recommended for users to back up important data contained within the drives of the Rocpro T33 on a regular basis or whenever the user feels necessary to a remote or a separate storage device. Rocstor will not be responsible for any lost of data caused during the use of the... -
Page 5: Hardware Installation
Select the appropriate cable from the accessories pack depending on the interface. Connect the Rocpro T33 backplate connection port to the corresponding port on the computer. Step 7 Connect the AC Power cable to the Rocpro T33. Plug the connector into the power socket then start the system. Step 8 booting. -
Page 6: The Msu, And Easy Raid Configurator
Please visit the o cial website - Download page ( https://rocstor.com/Products/rocpro-t33/ ) to download Marvell Storage Utility (MSU). After Rocpro T33 connected to the computer and install the MSU, multiple RAID modes can be set up through the MSU. A. Set up RAID Mode(Taking RAID 0 as an example): 1. - Page 7 3. Click at the selected HDDs. 4. Select【RAID 0】.
- Page 8 5. Enter the Storage Name ,click 【Initialize】 option is set to 【Fast Initialization】, and setup 【Stripe Size】. Note 1 • No Initialization: without initialize VD • Fast Initialization: fast initialize VD Note 2 • Stripe Size, the greater the value, the better the performance of large amounts of data transmission (such as image editing, video editing, etc.) •...
- Page 9 7. After 【OK】, you get a New_VD. P.S. VD is the abbreviation of Virture Disk. 8. To initiate and format HDD/SSD at OS level. 9. After completing the format, you couyld start using your GT4670-TB3.
- Page 10 B. Delete a RAID for a new RAID setting 1. Click 【Operation】 and 【Delete】. 2. Click 【OK】 3. Click 【OK】 at the second warning message.
- Page 11 4. Click 【OK】 at the third warning message. 5. It returns to JBOD mode, you just have to format every individual HDD or just to set up another RAID. Please refer to “STARDOM All TB2&TB3 RAID 5 Storage MSU User Manual.pdf” for the RAID setting.
-
Page 12: Description Of Hdd Indicators
Two System Connections: A. Rocpro T33: Let its TB A port connect to Host (PC/Workstation/Server), TB B port to other Device (USB or TB), and mDP (Mini Display) port to monitor. -
Page 13: Frequently Asked Questions
8. Frequently Asked Questions 1. If the Rocpro T33 is turned on, but the Thunderbolt™ cable is not connected, the fan and power status lights will both be in stopped/hibernation mode. The fan and power status light will not come on until the Thunderbolt™... - Page 14 5. How to install software on macOS: A. Unzip the downloaded tarball and execute msu.dmg. B. Get the installation program MSUSetup.pkg, execute the program, and enter the installation process. C. Follow the flow instructions and actual conditions to complete the installation.
- Page 15 6. There are three ways to start the program: A. Find MarvellTray in the folder "Applications", hit the point and execute the program. B. Hit the Launchpad on the Dock and hit the MarvellTray icon to execute the program. C. Using Spotlight's search function, type MarvellTray execute the program.
- Page 16 7. The new macOS 10.13 (High Sierra) requires user approval before loading new, third-party kernel extensions: A. Execute MarvellMvumi.pkg. C. Open System Preferences, and go to Security & Privacy. D. Click on the "Allow" button. Note: If you can not click the allow button, click the lower left corner of the lock icon, and enter the administrator password.
- Page 17 Limited Warranty Period. The Limited Warranty Period starts on the date of purchase or lease from Rocstor. Your dated sales or delivery receipt, showing the date of purchase or lease of the product, is your proof of the purchase or lease date.
- Page 18 The buyer is obligated to securely and safely package(s) the product, preferably in the original packing materials, WITH THE RMA number, and deliver it together with a copy of the original purchase receipt and a description of the problem to the Rocstor home o ce. Buyer is responsible for the product until it is received by Rocstor.
- Page 19 Where available, the Rocstor Replaceable Parts program ships approved replacement parts directly to you to ful ll your warranty. This will save considerable repair time. After you call the Rocstor Technical Support Center at 888.877.8777 a replaceable part can be sent directly to you. Once the part arrives, call the Rocstor Technical Support Center.
- Page 20 Federal, State & Local government sales information: government_sales@Rocstor.com Resellers/Business Development/OEM Partners All Channel National and International Resellers, VARs, Consultants … contact Rocstor Channel Sales: call: +1 (818) 727-7000 Email: reseller_info@Rocstor.com COPYRIGHTS © 2019 Rocstorage, Inc. This Manual is protected by United States copyright law and may not be reproduced, distributed, transmitted, displayed, published or broadcast without the prior written permission of Rocstorage, Inc.
