Summary of Contents for Rocstor Rocpro U32
- Page 1 ROCPRO™ U32 ROCPRO™ U32 USB 3.0 - eSATA USB 3.0 - eSATA Quick Installation Guide Quick Installation Guide ROCPRO™ U32 Series User Manual...
-
Page 2: Table Of Contents
Products speci cations are subject to change without notice. If you have any questions regarding Rocpro U32, or you would like to know the latest product information, user manual update, or rmware update, please contact Rocstor or visit www.rocstor.com for further information. -
Page 3: Package Contents And Product Views

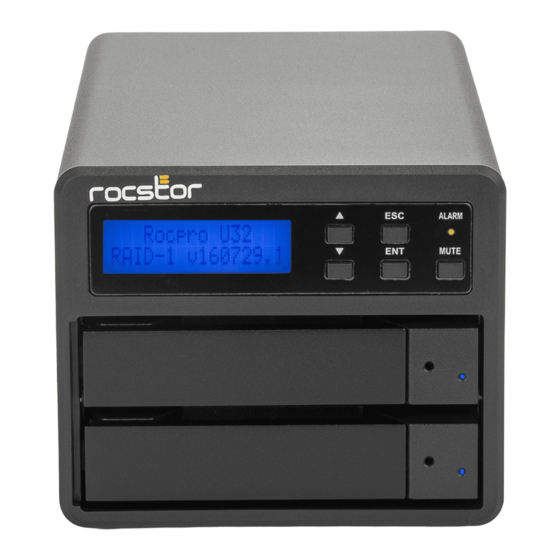

1. Package Contents & Product Views AC Power cable USB 3.0 Cable Quick Installation Quick Installation Guide e SATA Cable Screws and Keys Rocpro U32 Rocpro U32 "Supplied with Enclosure Only" ESC button Power/Alarm indicator Scroll button LCD Display Panel Mute button... -
Page 4: Operating Information
RAID 0 mode. 9. It is highly recommended for users to back up important data. Rocstor will not be responsible for any lost of data caused during the use of the unit or the recovery of the data lost. -
Page 5: Hardware Installation
4. Hardware Installation Please follow the instructions below to complete the hardware installation: Step 1: Open the package and take out the product making sure that all contents are not damaged or missing. Should you nd any damage or missing contents, please contact your supplier immediately. Step 2: Place the system on a stable surface. -
Page 6: How To Switch The Raid Mode
Pri HDD : OK Rocpro U32 RAID-1 vxxxxxx.x Sec HDD : OK System initializing Normal operational state When the U32 has completed initializing, your computer’s operating system should recognize the device automatically. Please follow the formatting instructions given by the operating system to format the drives. -
Page 7: Hard Drive Replacement Instructions
6. Hard Drive Replacement Instructions In normal operational state, if the LCD displays “Pri : X” or “Sec : X” and the audio alarm activates, this would indicate that the hard drive may be malfunctioning. When this happens, you may choose to disable the audio alarm by pressing the MUTE button located at the front of the system and continue to operate the system normally. -
Page 8: System Temperature Overheat And Fan Failure Management
MUTE button to disable the audio alarm. At the allowed operational state, re-start the system to double check and see if the problem is still present. If the problem persists, please turn o the system and contact ROCSTOR tech support for further assistance. -
Page 9: Led Visual Status Indicator De Nitions
10. LED Visual Status Indicator De nitions Power/Alarm indicator : When the Power/Alarm indicator lights green, this means the system power is on. When the Power Alarm indicator lights amber, this means the system temperature has exceeded its limitation or the system fan has malfunctioned. Hard drive status indicator : When the hard drive status indicator is o , this means the drives are idling. -
Page 10: Precaution Befor Application
• Rocstor shall not be held liable for loss of data or the restoration or recovery of data on the device. Please see complete limited Warranty Information in the User’s Manual or on the Rocstor website (www.rocstor.com) for further details. - Page 11 Limited Warranty Period. The Limited Warranty Period starts on the date of purchase or lease from Rocstor. Your dated sales or delivery receipt, showing the date of purchase or lease of the product, is your proof of the purchase or lease date.
- Page 12 The buyer is obligated to securely and safely package(s) the product, preferably in the original packing materials, WITH THE RMA number, and deliver it together with a copy of the original purchase receipt and a description of the problem to the Rocstor home o ce. Buyer is responsible for the product until it is received by Rocstor.
- Page 13 Where available, the Rocstor Replaceable Parts program ships approved replacement parts directly to you to ful ll your warranty. This will save considerable repair time. After you call the Rocstor Technical Support Center at 888.877.8777 a replaceable part can be sent directly to you. Once the part arrives, call the Rocstor Technical Support Center.
- Page 14 Federal, State & Local government sales information: government_sales@Rocstor.com Resellers/Business Development/OEM Partners All Channel National and International Resellers, VARs, Consultants … contact Rocstor Channel Sales: call: +1 (818) 727-7000 Email: reseller_info@Rocstor.com COPYRIGHTS © 2019 Rocstorage, Inc. This Manual is protected by United States copyright law and may not be reproduced, distributed, transmitted, displayed, published or broadcast without the prior written permission of Rocstorage, Inc.
