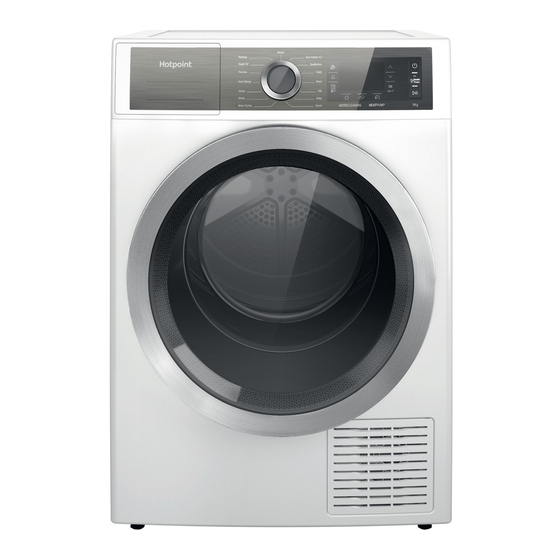

Hotpoint H8 D94WB UK Quick Manual

Quick guide
THANK YOU FOR BUYING A HOTPOINT PRODUCT.
In order to receive a more complete assistance,
please register your product on
www.hotpoint.eu/register
CONTROL PANEL
Programme selection knob
1
On/Off button
2
Start/Pause button
3
Options buttons
Gentle Power
4
Crease Care
5
Cycle End Signal
6
Cycle Options (hold for Settings)
7
Dryness Level
8
Timed Drying
9
Start Delay
10
Navigation buttons and Key Lock
UP
11
DOWN
12
CONFIRM OK (hold for Key Lock)
13
INDICATORS
Cycle phase: Drying -
Empty water tank -
Refer to Troubleshooting section:
FIRST TIME USE
When starting the appliance the first time, the control panel will
automatically show the set language menu. The UP and DOWN
buttons are used to show the languages available in the
machine. Press the OK button to confirm. The machine cannot
be used without having selected the language.
Make sure that the water tank is correctly inserted.
The dryer must be installed in a room with a temperature
ranging between 5°C and 35°C to ensure proper operation.
Before using the dryer make sure it has been in an upright
position for at least 6 hours.
DAILY USE
Doing this will keep your machine working at its BEST:
- remember to empty your water tank after each drying cycle.
- remember to clean your filters after each drying cycle.
Refer to the Care & Maintenance section.
1. Plug the dryer into the power supply socket.
2. Open the door and load garments;
clothing labels and the max loads indicated in the programme
section. Empty pockets. Make sure garments do not get caught
between the door and/or the door filter. Do not load items that
are dripping wet. Do not tumble dry large, very bulky items.
3. Close the door.
4. Press the "On/Off" button.
5. Select the most suitable programme for the type of fabric in that
load.
6. Select the options, if necessary.
7. Press the "Start/Pause" button to begin drying.
8. At the end of the drying cycle, a buzzer will beep. An indicator on
the control panel signals the end of the cycle. Pull the load out
immediately to prevent the formation of creases on laundry.
9. Turn the machine off by pressing the "On/Off" button, open the
door and pull the clothing out. If the machine is not switched off
manually, after about a quarter of an hour from the end of the
cycle , the appliance turns off automatically to save energy.
Note that some programme/option accords with "Crease Care"
system. This means that for some hours, after the end of the
drying cycle, the drum rotates at regular intervals to prevent the
formation of creases.
In case of power failure, it is necessary to press the "Start/Pause"
button to restart the cycle.
1
Cool Down - END End of Cycle
Clean secondary filter -
Failure call After-sales Service -
always refer to instructions on
Before using the appliance read the Safety Instructions carefully.
5
6
7
Clogged door filters -
Demo Mode
DEMO
Eco Monitor
This indicator shows the energy consumption level according to
the programme and the options set. The consumption is
proportional to the lines on the display, by the ecomonitor icon.
OPENING THE DOOR DURING THE CYCLE
Laundry can be checked while the drying cycle runs and any
garments already dry can be removed, while drying continues for
the remaining items. After closing the door, press the "Start/Pause"
button to resume machine operation.
Keep the door closed until the cycle end to save time and energy.
NAVIGATION
The "UP" and "DOWN" buttons are used to navigate the available
menus.
• Press the OK button to confirm the selection.
• Press the Option button at the
display, to return to the previous screen.
If no selection is confirmed, after about 2 minutes, the display
return to the main screen.
SETTINGS
To access the Settings menu, press and hold the relevant button for a
few seconds.
• Set language shows the available languages on the display.
• Sounds allows to enable or disable the sounds (some sounds, as
warnings, will remain active anyway).
• Brightness allows to modify the display brightness.
• Factory Default allows to reset the default settings. After having
selected the setting, press and hold the OK button for a few
seconds.
*MAX LOAD 9 Kg
CARE LABEL
Always check the care labels, especially when placing garments in
the tumble dryer for the fi rst time. Below are the most commonly
used symbols:
May be tumble dried.
Do not tumble dry.
Tumble dry – high heat.
Tumble dry – low heat.
1:35
SYNTHETICS
-:--
-:--
EXTRA
8 9 10
Autoclean - Eco Monitor
symbol, where present on the
)
(Dry load
EN
2
11
12
4
13
3
