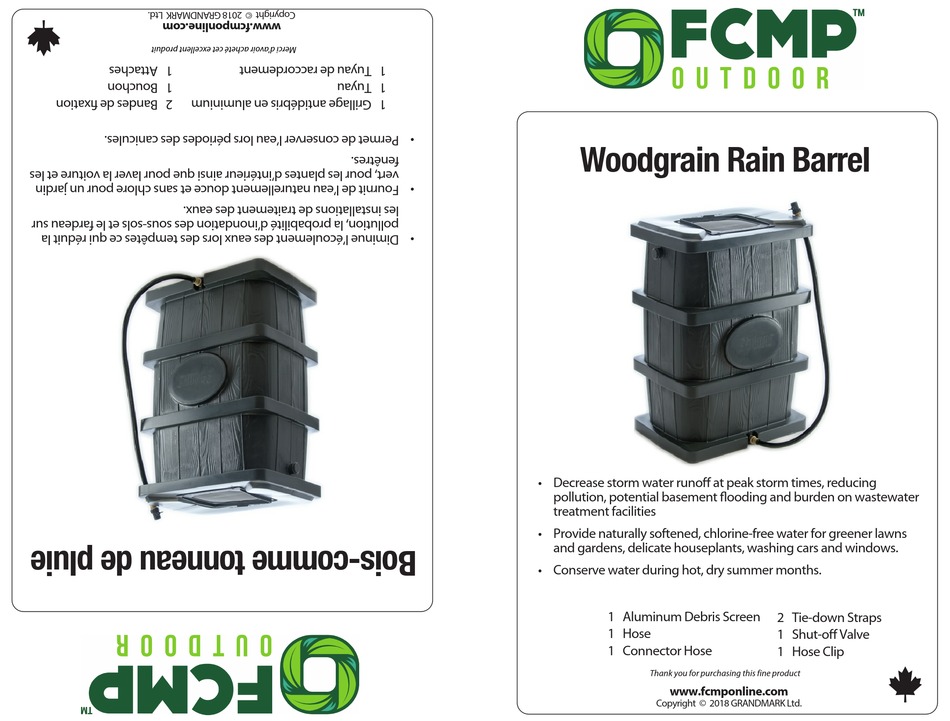

Woodgrain Rain Barrel

• Decrease storm water runoff at peak storm times, reducing

pollution, potential basement flooding and burden on wastewater

treatment facilities

• Provide naturally softened, chlorine-free water for greener lawns

and gardens, delicate houseplants, washing cars and windows.

• Conserve water during hot, dry summer months.

1 Aluminum Debris Screen

1 Hose

1 Connector Hose

Thank you for purchasing this fine product

www.fcmponline.com

2 Tie-down Straps

1 Shut-off Valve

1 Hose Clip

Need help?

Do you have a question about the Woodgrain Rain Barrel and is the answer not in the manual?

Page 1 Woodgrain Rain Barrel • Decrease storm water runoff at peak storm times, reducing pollution, potential basement flooding and burden on wastewater treatment facilities • Provide naturally softened, chlorine-free water for greener lawns and gardens, delicate houseplants, washing cars and windows.
Page 2 Assembly and Installation Instructions ➃ ➂ ➅ ➄ ➀ ➃ hose clamp will lock in place insert screen with leading edge tucked under front rim of barrel ➄ opening fit hose end over spigot, twist ➁ and lock in place with front edge inserted, push back edge of screen downward ➅...
Page 3 Allow 5 cm (2 in) clearance between downspout elbow and Spout and Debris Screen Shortened downspout Remove elbow and cut downspout to size ➆ Before positioning the barrel, you will need to shorten the current downspout to allow water to exit into the barrel. Remove elbow from bottom of downspout, measure and cut the downspout so that it will be 5 cm (2 in) above the barrel screen once elbow is reinstalled.
Page 4 Linking Multiple Barrels In-Series: Please note that the rain barrel has two in-series spigots to the left and right of the back of each barrel. This allows for unlimited barrel arrangements. 1. To link two barrels, assemble each barrel as described in the previous panels.
