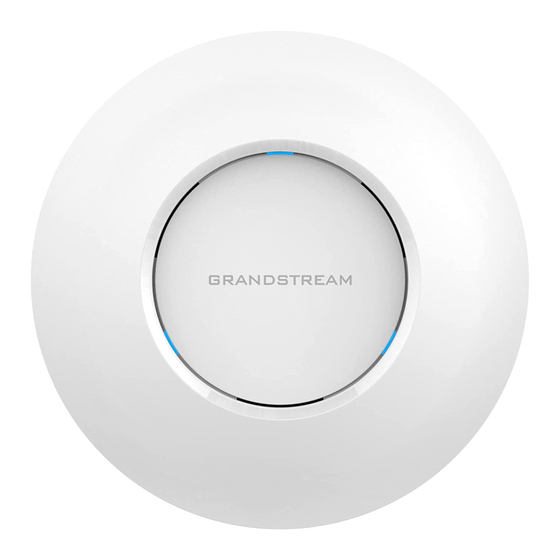

Grandstream Networks GWN7615 Quick Installation Manual
802.11ac wave-2 3×3:3 wi-fi access point
Hide thumbs
Also See for GWN7615:
- Quick installation manual (30 pages) ,
- User manual (144 pages) ,
- User manual (112 pages)
Table of Contents
Advertisement
Quick Links

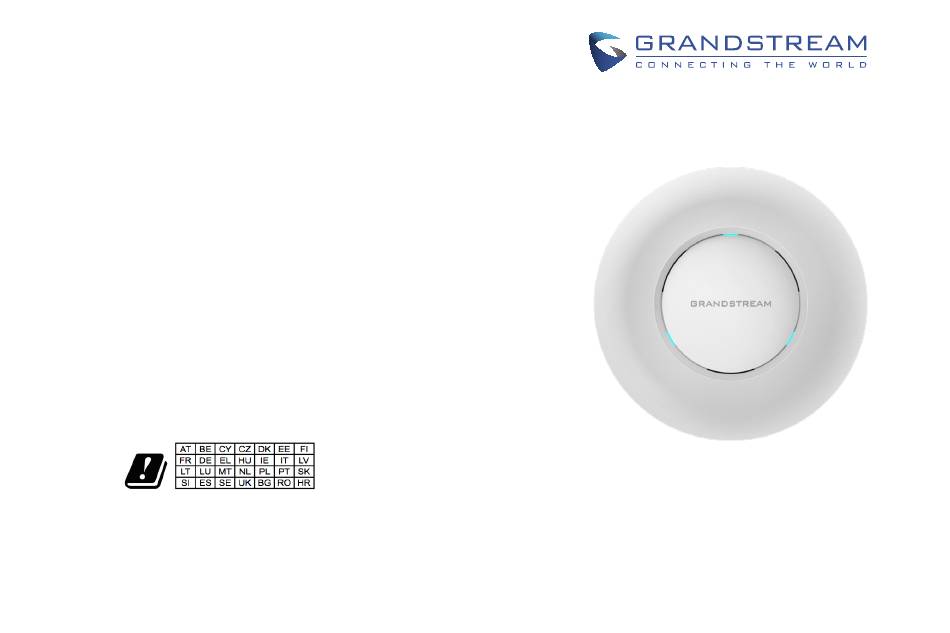

Grandstream Networks, Inc.
126 Brookline Ave., 3rd Floor
Boston, MA 02215. USA
Tel : +1 (617) 566 - 9300
Fax: +1 (617) 249 - 1987
www.grandstream.com
In all EU member states, operation of 5150
- 5350 MHz is restricted to indoor use only.
For Warranty and RMA information, please visit www.grandstream.com
GWN7615
802.11ac Wave-2 3×3:3 Wi-Fi
Access Point
Quick Installation Guide
Advertisement
Table of Contents
Related Manuals for Grandstream Networks GWN7615
Summary of Contents for Grandstream Networks GWN7615
- Page 1 Grandstream Networks, Inc. 126 Brookline Ave., 3rd Floor Boston, MA 02215. USA Tel : +1 (617) 566 - 9300 Fax: +1 (617) 249 - 1987 www.grandstream.com GWN7615 In all EU member states, operation of 5150 802.11ac Wave-2 3×3:3 Wi-Fi - 5350 MHz is restricted to indoor use only.
- Page 2 • Do not power cycle your GWN7615 during system boot up or firm- Step 1: Plug a RJ45 Ethernet cable into the network port of GWN7615. ware upgrade. You may corrupt firmware images and cause the unit Step 2: Plug the other end into the uplink port of the power over Ethernet to malfunction.
- Page 3 4. Connect the power cable and the ethernet cable (RJ45) to the cor- 5. Align the arrow on the GWN7615AP with the arrow on the locking rect ports of your GWN7615. tab of the mounting bracket and ensure that your GWN is firmly 5.
- Page 4 Model: GWN7615 Input: 48V 0.5A POE CAN ICES-3(B)/NMB-3(B) IC: 11964A-GWN7615 FCC ID: YZZGWN7615 WiFi...
- Page 5 Method1: Discover the GWN76XX using its MAC address 1. Locate the MAC address on the MAC tag of the unit, which is on the underside of the device, or on the package. 2. From a computer connected to same Network as the GWN76XX , type in the following address using the GWN76XX’s MAC address on your browser https://gwn_<mac>.local For example, if a GWN76XX has the MAC address 00:0B:82:8B:58:30, this unit can be accessed...
- Page 6 3. The tool will discover all GWN76XX Access Points connected on the network showing their MAC, IP addresses and firmware version. 4. Click on Manage Device to be redirected directly to the GWN76XX’s configuration interface, or type in manually the displayed IP address on your browser. Figure 22: GWN Discovery Tool Use the Web GUI Users can access then the GWN76XX using its WebGUI, the following sections will explain how to access...
- Page 7 WLAN 5250-5350 MHz < 20 dBm; WLAN 5470-5725 MHz < 27 dBm; The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Hereby, [Grandstream Networks, Inc.] declares that the radio equipment type [GWN7615] is in compliance with Directive 2014/53/EU.
- Page 8 Canada Regulatory Information Radio equipment Operation of 5150-5250 MHz is restricted to indoor use only. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
