Robic M903 Instructions

Robic M903 Bright View Timer Instructions
DO NOT USE OUTDOORS.
DO NOT USE AROUND WATER OR IN HUMID ENVIRONMENTS.

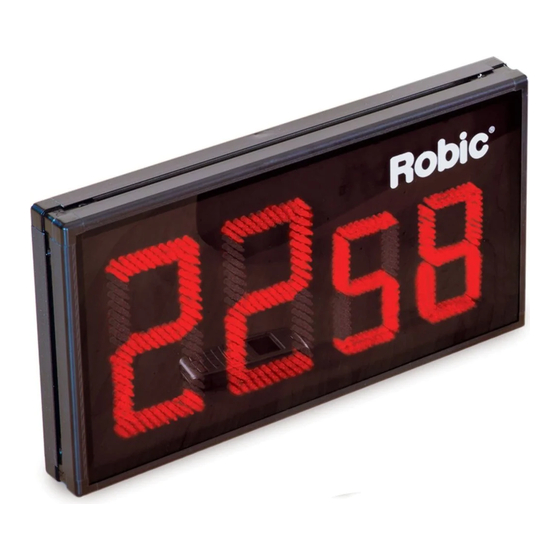

THANK YOU for buying the M903 Bright View Timer. Your purchase brings you a World-Class Timer
with a high resolution LED display which can be seen easily from far away. In order to ensure that you receive the
maximum enjoyment from your timer, BEFORE USING, PLEASE TAKE A MOMENT TO REVIEW THIS
OPERATION GUIDE TO FULLY UNDERSTAND HOW YOUR TIMER WORKS.
The M903 comes with many fine features which include:
Ultra bright 6 inch LED display; easily seen from 100 feet away
Countdown timer from 100 minutes
1/100 second resolution up to/down from 60 seconds
Pause & time out timing with loud completion alarm
Three preset countdown times of 45, 20 & 12 minutes
Count up timer from one second to 100 minutes
Hangs on the wall or sits on a tabletop
Remote control activation
Operates on AC power; adapter included
Important!
The M903 is not water resistant. It should not be exposed to rainfall, casual water or high humidity. It
should also be used within the temperature range of 50-85° F. Exposure to temperatures outside this range will
cause this product to not operate.
The M903 should not be exposed to sunlight over an extended period of time (more than 6 hours). It
should also not be dropped, knocked over or damaged in any manner. It is a very sensitive timepiece and it may
not function properly if it should receive a blow.
Please Note: Dropping or damaging the M903 will void the Product Warranty!
Pushbutton Location and Operation
A: Timer pushbuttons
On/Off Power on, Power off
Power Interface
Parameter setting
Start/pause; Press to increase mins/secs by 1
Silence Alarm; Press to decrease minutes/seconds by 1
Match Code
On/Off
1
Operation of Remote Control
Use the Remote Control to Operate the Robic M903-Here is a summary of
pushbutton functions.
"1" - ON / OFF turns the power & display On & Off.
"2" – SELECT function –SET Countdown Time –RESET to zero or Preset
Countdown Time
"3" - START / PAUSE/ STOP is used to start & stop the timer. Increases
minutes & seconds for the Countdown Timer
"4"— Decreases minutes and seconds for the Countdown Timer
Using the AC Adaptor/Turning On the Timer
Your Robic M903 operates on AC power current. To use the AC adaptor, insert the double pronged cord into the
adaptor unit. Then insert the round plug into the side of the M903 as illustrated above. Insert the power plug into
the AC outlet.
Power the Unit On by pressing and holding the On/Off button on the side of the timer. The LED will illuminate
with 8888. After 2 seconds the display will change to 0000 and the M903 will be in Count up Mode.
You may turn the display on or off by pressing "1" on the remote. Time will continue to run even while the display
is off (disappears).
Match Code on the Remote Control
The remote control needs to be matched with the timer before operation. To change the remote, please clear the
match code first, then match with the timer. The match code operation only can occur during Reset ("0000") status.
To proceed:
a. Remote control match. Please press the
The timer will sound a continuous audible tone (sound like "di"). Press any button on the remote. Then, the "L"
will blink for three times a triple "di" tone emitted from the Timer. This confirms the match code operation is
successful.
b. Clearing the code. Press and hold the
continuous audible tone (sound like "di"). Then, the timer will display "LCL". Press and hold the button for 18
seconds, the sound will silence. This confirms the code was successfully cleared.
Audible Beep Tone and Silent Operation
Pressing button "4" on the remote while not in Set operation will turn the audible completion alarm signal on and
off.
Alarm Armed (i.e. set to go off): "AL on" will show on the screen with a sound of "di".
Silent operation: "AL--" will show on the screen.
"1"
"3"
button on the Timer once. The timer will show "L" on the screen.
button on the Timer for several seconds. The timer will sound a
2
"2"
"4"
