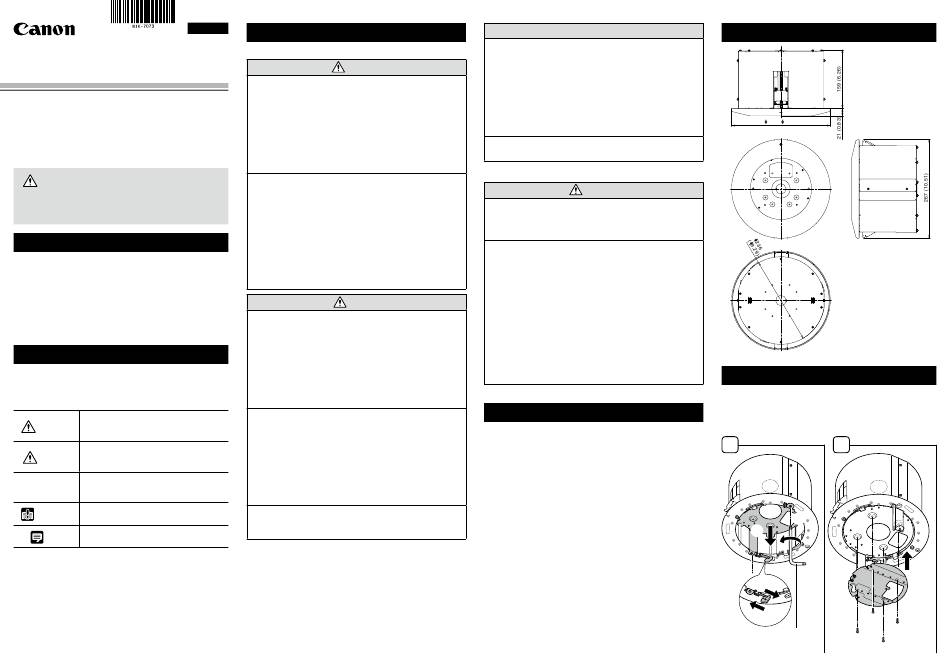

Canon SR11-P-VB Installation Manual

BIE-7073-000
ENGLISH
Plenum Mounting Kit
SR11-P-VB Installation Guide
This camera is for indoor use only. This "Installation Guide"
explains the installation method using the Plenum Mounting Kit
SR11-P-VB. Be sure to read the "Safety Precautions" section
for correct use. After reading this Installation Guide, keep it in a
readily accessible location for future reference.
In addition to this "Installation Guide", please also read the
"Installation Guide" included with the camera.
Request a professional installer for all
Caution
installation work. Never try to install the
camera yourself. Doing so may result in
unforeseen accidents such as dropping
the camera or electric shock.
Check Included Items
This product comes with the following items. If any item is missing,
contact the dealer where you purchased the product.
Plenum Mounting Unit Recessed Mounting Cover
Template Screws (M4) x 4
Installation Guide (This document)
© CANON INC. 2015 Printed in Japan
Symbols Indicating Safety Precautions
This Installation Guide uses the following symbols to indicate
important information the user should know in order to use the
product safely. Explanations are provided for each symbol so that
users will understand the level of importance for each. Be sure to
observe these items.
Failure to follow the instructions
Warning
accompanied by this symbol may result in
death or serious injury.
Failure to follow the instructions
Caution
accompanied by this symbol may result in
injury.
Failure to follow the instructions
Caution
accompanied by this symbol may result in
property damage.
This symbol indicates important or
Important
restricted items.
Contains reference information for
Note
operation or additional explanations.
Safety Precautions
Installation Precautions
Warning
Do not install in the following places:
• Places in direct sunlight, near heat-generating objects, or
subject to high temperatures
• Places near fire sources or flammable solvents (alcohol,
thinner, fuel, etc.)
• Humid or dusty places
• Places subject to oily smoke or steam
• Places subject to sea air
• Confined or enclosed places
Failure to do so may result in fire or electric shock.
Notes on Power Supply
• Only use the dedicated AC Adapter (sold separately) for
AC power.
• Do not set any heavy objects on the power cable (or the
LAN cable for a PoE power supply).
• Do not pull, forcibly bend, scratch, or modify the power
cable (or the LAN cable for a PoE power supply).
• Do not cover or wrap the AC adapter (sold separately) with
cloth or blankets.
Failure to do so may result in fire or electric shock.
Be sure to read the user manual for the dedicated AC
adapter (sold separately) before use.
Caution
For installation or inspection of this camera, consult the
dealer where you purchased the product.
• This installation should be made by a qualified service
person and should conform to all local codes.
• When installing, make sure the surface is capable
of withstanding the total weight of the camera and
accessories, and that it is sufficiently reinforced.
• Periodically check the parts and screws for rust and
loosening, in order to prevent injuries and equipment
damage due to falling items.
• Do not install in unstable places, places subject to
significant vibration or impact, or places subject to salt
damage or corrosive gas.
• Be sure to attach the safety wire when installing the
camera.
• Use only with compatible cameras.
• If a ceiling plate thickness is not between 5.0 and 40.0 mm,
do not use it.
Failure to do so may result in the camera falling or other
accidents.
• Do not touch the edges of the metal parts with bare hands.
• Take care not to catch your fingers when installing.
Failure to do so may result in injuries.
Caution
• Do not turn the camera rotator by hand.
• Do not install on an unstable surface. Also, make sure the
camera is less than ±5° off horizontal.
• After turning off the power, do not turn the power on again
for at least five seconds.
• Take measures to remove static electricity before
performing any procedures.
• If there is condensation, please wait to power on, until the
condensation dissipates.
Failure to do so may result in malfunctions.
• Take care not to damage wiring or piping.
Failure to do so may result in damage to peripheral items.
Precautions for Use
Warning
• If you discover defective conditions such as smoke,
strange sounds, heat or strange odors, immediately stop
using the camera and contact your nearest dealer.
Fire or electric shock may result from continued use of the product.
• If thunder starts, stop installation or inspection etc. and do
not touch the camera or continue connecting the cable.
• Do not disassemble or modify the camera.
• Do not damage the connecting cable.
• Do not spray the camera with water, or otherwise make it
wet.
• Do not insert foreign objects such as water or metal into
the camera.
• Do not use flammable sprays near the camera.
• Do not leave LAN cables, external power supply, or the
sold separately )
power connector for the AC adapter (
connected when the camera is not in use for long periods.
• Do not use flammable solvents such as alcohol, paint
thinner or benzine when cleaning the camera.
Failure to do so may result in fire or electric shock.
Main Specifications
Model SR11-P-VB
Weight Approx. 2400 g (5.30 lb.) (Plenum Mounting Unit, Recessed
Mounting Cover)
The contents of this guide are subject to change without any
prior notice.
External Dimensions
267 ( 10.51)
Unit: mm (in.)
Before installing the camera
Perform camera settings by using the software on the
Setup CD-ROM (please refer to the "Operation Guide").
Attach the Ceiling Plate that is included with the camera
to the Plenum Mounting Unit.
1 2
❶
❸
❶
❷
❹
M4 x 4
Dedicated wrench
Screws
included with camera
(included)
