02
Assembly

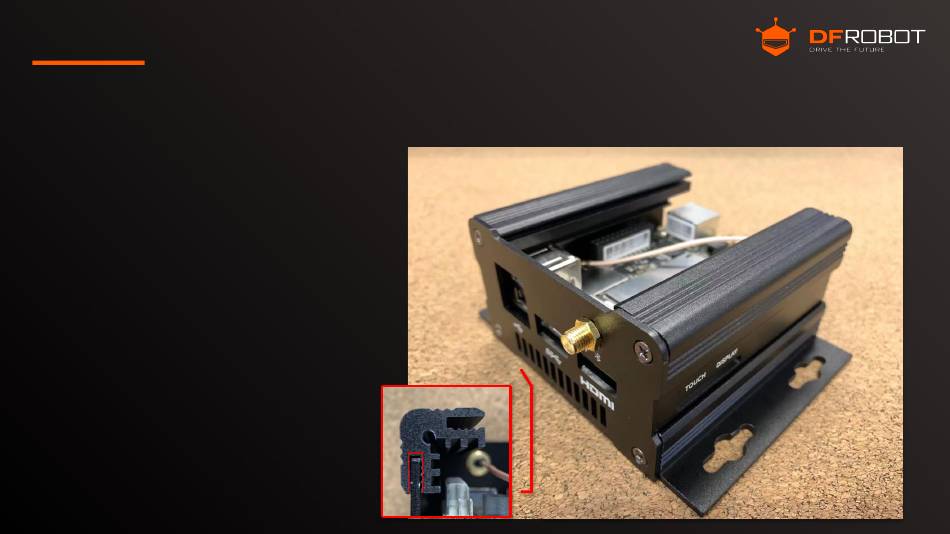

Mount the top frames
The parts used:
• Previously assembled component x1
• L Bracket x2
• M3 cross screw x2
Guide:
1. Align the slot on the L Bracket and the
PIC
side panel, then, insert.
2. Turn the screws tightly.
22
