02
Assembly

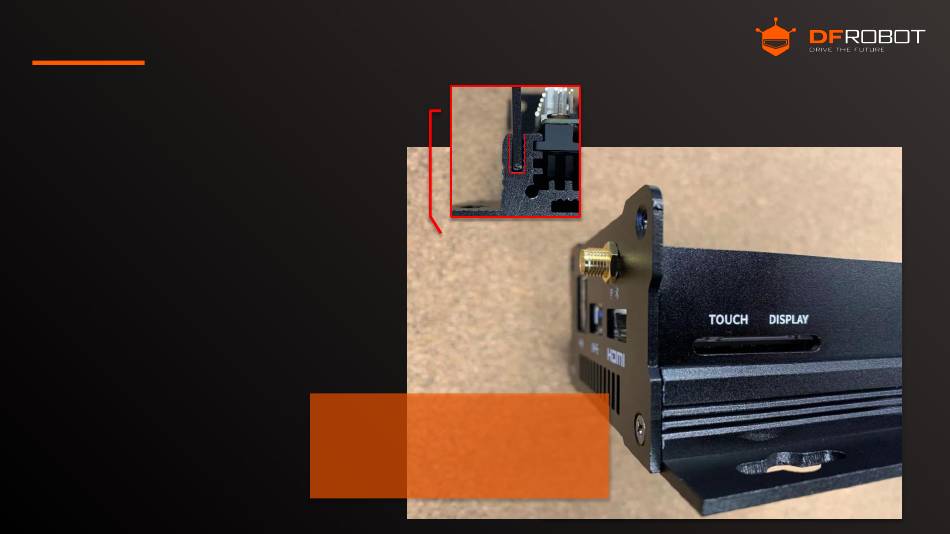

Mount one side of the panel
The parts used:
• Previously assembled component x1
• The side panel x1
Guide:
1. Insert the side panel into the slot.
Note:
If you need to install the screen
and touch panel, please insert
them under this step.
Please check the supplement –
[How to Extend a Touch Display].
Note：Use the panel printed
"Touch"&"Display" to cover the
display interface side of the board.
