- Page 2 Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.
-
Page 3: Theory Of Operation

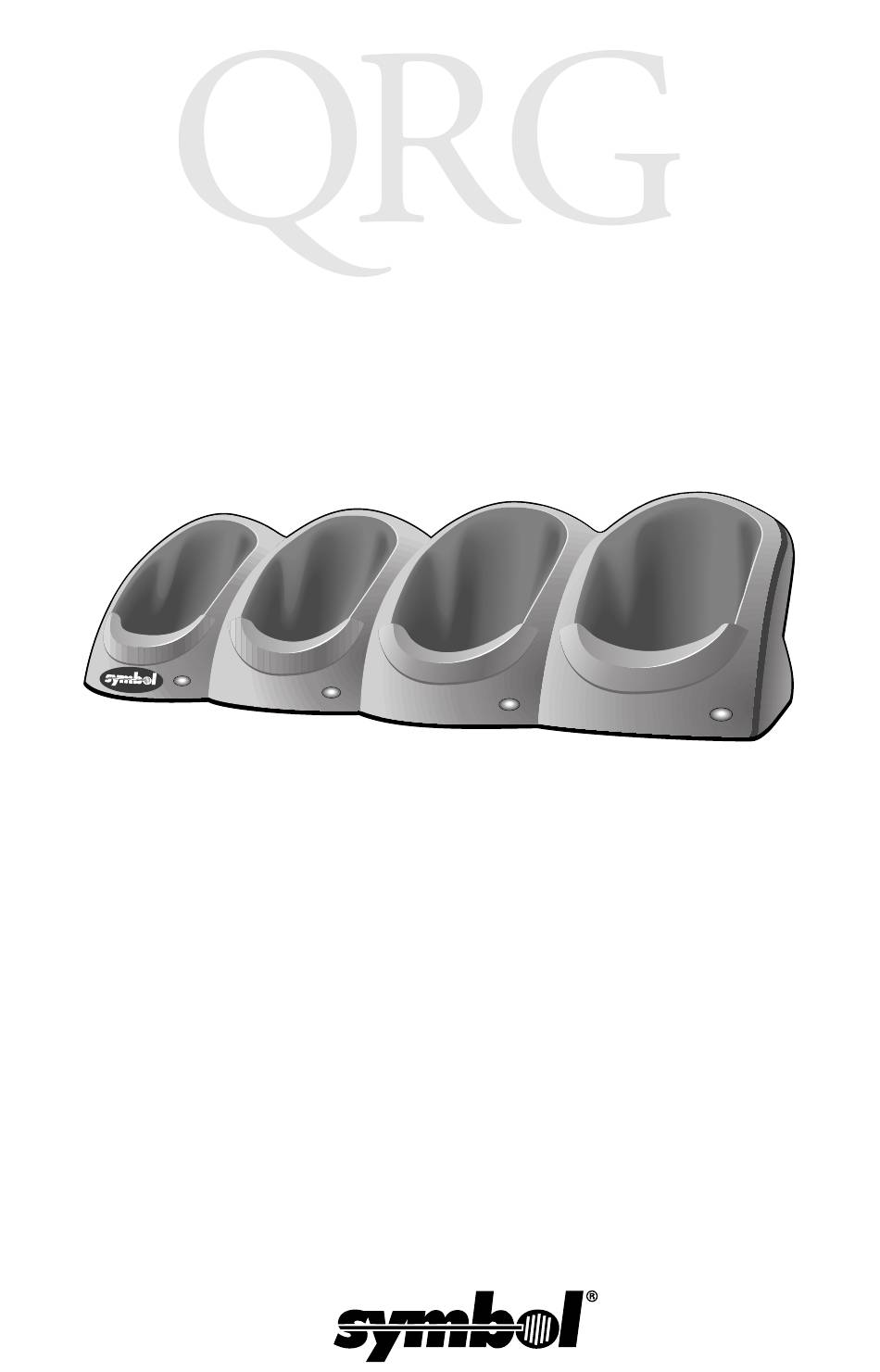

R e f e r e n c e Introduction The CRD1700-4000E 4-slot Ethernet cradle enables up to 4 SPT 1700 terminals to simultaneously communicate with their associated host computers connected to a network. Up to 4 terminals may be seated in the cradle. -
Page 4: Connecting Power
Network HotSync software on the SPT 1700 terminal. See the SPT 1700 Product Reference Guide (p/ n 70-37544-xx) for instructions on the installation of this software. Specific software setup necessary to use the CRD1700-4000E is covered in this document. Unpacking the Cradle The shipping box should include the following: •... - Page 5 The CRD1700-4000E cradle facilitates communication between SPT 1700 terminals and their associated host computers connected to an Ethernet network. As the CRD1700-4000E is an Ethernet device, it must be connected to an Ethernet network which is connected to the same network as the host computers, or an Ethernet network connected to the larger Internet via an Internet gateway.
- Page 6 The single IP address is shared between all slots. To set up for network communications: 1. Ensure there is a DHCP server accessible to the CRD1700-4000E on the subnet. 2. Connect one end of a standard 10 Base-T network cable to the connector labelled Host on the back of the CRD1700-4000E.
- Page 7 Hyperterminal. 2. Connect the modular end to the expansion port of the CRD1700- 4000E. Power up the CRD1700-4000E. Before the power up LED se- quence begins, type ‘a’ from the terminal program to enter the E86Mon. The following screen displays: Welcome to EtherCradle Monitor version x.xx! (?<Enter>...
- Page 8 8. Select option 2, and update the cradle IP address. If your network uses a DHCP server, this IP address must be reserved for this CRD1700-4000E. Your network administrator should be able to assist you. 9. Select option 3, and update the Router IP address. This address...
- Page 9 Type ‘Q’ to quit the program and exit back to E86mon. The fol- lowing screen displays. Program terminated with result code ‘00’ er86mon 14. Cycle power to the CRD1700-4000E so that the latest changes take affect. Network Address Translation (NAT) In both DHCP and static mode, the cradle assigns private IP addresses...
- Page 10 C R D 1 7 0 0 - 4 0 0 0 E E t h e r n e t C r a d l e Terminal Slot IP Address 192.168.1.3 192.168.1.4 Expansion 192.168.1.5 Note: Do not use these IP Addresses on the terminal’s host TCP/ IP services.
- Page 11 R e f e r e n c e Inter-Connecting Cradles Up to four 4-slot CRD1700-4000S serial cradles may be inter- connected (daisy-chained) with the CRD1700-4000E using an RJ-45/ 10 to RJ-45/10 inter-cradle cable (p/n 70349-001). This cable is required for each cradle to be connected.
-
Page 12: Software Configuration
C r a d l e Software Configuration The CRD1700-4000E appears to SPT 1700 terminals inserted into the cradle as a direct-connect PPP service. Therefore, just as you would set up a Palm III terminal to connect to an Internet Service Provider (ISP) like Compuserve or Earthlink, the SPT 1700 terminals must be configured for use with the cradle. - Page 13 Choose Flow Ctl: Automatic, Direct g. Tap “Done.” Creating a CRD1700-4000E Modem Sync Service The SPT 1700 terminal communicates with the CRD1700-4000E via a Modem Sync. The Modem Sync offers many options which must be configured for use with the CRD1700-4000E.
- Page 14 The PC must be configured for proper TCP/IP network op- eration. The HotSync Process Once the CRD1700-4000E is properly connected, data communication between an SPT 1700 terminal and the host computer can take place. When a terminal is inserted in the cradle, the cradle detects its presence and attempts to initiate the process on the terminal.
-
Page 15: Battery Charging
To remove the terminal, pull it straight up from the slot. Battery Charging The CRD1700-4000E can also be used to recharge the battery in the SPT 1700 Series terminal. All four slots can be used to simultaneously recharge the batteries on four terminals. -
Page 16: Indicator Lights
DHCP service failed. Connect a properly configured DHCP server or DHCP relay agent to the subnet, and power cycle the CRD1700-4000E, or wait 10 minutes for a DHCP configuration retry. Or: Ethernet link is down. Make sure the ethernet cable is connected to an active hub. -
Page 17: Regulatory Information
Q u i c k R e f e r e n c e Symptom Cause Suggested Action The cradle’s LEDs The unit could not Connect the unit to an Ethernet net- are flashing red. configure itself, or it work with a correctly functioning has lost its lease on DHCP server. - Page 18 C R D 1 7 0 0 - 4 0 0 0 E E t h e r n e t C r a d l e Applicable Standards • EN 55 022 - Limits and Methods of Measurement of Radio Interference Characteristics of Information technology Equipment •...
- Page 19 This warranty is provided to the original owner only and is not transferable to any third party. It shall not apply to any product (i) which has been repaired or altered unless done or approved by Symbol, (ii) which has not been maintained in accordance with any operating or handling instructions supplied...
- Page 20 9-1-320-39-09 Sweden 84452900 Latin America Sales Support 1-800-347-0178 Inside US +1-561-483-1275 Outside US Europe/Mid-East Distributor Operations Contact local distributor or call +44 208 945 7360 72-39472-01 Revision B — August 2000 Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742-1300...
